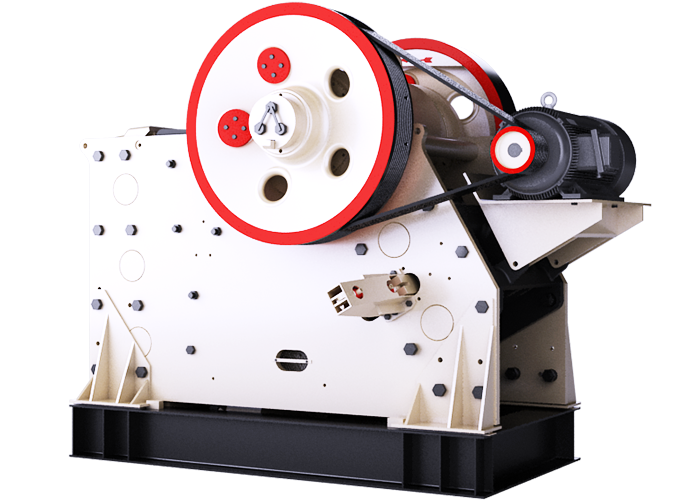

Jaw Breaker
Brand :ZHUOYUE
Product origin :China
Delivery time :one month
Supply capacity :Monthly output is twenty units
A jaw crusher more fine crusher equipment, in stone production line is mainly used for crushing operation, and jaw type crusher for cooperative broken. Using the latest manufacturing technology, unique structure design, is a new type of high efficiency crushing equipment. Can be broken into the material size no more than 500mm, the compressive strength is not more than 350Mpa of all kinds of materials, with a large crushing ratio, high crushing efficiency, product strength uniform, easy maintenance, and broken material is a cubic particle, etc.. Widely used in building materials and ore crushing, railway, highway, energy, transportation, energy, cement, mining, chemical and other industries used to in crushing materials. The size of its discharging grain size can be adjusted, and the size of the broken specification is varied.
Main Structure and Working Principle
| Model | Feed Opening Size (mm) | Max.Recommended Feed Size (mm) | Discharge Port (mm) | Motor Power (kw) | Capacity (t/h) | Weight (t) |
| ZC80 | 800×510 | 420 | 40-175 | 75 | 65-365 | 9.5 |
| ZC96 | 930×580 | 480 | 60-175 | 90 | 120-410 | 11.9 |
| ZC100 | 1000×760 | 630 | 70-200 | 110 | 140-510 | 23.5 |
| ZC106 | 1060×700 | 580 | 70-200 | 110 | 165-520 | 17.1 |
| ZC116 | 1150×800 | 650 | 70-200 | 132 | 180-540 | 21.5 |
| ZC120 | 1200×870 | 700 | 70-175 | 160 | 190-560 | 30.5 |
| ZC125 | 1250×950 | 760 | 100-250 | 185 | 260-775 | 44.0 |
| ZC130 | 1300×1000 | 800 | 100-250 | 185 | 285-850 | 45.8 |
| ZC140 | 1400×1070 | 860 | 125-250 | 200 | 345-870 | 54.2 |
| ZC150 | 1400×1200 | 1000 | 125-250 | 220 | 355-900 | 51.0 |
| ZC160 | 1600×1200 | 1000 | 150-300 | 250 | 445-1170 | 83.5 |
| ZC200 | 2000×1500 | 1200 | 175-300 | 400 | 645-1460 | 137.0 |
Features
5. Stable operation and low failure rate: Optimized eccentric shaft transmission structure and balanced operation design reduce equipment vibration and running noise. The self-protection toggle plate structure can effectively prevent equipment damage caused by non-crushed foreign matters, ensuring safe and stable operation.
Cover Product Advantages
5. Simple maintenance and time-saving and labor-saving: Adopts modular assembly design and centralized lubrication system. The hydraulic quick-opening structure is convenient for daily inspection, maintenance and vulnerable parts replacement. The daily maintenance time is shortened by 50%, which greatly improves production continuity.Model Part Number Weight C63 418823 8 C80 902613 13 C96/95 938930 21 C100 418745 35 C106/105 MM0533630 33 C110 MM0262902 62 C116 590208 35 C120 MM0539704 29 C125 MM0262896 68 C130 MM1024201 54 C140/C145/C150 MM0262892 75 C160 MM0262889 85 C160 312210 85 C200 916478 224 C3054 916273 42 C80 902606 2 C96/95 934013 2 C106/105/C116/C3054 590220 3 C110/C125/C140/C145/C150/C160 418640 9 C130 MM1035395 2 C200 916402 18 C80 914638 24 C80 914638T 24 C100 418748T 62 C110 901693 70 C110 901693T 70 C116 MM0542194 87 C116 MM0542194T 87 C120 MM0581913 109 C120 MM0581913T 109 C125 410882 88 C125 410882T 88 C130 MM1004659 143 C130 MM1004659T 143 C140 MM0201096 108 C140 MM0201096T 108 C145 905748 258 C145 905748T 258 C160 418255-import 125 C160 418255-domestically made 125 C160 418255T 125 C200 917439 432 C200 917439T 432 C3054 916933 85 C3054 916933T 85 C63 487849 13 C63 487762 14 C80 902723 34 C80 902725 45 C96/95 578182 30 C96/95 938873 56 C100 487031 33 C100 487032 33 C106/105 MM0523101 62 C106/105 MM0235239 11 C110 447320 18 C110 902001-A 37 C110 902001-B 37 C110 MM0246829 58 C116 MM0524412 65 C120 MM1010146 45 C120 MM1019561 78 C125 471135 41 C125 471136 43 C130 MM1024805 88 C130 MM1024316 58 C140/C145 927644 146 C140/C145 418622 62 C150 MM1031564 22 C150 MM0550419 167 C160 471536 79 C160 576659 80 C200 917428 180 C200 917430 285 C3054 585315 25 C3054 585257 39 C63 487763 8 C80 487228 10 C96/95 578186 11 C96/95 938874 7 C100 487033 15 C106/105/C116/C3054 MM0213251 15 C110 447321 8 C120 MM0519671 18 C120 MM0519651 17 C125 471137 20 C130 MM1004681 18 C130 MM1004684 18 C140/C150 418604 28 C145 905757 42 C160 471537 30 C200 917431 70 C110 447328 11 C120/C130 MM0512875 26 C125 471149 31 C140 418605 45 C145 906145 65 C150 MM0542555 46 C150 MM0568413 44 C160 471535 47 C200 917784 95 C200 917426 95 C96/95 946470 46 C106/105 MM0215011 63 C110 447297 107 C116 MM0224887 101 C120 MM0588687 77 C130 MM1002641 95 C140 928709 160 C145 906151 176 C150 MM0577767 93 C160 447156 230 C200 917435 389 C3054 585838 102 C96/95 578188 50 C110 447298 105 C140 MM0276625 164 C145 906150 168 C150 MM0567241 98 C160 447157 225 C200 923155 412 C3054 585841 92 C95 579141 57 C100 312254 58 C106/C116 589872 77 C105 920172 68 C105 341287 125 C120 MM0539652 99 C120 MM0512870 80 C125 923720 167 C125 908444 140 C140 928448 163 C140 928109 207 C140 905727 220 C150 MM0567220 128 C150 MM0577595 131 C160 341091 113 C200 923152 470 C200 917421 520 C3054 585432 91 C63 487773 7 C80 487216 10 C96/95 MM0234209 9 C100 487061 20 C95 MM0229311 11 C110 447333 24 C116 MM0231125 12 C120 MM0512894 19 C125 471143 27 C130 MM1005346 21 C140/C145 418620 29 C160 471545 53 C200 917549 59 C3054 921310 27 C63 418517 37 C80 906828 45 C96/95 578157 57 C100 471060 105 C106/105 MM0215574 92 C106/105 922849 76 C106/105 MM0567612 104 C110 341202 100 C116 591360 116 C120 MM1013071 138 C120 MM0543491 138 C120 MM1064765 153 C125 471146 190 C130 MM1006270 195 C140 319142 220 C145 905628 225 C150 MM1002997 278 C160 471547 353 C200 917751 490 C3054 916946 127 C80 922317 25 C96/95 578653 31 C100 418772-A 43 C100 418772-B 51 C106/105 MM0275158 37 C110 MM0228899 55 C116 MM0503392 46 C120 MM0525649 106 C125 418804 73 C140/C145 MM0204024 61 C140 577483 61 C150 MM0587617 105 C160 578097 161 C200 MM0214574 125 C3054 MM0249518 48 C63 261347 860 C80 902328 1290 C96/95 938762 1469 C100 118818 3100 C106/105 MM0205766 2454 C106/105 MM0581481 2722 C106/105 913371无图 2350 C110 940253 4100 C116 590297 2946 C120 MM0530707 4500 C125 118836 6300 C130 MM1001364 6491 C130 MM1087923 6578 C130 MM1101954 6560 C140 924473 7530 C145 905480 9200 C150 MM0566662 9305 C160 576458 12264 C200 917173 19180 C3054 584956 4120 C63 261348 245 C80 908593 440 C96/95 582297 540 C100 261470 1090 C106/105 MM0208795 854 C110 287909 1190 C116 588306 1109 C120 MM0514925 1223 C125 261509 2150 C130 MM1005357 2174 C140/C145 285302 2515 C150 MM0561603 2504 C160 171160 3750 C200 915931 5910 C3054 585020 1611 C63 285449 75 C63 285450 76 C80 908563 74 C80 908562 75 C96/95 933219 119 C96/95 933216 120 C100 307918 255 C100 307919 260 C106/105 913402 155 C106/105 913894 157 C110/C120 902709 295 C110/C120 902710 295 C116 588335 201 C116 588338 200 C125/C130 307867 435 C125/C130 307868 435 C140/C145 930765 570 C140/C145 930766 570 C150 MM0575499 525 C150 MM0575431 527 C160 MM0272633 1014 C160 MM0272634 1003 C200 915834 1520 C200 915835 1527 C3054 915615 294 C3054 915616 296 C63 487881 10 C80 908583 13 C96/95 938837 14 C100/C110/C120 307940 33 C106/105 914003 20 C116 588440 32 C125/C130 487683 53 C140/C145 285312 64 C150 MM0571930 67 C160 261788 94 C200 915863 162 C3054 915811 37 C63 383708 15 C80 908595 13 C96/95 933255 17 C100/C110/C120 307914 33 C106/105 913996 23 C125/C130 307869 39 C140/C145 285304 41 C150 MM0575023 49 C160 386323 88 C160 MM0212955 116 C200 915822 150 C3054 915809 29 C80/C96/95/ C106/105/C116 418875 0 C100/C110/C120/C125/C130/C140/C145/C150/C160/C3054 418621 0 C63 487873 4 C63 471338 4 C80 908553 5 C80 908552 6 C96/95 933366 6 C96/95 933223 6 C100/C110/C120 471340 11 C100/C110/C120 487122 11 C106/105 913993 8 C106/105 913991 8 C116 588429 9 C116 588435 9 C125/C130 471339 17 C125/C130 487036 15 C140/C145/C150 312179 18 C140/C145/C150 418606 16 C160 471533 36 C160 471534 37 C200 915865 57 C200 915866 60 C3054 915810 11 C3054 915812 10 C63 939018 556 C63 939019 556 C80 939026 609 C80 939025 609 C96/95 578136 645 C96/95 578135 645 C100 939032 0 C100 939031 1664 C106/105 MM0545232 1126 C106/105 MM0545064 1126 C110 939934 1877 C110 939936 1877 C116 MM0500690 1461 C116 MM0500691 1461 C120 MM1009467 2126 C120 MM1009474 2126 C125 939045 3341 C125 939043 3541 C130 MM1002056 3371 C130 MM1002059 3370 C140 MM0211656 4463 C140 MM0211655 4463 C145 MM0210526 5002 C145 MM0210528 5002 C150 MM1030662 4878 C150 MM1030660 4878 C160 MM0262403 8032 C160 MM0262414 8032 C200 MM0216562 11234 C200 MM0216564 11234 C3054 587495 1732 C3054 587496 1732 C63 118708 600 C80 902536 0 C96 577924 1066 C96 MM0268784 1062 C100 186872 2400 C106/105 MM0523791 1617 C110 940247 2677 C116 590258 2152 C120 MM0539701 2702 C125 921596 4400 C130 MM1000840 4151 C140 954206 6100 C145 954289 6683 C150 MM0566854 6164 C160 MM0261962 9686 C200 917172 16314 C3054 584957 3342 C63 118709 405 C80 920860 465 C96/95 950127 678 C100 118820 1370 C106/105 MM0273445 1005 C110 940464 1500 C116 MM0208843 1378 C120 MM0523830 1879 C125 921063 2400 C130 MM1003361 3189 C140/C145 589333 2962 C150 MM0571662 2773 C160 MM0261965 5150 C200 MM0232317 7502 C3054 584972 1895 C63 487891 4 C80 902742 9 C80 951199 9 C96/95 939984 18 C100 921064 21 C106/105/C116 MM0209833 22 C110 941503 22 C120 MM0531457 23 C125 921067 38 C125 386145 38 C140/C145 921069 54 C140 921068 0 C160 921070 56 C200 917491 0 C3054 587740 25 C63 405193 15 C80 7073215001 16 C100B 159901 35 C125 487960 55 C160 471541 113 C63 261366-B 320 C63 261366 350 C80 576512 341 C80 576511 372 C96/95 576555 413 C96/95 576554 458 C100 285547-A 1090 C100 289472 1100 C100 285547-B 1150 C106/105 MM0276030 734 C106/105 MM0276029 795 C110 MM0241261 1185 C110 575182 1175 C110 575181 1243 C116 590150 864 C116 589043 972 C120 MM0524512 1554 C120 MM0537752 1554 C120 MM0524473 1687 C125 MM0219628 2279 C125/C140 MM0219629 2444 C130 MM1038351 2276 C130 MM1038320 2441 C140 MM0221659 2273 C150 MM1033438 1816 C150 MM1032722 1800 C150 MM0570266 2009.46 C160 576502 3149 C160 576501 3367 C200 MM0270868 6354 C200 570618 6609 C3054 575158 1290 C3054 575107 1422 C63 383713 9 C96/95 570626 28 C96/95 570625 28 C100 383876 39 C106/105 MM0276003 44 C116 MM0239850 38 C120 MM0524531 59 C125 383905 74 C130 MM1015764 97 C140 312183 99 C145/C160 386339 128 C150 MM1048902 128 C200 MM0232282 200 C120 MM0557009 398 C80 MM0272801 35 C80 MM0272802 35 C80 MM0272803 36 C80 MM0272804 36 C63 MM0548235 64 C80 MM0548394 64 C96/95 MM0548248 65 C100 MM0548395 65 C150 MM0531815 47 C145 MM0201614 247 C145 MM0201407 202 C200 MM0201615 247 C3054 MM0201408 202 C80 922446 23 C106/105 914031 20 C110 941451 70 C120 MM0525650 18 C125 MM1065194 20 C125 MM1064803 19 C125 940707 72 C130 418708 53 C140 315974 70 C145 577441 64 C160 578098 123 C200 917614 165 C80 902847-A 1 C80 902847-B 1 C80 922321 2 C110 447326-A 3 C110 447326-B 3 C110 447349 2 C80 495088 5 C100 563608 1 C100 495394 7 C100 495539 2 C110 940927 178 C120 MM0525059 77 C120 MM1000167 38 C125 386963 75 C125 908445 150 C125 923906 174 C140 312168 104 C140 928306 152 C140 MM0529751 157 C160 386895无图 106 C160 MM0527972 136 C160 496584 8 C200 MM0215044 420 C125 MM0509614 141 C140 MM0208806 11 C160 580714 67 C160 580714T 67 C80 580836 24 C80 902590 125 C100 307879 238 C110 341256 302 C110 341310 302 C125 MM0594786 11 C140 404961 14 C80 908597 14 C110 341210 24 C145 418624 101 C140 940951 2 C106 MM0554187 30 C106 MM0208796 15 C106 708801226500 0 C106 582046 11 C106 931471 1 C106 931473 1 C106 915792 11 C106 920131 0 C106 931470 1 C106 MM0252833 1 C106 MM0318263 3 C106 MM0243904 12 C106 590808 215 C106 919670 6 C125 949638649301 2 C125 949638649302 2 C125 949638649303 0 C125 949638649304 0 C106 MM0216326 33 C106 MM0235749 34 C106 MM0235350 2 C106 340897-1625 0 C106 340897-2440 0 C106 340897-1613 0 C106 MM0235349 3 C106 943740 0 C106 914116 2 C106 914115 2 C106 940009 14 C106 580330 0 C106 MM0215277 34 C106 MM0259897 0 C106 914258 12 C106 N11893199 0 C106 MM0217487 8 C106 MM0264159 28 C106 MM0264161 28 C106 MM0217479 1 C106 MM0264027 0 C106 915055 0 C106 916038 1 C106 578999 1 C106 MM0244805 405 C106 MM0527777 77 C106 MM0268430 1 C106 C106 Motor 0 C106 C106 Motor 0 C106 C106 Motor 0 C106 C106 Motor 0 C106 250*11SPB 0 C106 406202557470 5 C106 SNDF13299 0 C106 C106 starter cabinet 0 C106 706302164100 0 C106 MM0264634 0 C120 MM0342435 0 C120 N03222235 0 C120 MM0248887 0 C120 MM0248887 0 C120 MM0248887 0 C120 MM0248887 0 C120 MM0542095 0 C120 MM0585542 2342 C120 MM0586425 2066 C120 MM1028794 200 C120 940954 2 C120 940947 0 C120 MM0550058 4 C120 MM0525425 6 C120 MM0590395 3 C120 MM0541138 0 C120 MM0518678 4 C120 MM0526048 2 C120 591207 2 C120 MM0539594 1 C120 MM0539574 66 C120 MM0516563 29 C120 MM0514031 23 C120 MM0536220 66 C120 MM0514061 42 C120 940336 3 C120 931506 1 C120 MM0530647 43 C120 MM0514468 2 C120 MM0519502 318 C120 591748 14 C120 MM0592860 2 C120 418707 3 C120 MM0551477 34 C120 MM0209800 17 C120 904486 4 C120 MM0380820 435 C140 312173 35 C140 940955 4 C96 578906 2 C130 MM1141565 102 C96 915846 25 C120 MM1068347 64 C120 941703 0 C120 MM0315434 92 C200 N03729910 26 C150 MM1009246 81 C150 MM1009242 81 C160 171167 106 C150 340897-3670 1 C80 940953 1 C-SERIE 580317 1 C100-C125 915025 1 C130 MM1081689 91 C130 MM1081691 60 C3054 586147 42 C100B 487064 2 C130 MM1241210 20 C130 MM1087547 1 C160 921062 26 C125 496461-A 15 C125 496461-B 15 C140/C145/C160 947302 110 C140,C145,C160 287794 75 C63-C95 940945 0 C110 383433-A 8 C80 908554 9 C140B 312196 7 C160 MM0271065 3 C160 579259 0 C130 MM1102577 95 C80 903196 1 C80 N11893054 7 C80 N11893055 7 C80 922472 0 C106 582133 25 C106 MM0209814 10 C80 919749 22 C80 N11890694 - C80 N11890695 - C100B 264381 14 C80 906563 124 C80 904175 6 C80 MM0272178 33 C80 MM0272179 33 C80 MM0272315 36 C80 MM0272316 36 C80 920766 132 C80 915892-A 110 C80 915892-B 110 C80 915893-A 80 C80 915893-B 80 C80 563621 1 C80 922318 23 C80 922319 1 C100B 261158 36 C95, C105, C125, C140, C145 931446 38 C130 MM1093476 21 C150 MM1034156 58 C110,C140,C145,C160,C3055 582151 37 C120 MM1068492 1 C130 MM0536008 14 C120 MM0590427 2.2 C106 MM0581509 15 C106 MM1122433 63 C106 MM1121908 0 C140 418603 62 C160/C200 578272 2 C106 MM1122361 0 C106 MM1121887 0 C160 MM0268899 7 C150 MM0567825 98 C120 945382 7 C120 945383 7 C120 SNDF14345 1490 C80 499464 1 C120 MM0513404 75 C145 577484 3 C100 418010 3 Unknown model MM0546145 0 C160 MM0271019 1431 C106 MM0309867 29 C106 MM0310233 21 C3054 585797 25 C200 MM0217709 31 C100 285479 7 C110 447329 2 C160 MM0285457 618 C200 MM0217710 86 C140 915118 65 C96 582296 18 C3054 587681 11 C125 908885 5 C105 931444 13 C105 931445 3 C63-C160 908898 2 C95 934449 26 C200 585042 70 C120 MM0531810 30 C110 931484 3 C200 N11899974 23 C200 N11899975 23 C200 932094 1025 C100 913517 1 C125, C140, C145, C160 947446 8 C120 MM0524222 9 C150 930079 0 C125 418812-A 3 C125 418812-B 3 C106 MM0548138 164 C106 MM0235188 13 C96 495570 1 C120 933451 30 C150 MM0319989 12 C120 804745 0 C96 932734 7 C106/C116 MM0275156 34 C106/C116 MM0275159 1 C120 918753 0 C150 MM0577827 3 C80 902883 4 C120 MM0524157 32 C120 585889 24 C120 MM0593922 2 C80 922263 3 C80 487268 2 C110 447347 1 C110 447341 53 C125B 910032 7 C140 447725 32 GP11 285388 136 GP300 905262 192 C140 590276 119 C140/C145/C150 MM0293082 67 C145 577951 33 C-SERIE 578007 27 C140、C145 MM0293301 51 C140、C145 931475 6 C140 580177 50 C140、C145 931476 5 C140、C145 MM0201303 29 C145 MM0225862 579 C145 MM0226649 439 C145 911455 36 C145 590526 36 C-SERIE 580178 2 C-SERIE 580179 2 C140 903468 7 C145 MM0209422 5 C145 MM0209423 21 C140/C145 MM0229640 18 C140B 418655 2 C125 418810 0 C125 495070 1 C140 580316 2 C150 340897-1220 1 C145 948410 70 C145 948411 70 C110 908164 1 C145 940411 75 C140 940948T 0 C-SERIE 579871 0 C125 563714 2 C125 563715 3 C125 386518-A 4 C125 386518-C 4 C140、C145 MM0201307 0 C160 589541 0 C140B 418627 49 C140 947427 3 C80 418937 0 C145 446243 3 C145 945940 25 C106 579521 1 C140/C145 MM0201629 0 C150 N44450338 1 C130 MM1073068 34 C160 287567 105 C200 931303 55 C200 917688 6 C200 917691 6 C145 951679 3710 C145 951679(G) 2520 C145 911542(G) 74 C80 903051 310 C120 MM0528342 0 C125 948395 100 C150 MM0572665 10 C200 MM0232319 100 C140/C145 MM0206362 71 C96 MM0202636 63 C130 MM1076942 28 C-SERIE 575914 1 C160 MM0267239 143 C160 MM0267347 2 C125 MM0274927 7 C125 MM0274929 7 C96 MM0507891 61 C150 MM1031827 76 C125 904976 69 C100B 418668 23 C100B 261471 19 C80 914035 2 C80 902041 5 C80 924401 0 C100-110 919588 4 C80 902744 8 C80 706303279746 22 C100 706202557072 4 C80 487189 9 C80 951193 18 C80 932064 4 C200 578274 4 Unknown model MM1208024 0 C120 MM0518720 2 C160 MM0271057 511 C125 948330 60 C125 948331 60 C125/C160 914933 2 C125 904991 1 C140、C145 319144 437 C125 579616 7 C160 418807-A 5 C120 MM0541135 0 0 418698 0 C106 MM0270706 287 C106 MM0244804 41 C106 MM0244803 40 C105 581190 0 C105 581193 0 0 405287 6 C106 MM0571690 62 C106 MM0571766 2 C160 MM0267781 15 C115 590649 19 C106 MM0270440 6 C130 MM1155334 195 C160 MM0267761 6 C200 918336 38 C200 918338 43 C200 920012 1 C200 MM0220462 4 C100R, C106, C3055 913822 3 C125 118838 52 C63-C125 263544 30 Z036 N03229979 40 C106 MM0557799 70 C130 MM1005680 15 C130 MM1090684 2171 C116 MM0502603 101 C110 447348-A 19 C110 447348-B 19 C80 908882 0 C125 910031 70 C125 N88409024 6 C150 MM0589529 427 C116 588444 21 C160 MM0267021 2 C110 386588-A 18 C110 386588-B 11 C116 MM0224318 39 C160 471570 9 C120 MM0525063 69 C125 MM0212848 40 C110 447304 1 C160 MM0269230 5148 C160 579631 363

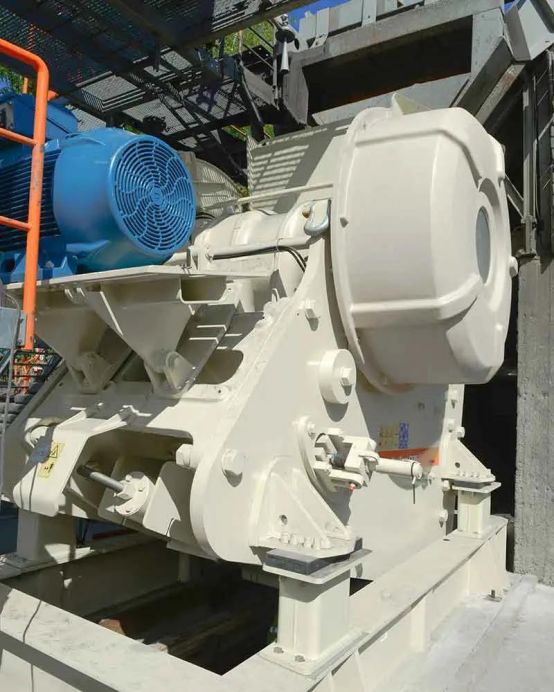

Product Application
Corporate Strength
Strict Quality Control and One-stop Service
FAQ:
Q:????? What is your minimum order quantity (MOQ)? Are you able to accommodate big-volume, long-term purchasing orders?
1 piece as minimum order, accepts bulk purchasing and long-term procurement
R: General products: MOQ is 1 piece (available stock, direct sending, no MOQ limitation).
Difference customization, non-standard components: MOQ is 30-50 pieces/batch (subject, process difficulty, ?????negotiable).
A????? long-term cooperation agreement means: if the orders are annual purchases over five million Yuan, you can have an annual prices fixed contract. Throughout the year the prices won't change no matter how the steel market is behaving. In addition, you have the benefit of "rolling material preparation", ie, we will reserve custom blanks for you ahead of time, so your ordering/delivery cycle time will be reduced from the normal 30 days to 7-10 ?????days.
Q:????? What sorts of packaging do you normally use?

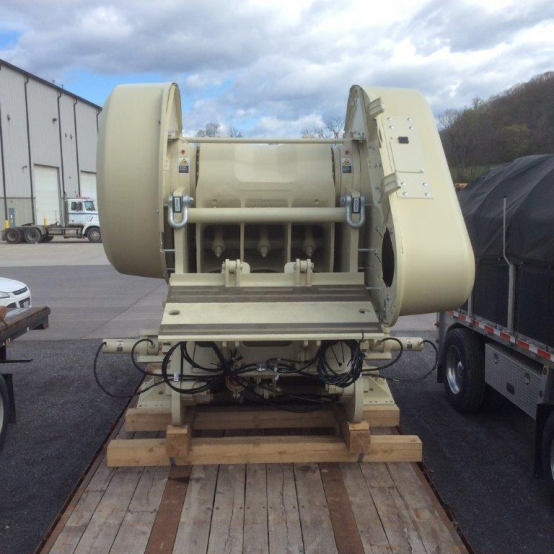

A: We most commonly place smaller items like accessories in wooden boxes. The heavy bits and machinery that come together get packed on a steel frame that is welded. The frame is first completely covered with foam and then covered with waterproof film on top to keep the machine free from bumps and rust during transportation.
Q: What are the kind of logistics and transport services you offer?
A:We offer both EXW and FOB ?????terms.
