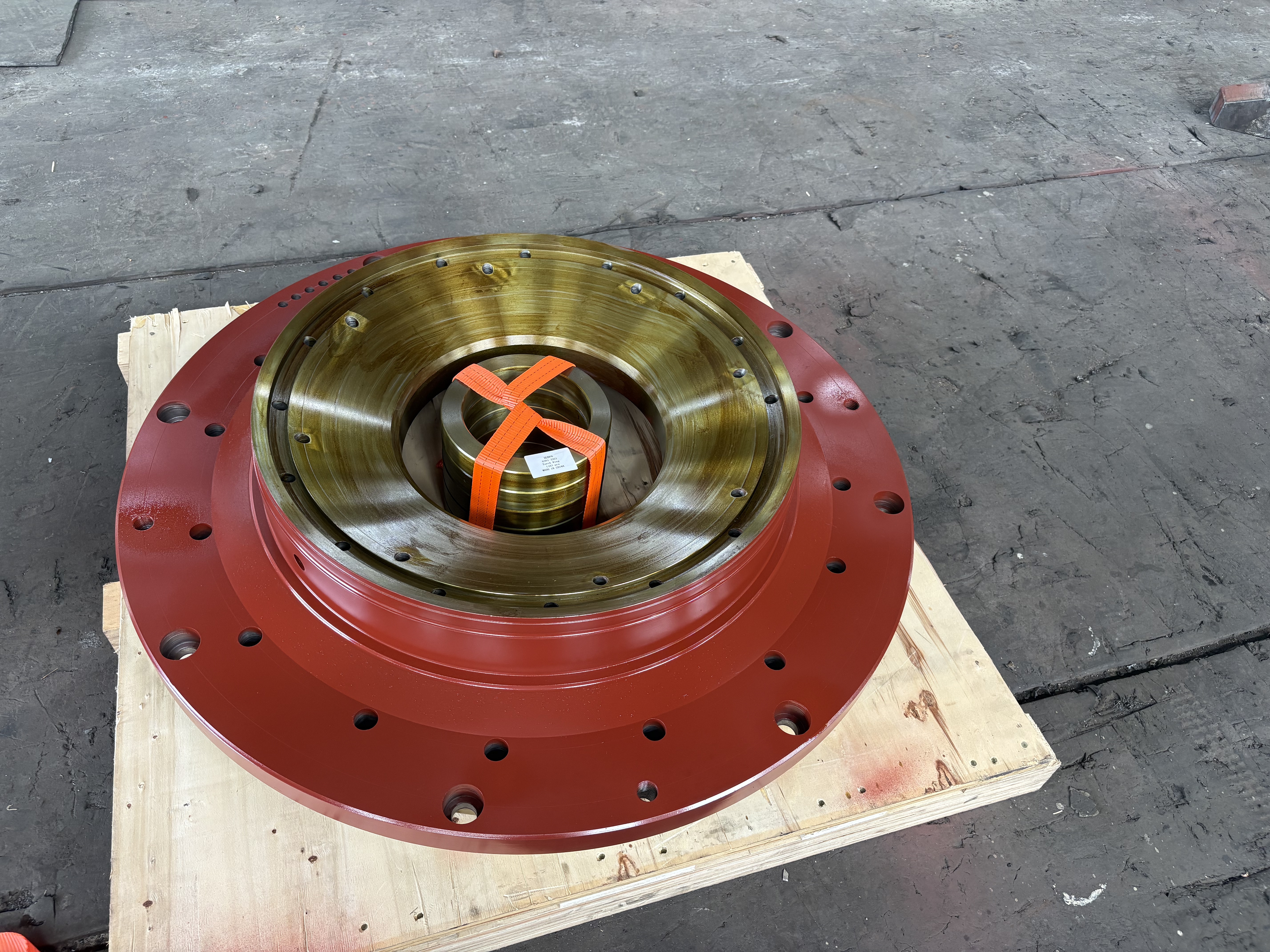

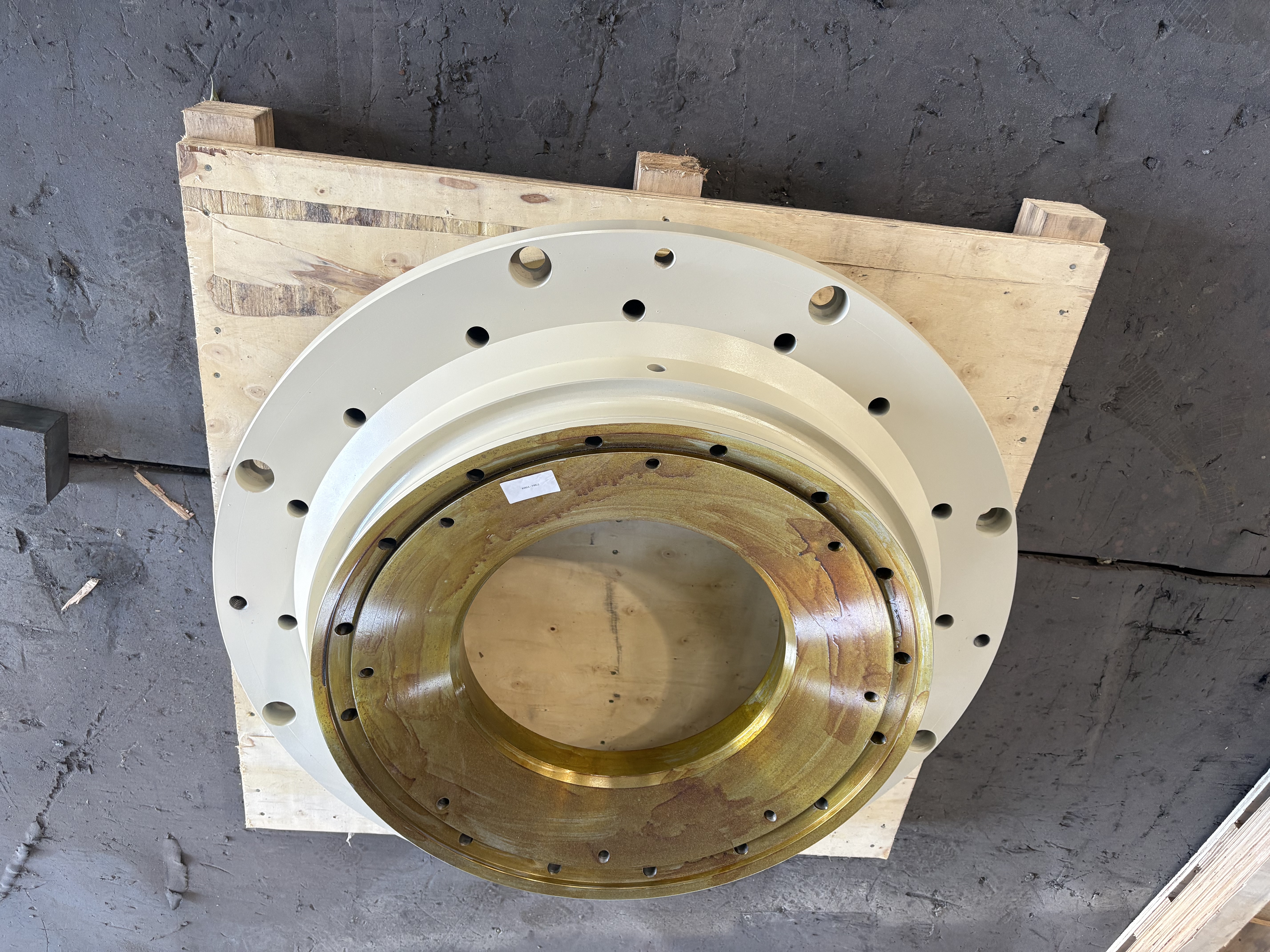

Cone Crusher Socket Assembly

Pain Point & Solution

The Challenge

Inconsistent fitment
Replacement socket assemblies may have dimensional deviations that make installation difficult or affect the mating condition with the main shaft and eccentric assembly.

Premature liner wear
Poor material selection, inadequate hardness, or uneven contact can accelerate wear on the socket liner during continuous crushing operations.

Uncertain replacement quality
For replacement parts, buyers need confidence that the assembly matches the original crusher specifications and will perform consistently after installation.

The Solution

Fitment controlled by critical dimensions
ZHUOYUE verifies key dimensions including bore diameter, liner thickness, spherical mating geometry, and mounting dimensions against the approved drawing, crusher model, OEM number, or customer-supplied worn sample. This helps control dimensional deviations that could cause installation or mating problems.

Wear resistance controlled through material and heat treatment
For wear-loaded components, ZHUOYUE selects the material according to the operating and load conditions and controls the heat-treatment process and resulting hardness. The aim is to provide the socket liner with sufficient surface hardness and mechanical strength to withstand repeated loading and sliding contact.

Replacement consistency supported by inspection
Before shipment, critical dimensions, mating surfaces, and relevant material or heat-treatment requirements are inspected against the confirmed specifications. This provides buyers with a clearer basis for checking fitment, material condition, and replacement consistency before installation.

 Specifications

Product Advantages

Superior Heavy-Load Resistance: Advanced heat-treated cast steel maintains structural stability under severe impact forces, preventing thermal warping.

Optimized Mechanical Alignment: Precision CNC turning and boring guarantee optimal running clearances with the eccentric assembly and main shaft.

Extended Wear Life: High-density bronze lining ensures continuous lubrication film retention, significantly reducing abrasive wear in dusty mining environments.

Product Applications

Built for heavy-duty crushing operations across major resource sectors:

Hard-Rock Mining: Primary/Secondary circuits for Gold, Copper, and Iron Ore processing.

Aggregate Quarrying: High-tonnage Granite, Basalt, and River Pebble production lines.

Industrial Recycling: Concrete crushing and metallurgical slag reclamation plants.

Company Advantages

10+ Years Heavy Machinery Expertise: Specialized engineering team focused on reverse engineering, precision machining, and strict quality control for mining wear and spare parts.

Integrated Production Lines: Supported by 24 technical engineers and a facility equipped with 10 CNC machining lines, 2 welding stations, and 2 assembly hubs for flexible batch and custom manufacturing.

Global Logistics Readiness: Professional export handling structured for international mining contractors, equipment dealers, and plant operators.

Facility & Capabilities:

4,000-square-meter production base

Dozens of precision CNC machine tools

Professional forging and heat treatment equipment

Complete physical and chemical testing instruments

Maximum single-piece production up to 150 tons

OEM/ODM production services available

R&D/technical personnel: 24

Production lines: 10 machining lines, 2 welding lines, 2 assembly lines

Annual capacity: 2,000 tons/year

Export markets: Europe and the Americas

After-Sales Capabilities

12-Month Performance Warranty: Complete coverage against manufacturing defects, structural voids, or dimensional non-conformity.

Fitment Guarantee: 100% replacement or refund assurance if the part fails to assemble due to manufacturing tolerance errors.

24/7 Engineering Support: Fast technical response for installation guidance, drawing verification, or field measurement assistance.

3D Scanning & Reverse Engineering: On-site or sample-based 3D laser scanning to restore precise dimensions when original OEM drawings are missing.

Quality Control Standards

Each order is manufactured against defined technical and inspection requirements established before production. Quality verification is carried out at critical points from material receipt and machining through heat treatment, assembly, and final inspection, with results checked against applicable ISO/ASTM standards, material specifications, approved drawings, and customer requirements.Material Integrity: Spectrometric chemical composition testing and Brinell hardness verification for every raw casting and bronze alloy batch.

Non-Destructive Testing (NDT): 100% Ultrasonic Testing (UT) and Liquid Penetrant Testing (PT) applied to critical stress zones to eliminate internal voids or micro-cracks.

Dimensional Verification: CMM coordinate measuring and mating-surface audits performed prior to packaging. Full inspection reports supplied with shipment.

FAQ

Q1: How do you guarantee the socket assembly will fit my crusher if I don't have the technical drawing?

You can provide the crusher brand, model, original part number, or basic field dimensions. Our engineering team will cross-reference our technical database, generate 2D/3D manufacturing drawings for your approval, and verify critical mating dimensions before production begins.

Q2: What is your standard packaging for long-distance ocean shipping?

All machined functional surfaces are treated with heavy-duty anti-rust oil, wrapped in VCI corrosion-inhibiting film, and securely anchored inside steel-reinforced, IPPC-compliant (ISPM 15) wooden crates engineered for rough maritime handling.

Q3: Can we request a third-party audit or pre-shipment inspection?

Absolutely. We fully support independent third-party agencies (SGS, Bureau Veritas, Intertek) to conduct chemical audits, NDT flaw detection, dimensional checks, and container loading supervision.
