Cone Crusher U-bolt
Brand :ZHUOYUE
Product origin :Shenyang, Liaoning, China
Delivery time :One week
Supply capacity :5,000 cases per year
Constructed from high strength alloy steel, the ZHUOYUE cone crusher U-Bolts have a tensile strength of at least 850 MPa and hardness of 28-32 HRC after heat treatment according to the certified specification. All main dimensions and threads are done according to verified drawings or specified dimensions which make fastening of U-bolts and their alignment possible. OEM part numbers, prototypes and dimensions can be discussed for model-specific situations. We also prepare matching nuts and inspection reports as per your orders.
Product Introduction
Cone crusher U-bolts together with nuts are subject constantly to vibrations, loads that hit them suddenly, repeated tightening operations and clamping forces that are not the same at all time periods.
In case the material, heat treatment method, thread, or dimensions of the fastener are not in accordance with the required ones for the equipment, there may be loosening of the fastener or its components, changing of shape, deformation, damage to the thread, or breaking of the part.
The main issue for purchasing and service departments is not only the strength of the fastener but also whether the U-bolt fits the crusher model, original equipment manufacturer part number, mounting location, and necessary size of the part.
Our Solution
Fasteners for cone crushers and their nuts are produced by ZHUOYUE out of high-strength alloy steel, through a method of a whole-body forging process followed by a heat treatment process of quenching and tempering, all according to the approved technical specification sheet. The existing product standard specifies a tensile strength of ≥850 MPa and hardness level between 28 and 32 HRC, which set down clearly the mechanical property of a specified material to be met for that kind of fastening application.
How We Control Fastening Performance
Material selection & heat treatment: In order to provide strength and resistance at high loads, high-strength alloy steel is subjected to forging and appropriate heat treatment according to confirmed specification.
Mechanical_property_verification: Tensile strength and hardness are maintained in line with agreed technical specifications and can be confirmed by means of inspection records.
Dimensional Control:Critical dimensionsaremanufacturedaccordingtoapproveddrawingorconfirmedspecification.Adeviationof±0.02 mm may besetin certain cases where this is required technically.
ApplicationMatching:StandardandcustomU-boltsarecapableofbeingcreatedthroughcrushermodel,OEMnumber,technicaldrawing,sample,ormeasureddimensionsafterconfirming
Value to the Buyer
Fastening problems due to material properties of a wrong type or deviation of measurements can be avoided with this help.
Installation of bowl liners and other crusher parts as required through fasteners is assured with consistent clamping by the Buyer.
It prevents the premature replacement of components due to wear, deformation, thread damage, or fastener fracture.
Specifying material, mechanical-property, and dimensional requirements help ensure that repeat procurements meet the same standards.
Buyers can send the crusher model, OEM part number, drawing, sample, or key dimensions for technical review before production.
Technical parameters：
| Parameter Category | Core Technical Information | Execution Standard / Remarks |
|---|---|---|
| Product Type | Cone Crusher U-Bolt and Matching Nut | For specified crusher fastening positions |
| Part Number | 1970-5001 / 1970-5821, as applicable | Confirm against crusher model and OEM reference |
| Application | Bowl liner and related crusher component fastening | Application confirmed according to equipment design |
| Material | High-strength alloy steel | Final material grade confirmed according to order specification |
| Manufacturing Process | Forging + quenching and tempering | Process requirements confirmed according to material specification |
| Tensile Strength | ≥850 MPa | According to current technical specification |
| Hardness | 28–32 HRC | According to current technical specification |
| Dimensional Tolerance | ±0.02 mm for specified critical dimensions where applicable | Final tolerance according to approved drawing |
| Thread Specification | According to approved drawing / confirmed specification | Thread size and pitch to be confirmed for each part |
| U-Bolt Dimensions | Leg length, inside width, inside height and bend radius according to drawing | Model-specific |
| Matching Nut | Supplied according to confirmed thread specification | Nut type and grade confirmed before production |
| Surface Treatment | According to confirmed order requirement | Coating/plating treatment should be specified where applicable |
| Inspection | Material, mechanical-property, dimensional and surface inspection as specified | Inspection records available according to order requirements |
| Customization | Standard and non-standard production available | Based on crusher model, OEM number, drawing, sample or confirmed dimensions |

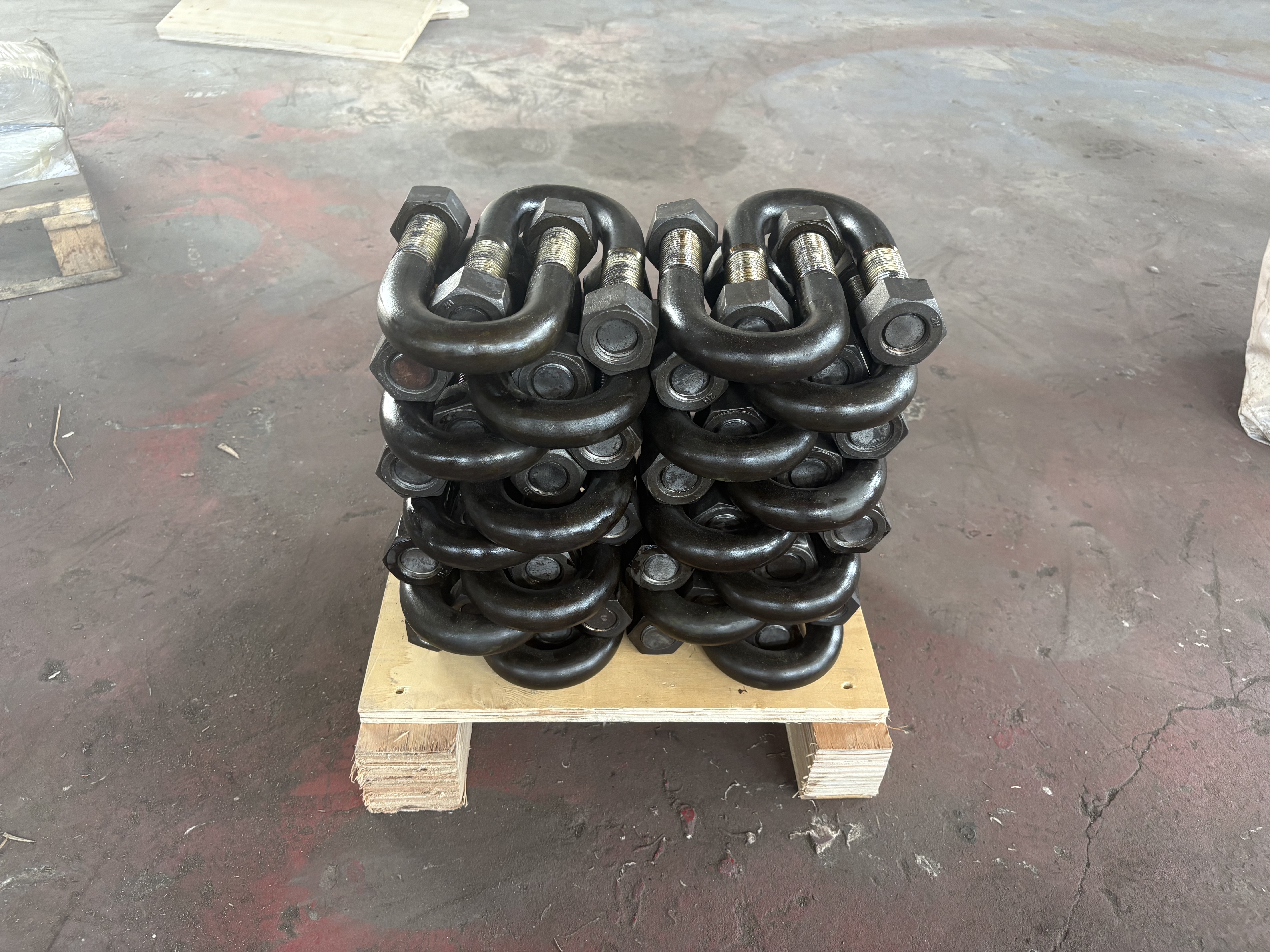

1970-5001

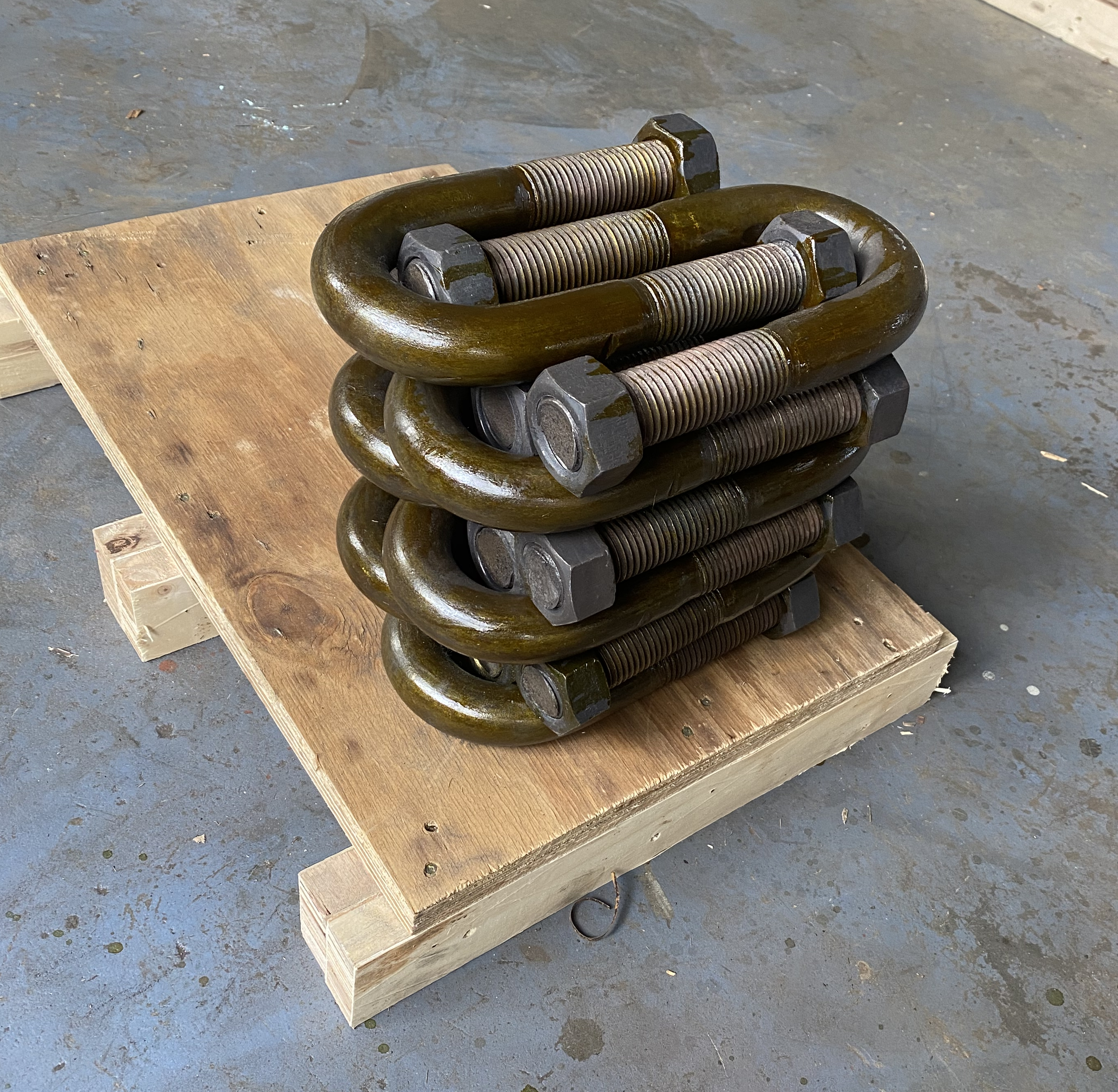

1970-5821
Cover Product Advantages:
1. Forged Construction for Repeated Loading
Forging and heat treatment processes are adopted during the production of U-bolts to achieve mechanical characteristics necessary for heavy-duty fastening applications. A specific tensile strength and hardness requirement set the quantitative indicators for material and process testing.
2. Stable Clamping Support
Getting the correct size and thread of the U-bolt helps hold your setup together for bowl liners and other identified parts of your crusher that may require some tightening with U-bolt. These are the main things they will be referring to at the end in order to check the drawings or the technical specification have already been approved.
3. Fitment according to the application
Manufacturing of U-bolts is possible according to the crusher model, the OEM part number, drawings, a sample, or confirmed dimensions. It is also a fastening configuration that corresponds to a specific mount area instead of a standard size U-bolt that would be the only option.
4. Repeat Procurement Consistency
With regards to subsequent orders, it is acceptable that the drawing (along with material specification, mechanical-property requirements and inspection criteria) approved for the first one is used as the reference for further production. This helps with keeping the product uniform across various batches.
5. Inspection-Based Quality Control
Material verification, mechanical-property inspection, dimensional inspection, thread inspection, and surface inspection can be carried out according to the verified quality requirements. When ordered, we will submit relevant inspection report.
Product Application:
We use U-bolts to lock the cone crusher in its position as a specified fastener part and for components such as bowl liners and other wearing parts that need a fastener part of U-bolt in the equipment design.
Some of the typical applications areas we cover are:
- Mining and ore crushing
- Quarrying and aggregate production
- Construction aggregate processing
- Industrial material crushing
- Heavy-duty crusher maintenance with a new one being fitted at the end
Please, before the manufacture, confirm the related crusher model, the location of fastening, size of U-bolt, thread specification if you would like non-standard U-bolts for the crusher model, the OEM part number, drawing, sample, or measured dimensions.
ABOUT US
ZHUOYUE is backed by an expert team that collectively holds more than 10 years of field experience in mining machinery and crusher replacement parts. We not only conduct the technical analysis but also coordinate the manufacturing, precision machining, forging processes, and quality inspection for crusher structural components, fastening parts, wear parts, and custom-machined components.
Facility & Production Capability
Located in Shenyang, Liaoning, China, ZHUOYUE has 4,000 m² production site that also includes:
- 48 professional technical and R&D staff
- 18 production lines: 11 machining, 3 welding, 2 assembly
- Yearly production capability: more than 2,500 tons
- Maximum single-piece capability: up to 200 tons for appropriate metal structural components
- Manufacturing methods: forging, precision machining, heat treatment/stress relief, surface finishing and quality checking against the relevant regulations
Technical & Application Support
For U-bolts used in cone crusher and other kinds of fasteners, technical fitment can be verified and discussed before the actual production through crusher model, OEM part no, approved drawing, qualified sample or confirmed dimensions.
Essential aspects like dimensions, thread specification, material and way the part is fitted to the crusher, etc., these can be cross-verified before manufacturing to ensure correct part selection and smooth production.
Quality Management
ZHUOYUE maintains a documented quality check procedure for input materials, ongoing production, and pre-delivery examination. The requirements are validated by checking product specifications, drawings, material needs, and customer needs.
The company is getting ISO 9001 certified at the moment.
Commonly conducted inspections might encompass:
- Material: Chemical analysis per GB/T 223 or ASTM E415
- Surface hardness: Using the Rockwell method
- Dimensions and threads as per the drawing and the standards concerned
- NDT: Applying UT, MT or PT according to specifications
Inspection standards, acceptance criteria, and records are given based on requirements agreed upon.
Customers & Export Markets
ZHUOYUE provides crusher spare parts and tailored mechanical components for the mining, aggregates, and construction related industries in Southeast Asia, Middle East, Africa, and South America.
Customer names, project details, and case information are only disclosed with written authorization.
Quality Control and Inspection
At the various stages of manufacturing, the product quality is checked on the basis of the drawing, the specification of the material used and the confirmed technical requirements.
Material & Heat-Treatment Control
Material grade, heat number, and material certificates are checked when necessary.
Chemical analysis is performed if called for.
Forging and heat treatment processes are carried out as per confirmed specification and specification is periodically checked.
Hardness is verified and tested in specified range 28-32 HRC and for mechanical properties, a test is conducted when necessary.
Vital U-bolt dimension such as length of the legs, inside width and height, diameter of the rod, bend radius, thread diameter and pitch, length of the thread and matching of nuts are checked in conformity with the drawings that are approved as well as in accordance with agreed allowances.
Surface & Final Inspection
Composites are scanned for the cracks, deformation, thread damage, and other imperfections which are not acceptable to the human eye. Surface coating and packing are verified in case of requirement. Customers may get full lot inspection, if specified, whereas components that are of a quality other than what is agreed may be set aside for either rework or rejection.
Inspection Documentation
In addition to the inspection reports, material certificates, chemical analysis certificates, hardness tests, mechanical property reports, and dimensions inspection reports, the relevant NDT such as UT, MT, or PT reports will be enclosed as part of inspection documents, wherever required.
Order Information
| Attribute | Information |
|---|---|
| Brand | ZHUOYUE |
| Place of Origin | Shenyang, Liaoning, China |
| Product | Cone Crusher U-Bolt and Matching Nut |
| Delivery Time | Typically 7–15 business days for confirmed custom orders after technical and drawing approval, subject to material and production requirements |
| Supply Ability | Confirmed according to order quantity and production schedule |
| MOQ | 1 piece for available stock items; custom-order quantity confirmed according to product specification and production requirements |
| Packaging | Export wooden case, steel frame, or suitable reinforced packaging according to product size and quantity |
| Delivery Terms | EXW / FOB |
Warranty
ZHUOYUE provides warranty coverage according to the agreed sales contract and confirmed product specification.
| Item | Warranty Coverage |
|---|---|
| Warranty Period | 12 months from shipment date, or as agreed in the contract |
| Coverage | Manufacturing defects, material non-conformance, and dimensional non-conformance against the approved drawing or confirmed specification |
| Exclusions | Damage caused by improper installation, incorrect tightening, abnormal operating conditions, unauthorized modification, normal wear, or other conditions outside the agreed warranty terms |
FAQ:
Q1: How do you confirm the correct U-bolt for my cone crusher?
A: We confirm the U-bolt according to the crusher brand and model, OEM part number, original drawing, sample, or confirmed dimensions. The required U-bolt dimensions and thread specification are reviewed before production.
Q2: Can you supply custom made U-bolts for an OEM part number?
A: Yes!We can take OEM part numbers as references for technical discussions. If you tell us what crusher model you need it for, provide the drawing, sample, or even just the measurements, we'll make sure everything matches with the specification.
Q3: For making a custom U-bolt, what size details do you require?
A: Depending on the specifications, we might need you to include such data as rod diameter, inside width, inside height, leg length, bend radius, thread diameter, thread pitch, and thread length. Also, we can perform a technical review based on the original drawings or samples.
Q4: What material do you use for cone crusher U-bolts?
A: High-strength alloy steel is used according to the confirmed product specification. The final material grade and heat-treatment requirements are confirmed before production.
Q5: What are the mechanical properties of the U-bolts?
A: The current technical specification defines a tensile strength of ≥850 MPa and hardness of 28–32 HRC. Applicable inspection records can be provided according to the agreed order requirements.
Q6: Can you supply matching nuts with the U-bolts?
A: Matching nuts can be supplied where required. The nut type, thread specification, and material requirements are confirmed together with the U-bolt before production.
Q7: Can you manufacture non-standard U-bolts?
A: Yes. Non-standard U-bolts can be evaluated according to the crusher model, OEM part number, drawing, sample, or confirmed dimensions.
Q8: What is the MOQ?
A: Available stock items can be supplied from 1 piece. The MOQ for custom U-bolts depends on the product specification, material requirements, and production arrangement.
Q9: What is the lead time?
A: Lead time depends on the U-bolt size, material, quantity, drawing approval, and production schedule. The confirmed lead time is provided during quotation.
Q10: What inspection documents can you provide?
A: Depending on the order requirements, available documents may include material certificates, hardness reports, mechanical-property reports, dimensional inspection records, and applicable NDT reports.
Q11: How are U-bolts packaged for overseas shipment?
A: U-bolts are packaged according to their size, quantity, and transportation requirements. Export wooden cases, steel frames, or other suitable reinforced packaging can be used where applicable.
Q12: Which delivery terms do you support?
A: EXW and FOB terms are available. Other shipping arrangements can be discussed according to the order requirements.
