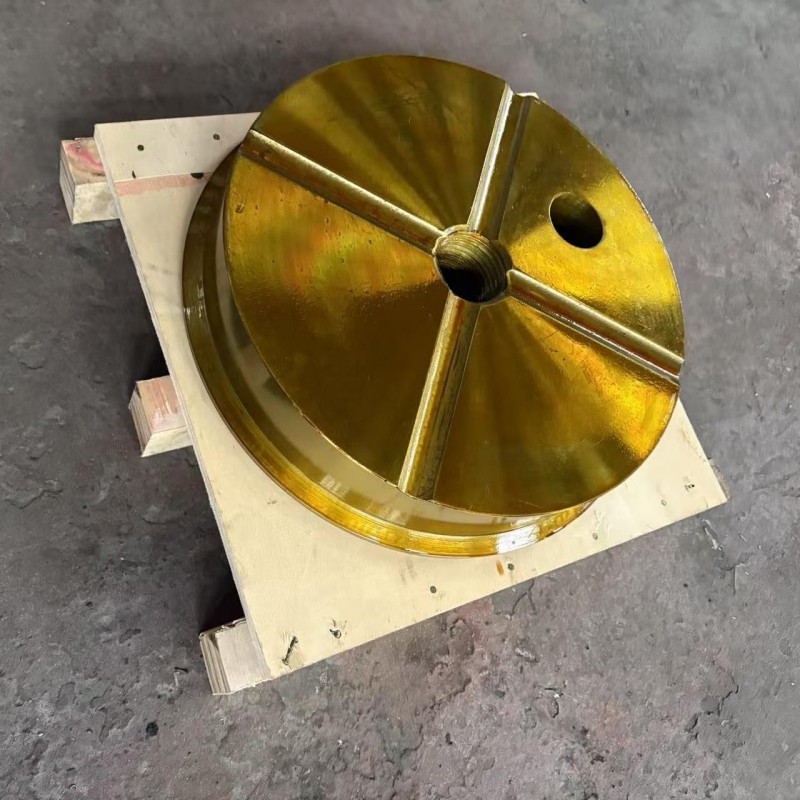

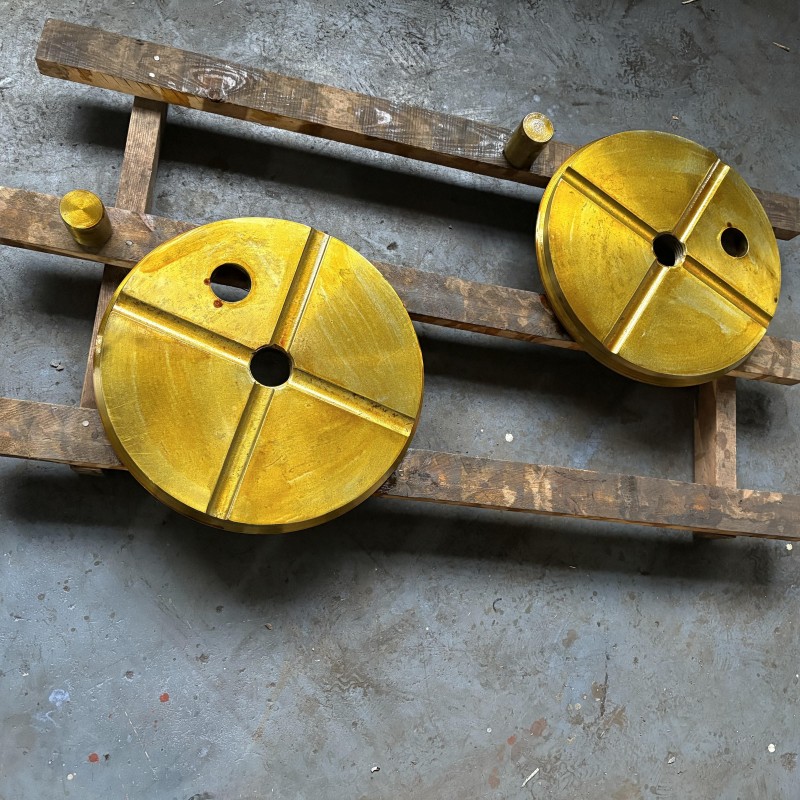

Cone Crusher Trust Bearing

Product Introduction

Cone crushers are widely used in mines, quarries and sand and gravel plants to crush rock, ore or minerals into smaller sizes. They work continuously so parts, especially wear parts, can degrade quite fast. When you put such machines and conditions together, the risk of mechanical malfunction, overheating and part degradation increases exponentially. In fact, improper handling may be responsible for up to three-quarters of machine failures.

When you decide to replace or source thrust parts for cone crushers, besides looking at the price you also have a number of other factors, for instance:

You will want to know if there is a match for the thrust bearing with regards to the crusher model and the OEM part number.You will also consider if the material type and dimension are able to withstand the operating conditions.Another issue is: do these bearings, if loaded continually, keep the surfaces together stably?One major cause of breakdown of a machine is wrong size of bearings, poor assembly or lack of regular lubricants.You will ask for verification through inspection reports of size and materials.The availability of spare parts consistently, especially through the years, is a big concern as well.

Our post-sales records and maintenance history suggest the root causes for problems with thrust bearing include incorrect component matching, wrong clearance, lubrication issues, uneven load sharing or excessive wear

• Higher axial clearance or shaft vibrations

• Ridged/uneven/crankshaft-type wear or the thrust pad and sheet

• Abnormally high temperatures

• Debris or copper shavings in oil

• Oily pressure variations related to bearing or lubrication conditions

• Less productivity and more time spent maintaining equipment

Product Solution

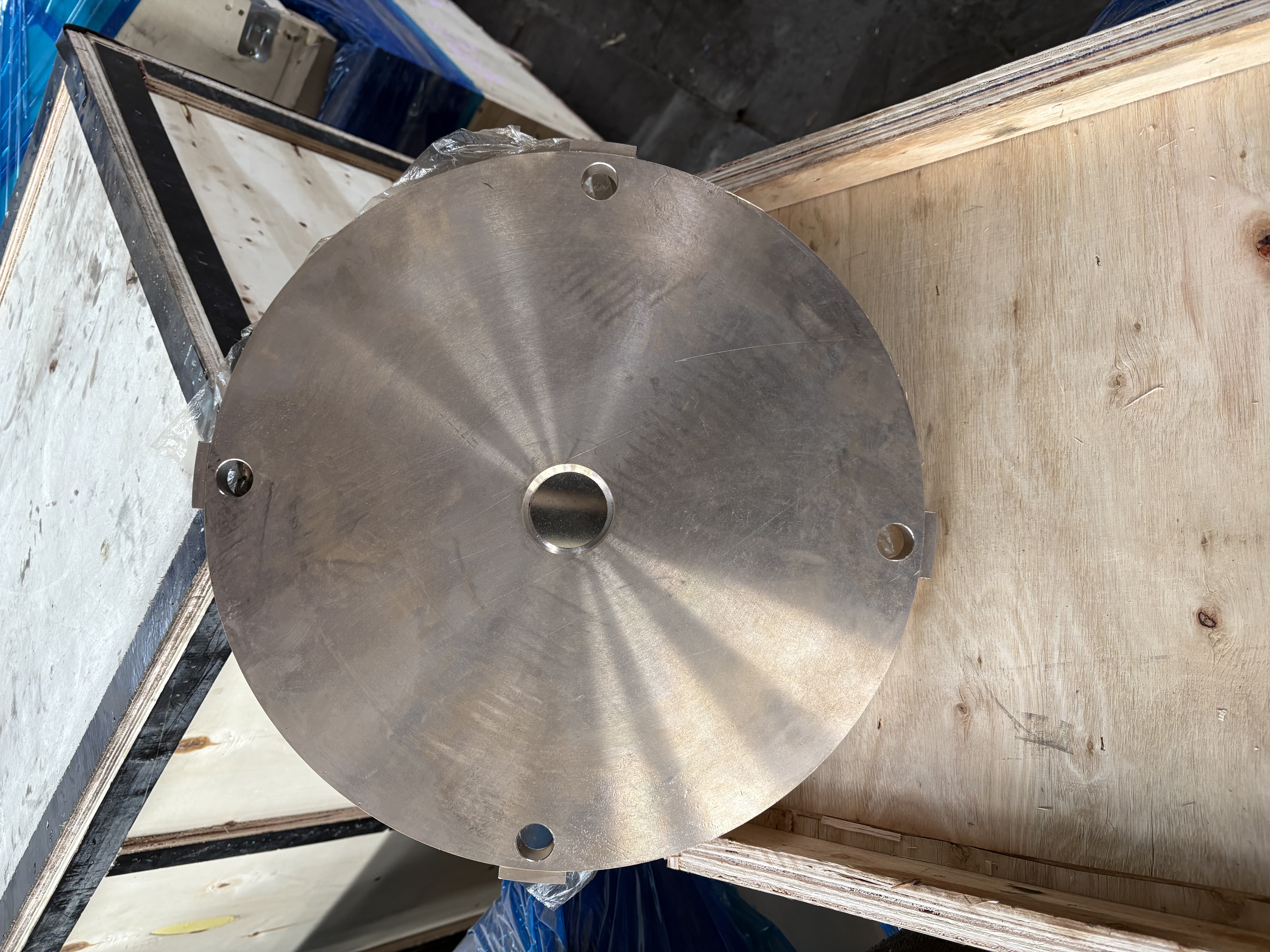

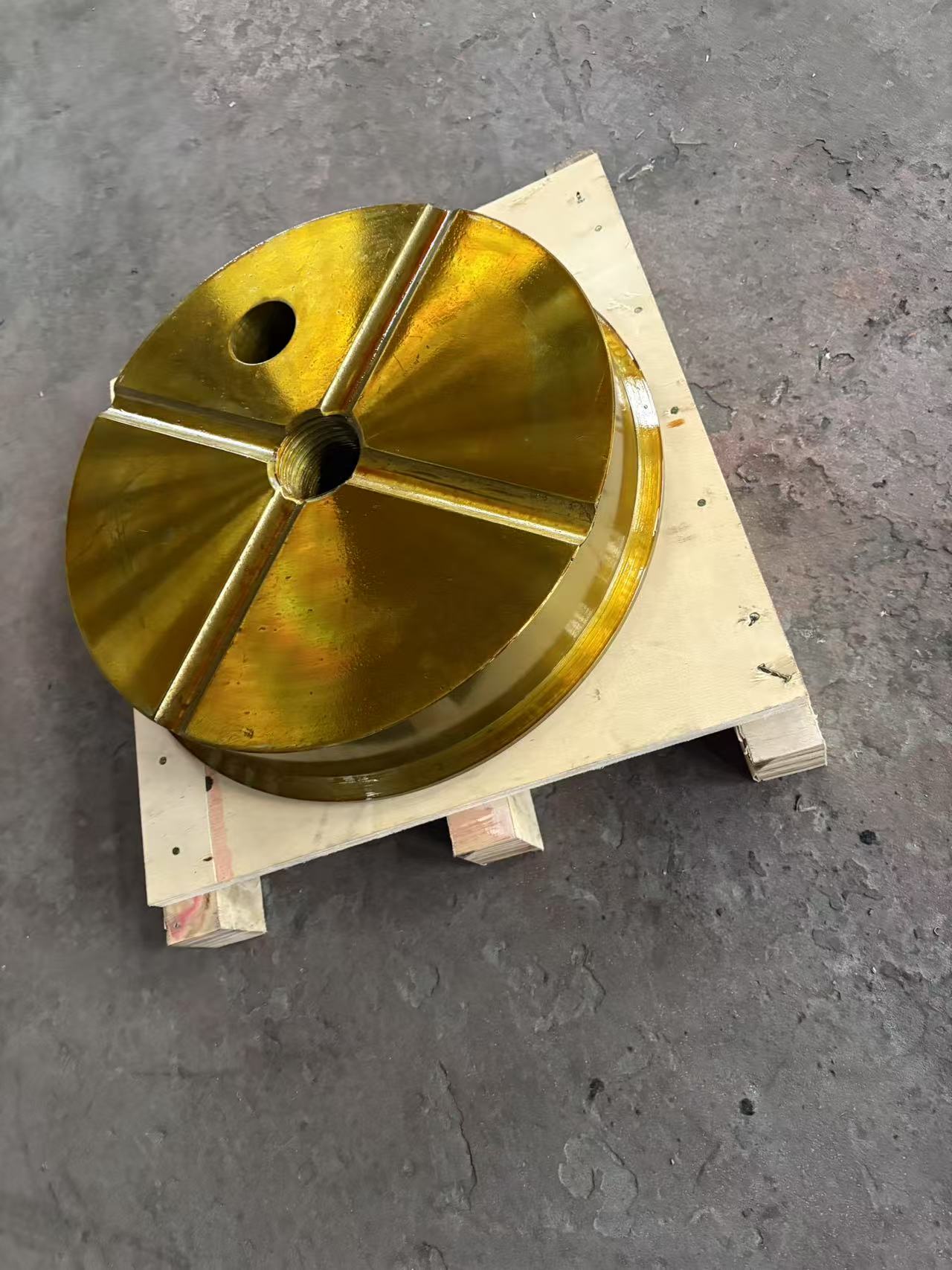

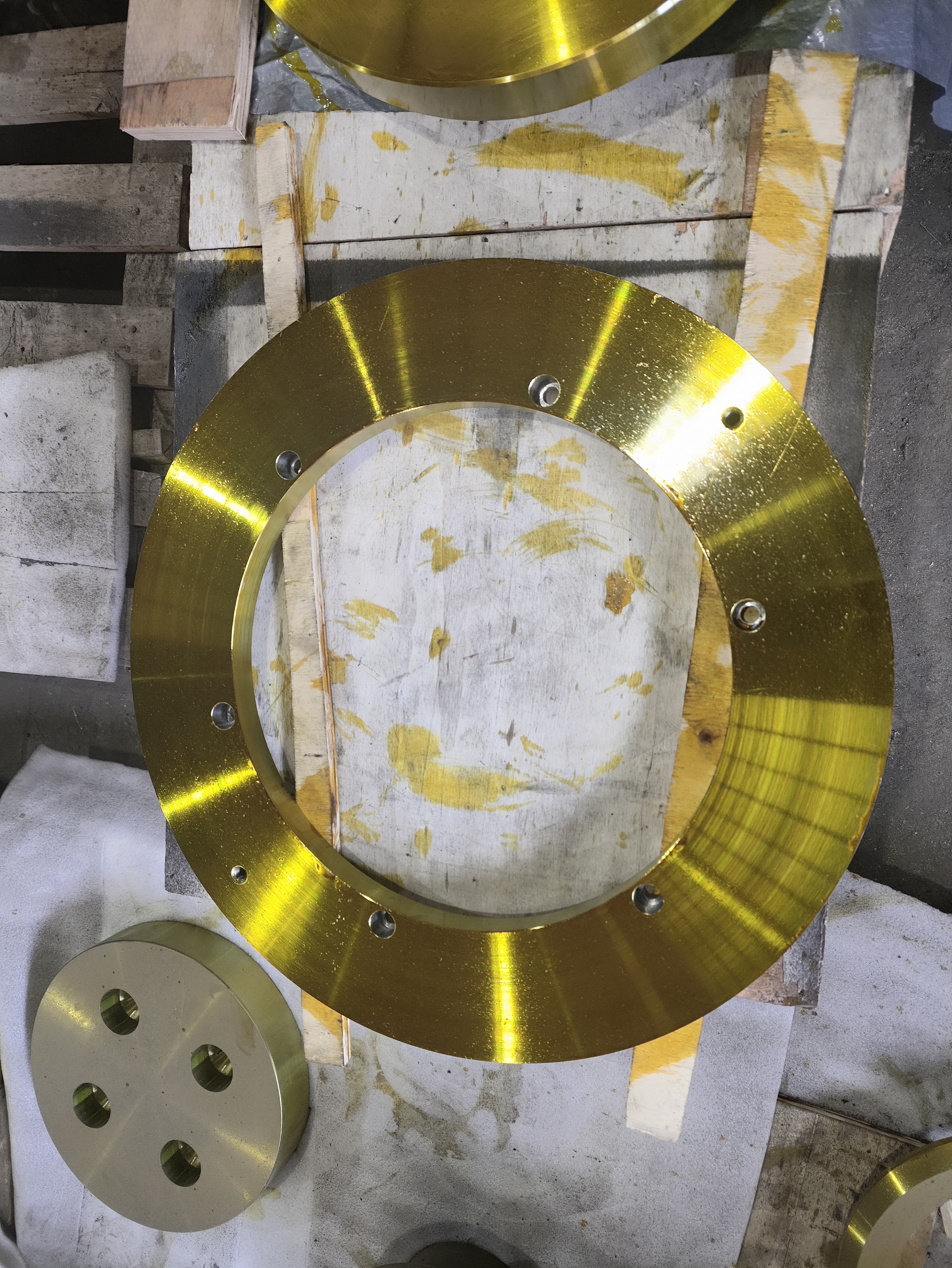

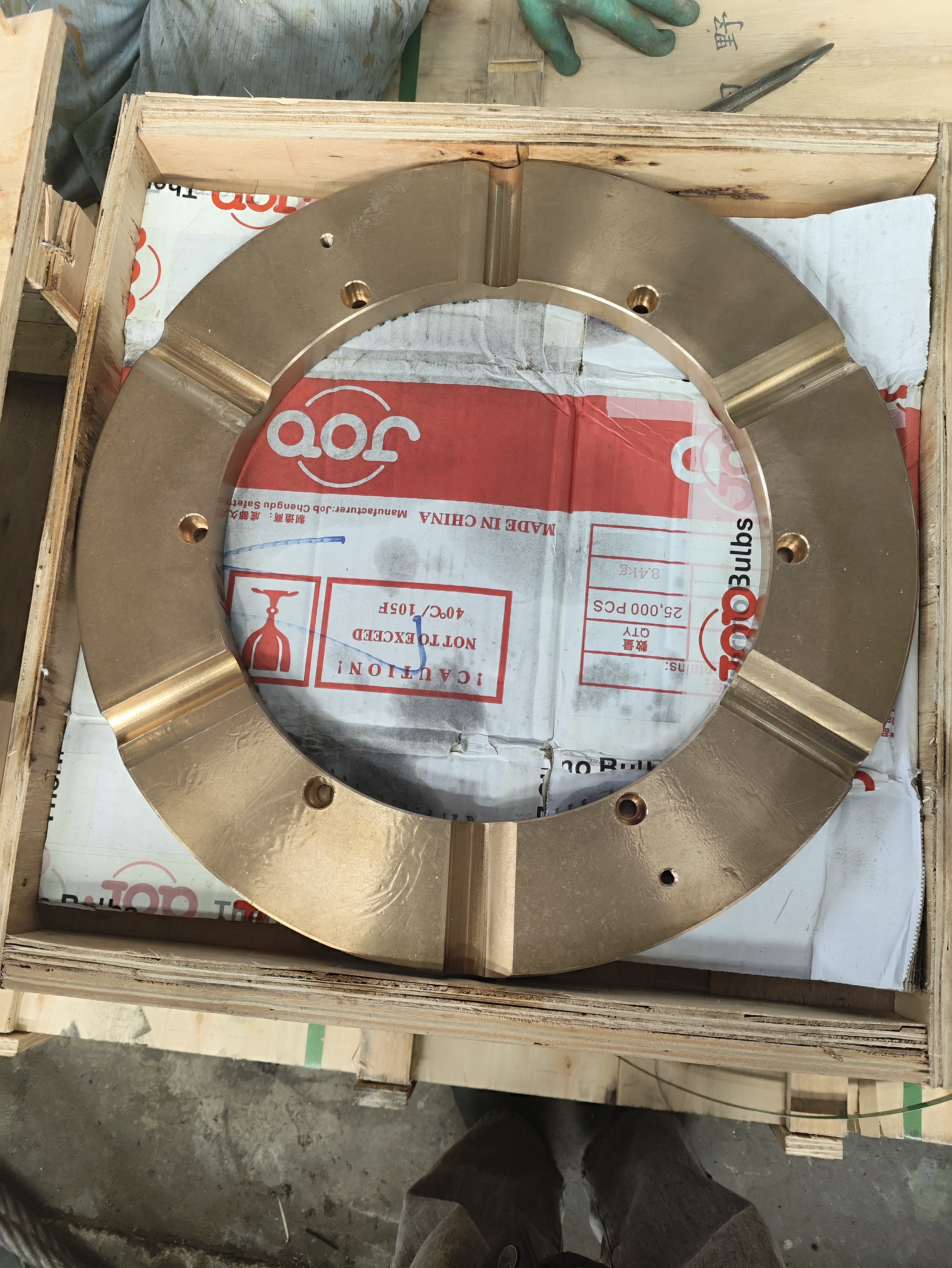

The set of thrust pads and thrust sheets by our company is used as a coordinated friction couple in the thrust bearing of cone crushers. Our production process for the mating thrust components involves manufacturing and checking them against confirmed drawings, OEM numbers, and specific customer requirements for each crusher model.

The solution mainly involves:

Dimensional matching: We make sure the level of flatness and parallelism, as well as the assembly dimensions, meet the standards of the approved engineering drawing.

Material selection: We follow the application and mechanical properties to pick the alloy and copper-alloy materials as specified.

Thrust-surface control: Close cooperation between machine shop and quality inspection to ensure consistent contact of mating friction surfaces.

Load distribution: Where applicable, contact pressure and local edge loading are assessed through engineering analysis to ensure safe contact between parts.

Quality verification: The finished goods will undergo a pre-shipment check on dimensions, hardness, surface condition, and other agreements based technical features.

Actual performance is strongly influenced by the model type of crusher, axial load, rotating speed, lubrication, assembly clearance, installation and maintenance conditions. Compatibility and specification of parameters must be checked against the relevant OEM part number or drawing before production.

Key Technical Features

Flatness: In general, thrust friction surface is the primary one, which can be finished with precision grinding to Ra ≤ 0.8 μm; however, the actual surface finish depends upon the confirmed product specification and inspection method.

Friction properties: Friction coefficient testing is performed under the specified oil-lubricated conditions only. The obtained test result along with the test method should be checked against the actual test report and test equipment.

Loading of parts: Load application on the bearing surfaces can be assessed by engineering analysis which includes, if relevant, finite element analysis. Thus, the loading of the thrust surface and the identification of potential stress concentration areas can be achieved.

Load: Load carrying capacity is different for each model of crusher, depending upon a combination of factors which mainly cover bearing sizes, material, speed of rotation and lubrication conditions; therefore, the suitable axial load shall be fixed only for one model not a universal value.

Size of parts: Measurements for flatness, parallelism, thickness along with assembly dimensions are done referring to the confirmed drawing and the agreed set of tolerance requirements.

Material and hardness: Material grade and hardness are set within the limits established by the validated technical regulations and the inspection conditions.

The results obtained from the performance data can only be understood in the context of the relevant crusher model specifications, test environment and inspection report details.

Technical parameters：

5760-2051

5760-5010

5760-2103

5761-2102

Cover Product Advantages:

1. Stable and Efficient Operation

An improved composite material formulation and precise machining reduce mechanical friction loss and minimize the rise of operating temperature even during long heavy-load operations. In actual comparative tests, these features helped to decrease friction loss by about 35% and heat generation by about 28% under the same operating conditions.

2. Longer Maintenance Interval

Under highly abrasive conditions, our thrust bearings suffer less wear than standard ones. Through real-life testing, the spindle and support frame matching parts have demonstrated a greatly improved lifecycle resulting in lesser annual replacement and consequently reduced maintenance costs.

3. Flexible and Widely Applicable Solution

Our solutions cater to most popular cone crusher brands and sizes across the market. We provide both mass production according to standard samples and bespoke solutions based on client’s drawings. We confirm the customized drawings within 3-7 business days after the technical details are sorted out.

Note: Kindly supply the OEM part number and equipment model in order for us to determine parts compatibility.

4. High Supply Capacity

Above 200 sets of standard specifications parts, which represent the most popular types used in practice, are always stocked. Items in stock will be shipped within 24 hours after your order has been confirmed. For rush orders, up to 95% of products can be shipped within 48 hours, depending on availability and the production schedule.

P.S.: For parts on custom basis, shipping time needs a separate verification.

Data Reference Note

These percentages have been made by combining internal lab tests and field data collected from some of our customers. Please keep in mind that even though they look very encouraging, a warranty of the same performance under all situations is not a reality. In fact, they just give a guideline of potential performance under different types of service conditions. If you need confirmation on how the products will behave in your specific conditions for a particular type of machine that you use, do not hesitate to ask us for it. Our technical team can definitely provide the most accurate and tailored estimate.

Product Application:

This line of thrust parts is mainly used for heavy-duty and abrasive conditions of the cone crusher. It usually works at axial load of around 500~1200kN according to model and application conditions.

Applications

- Crushing for mining

- Quarry processing

- Construction aggregate production

- Road and bridge engineering projects

- Industrial raw materials crushing

- Cement and metallurgical plants

The product allows for continuous work and also unplanned stops in the production cycle. Actual production continuity largely depends on the complete crushing system, maintenance, lubrication and work conditions.

Enterprise Strength:

Shenyang Zhuoyue Machinery Equipment Co., Ltd. is a specialized manufacturer which carries out R&D and production of cone crusher spare parts and custom machined parts. Our core technical team has 10 years of industry experience in mining machinery and Crusher Spare Parts fields, product development, process validation, manufacturing, and quality inspection. The 24-member R&D and technical team provides technical review and draught confirmation, and also development of machining processes and replacement parts.

Our workshops have 10 machining lines, 2 welding lines and 2 assembly lines, producing roughly 2,000 tons of various products a year. These capacities enable our company to produce machining, fabrication and assembling of Crusher structural parts, wear parts and custom replacement parts.

We deliver our products to customers located in Europe and the Americas with our production and inspection processes aligned product specifications, order size and customer requirements.

R&D Process

1. Requirement‍‌‍‍‌ Review: Get the crusher model, OEM part number, drawing, physical part or sample, dimensions and working conditions confirmed.

2. Material Selection: On the basis of the confirmed technical requirements, choose the suitable alloy or copper-alloy material.

3. Drawing Confirmation: Prior to production, check the major dimensions, tolerances, assembly clearances, and mating surfaces.

4. Sample Production: According to the drawing that has been approved or the original component that has been confirmed, the samples will be produced and machined.

5. Inspection & Testing: The dimensional accuracy, hardness, surface roughness, as well as other agreed-upon specifications will be checked. If possible and requested, extra friction or fatigue testing can also be done.

6. Field Trial: Record the operating conditions and the result of customer's trial for future assessment where it is feasible.

7. Batch Production: Once the sample approved and the technical specifications are confirmed, proceed with batch production.Feedback & Improvement: Customer's comments and the performance of the product will be analyzed to help improve specifications and processes in the subsequent steps.

8. I'll rewrite the AI text to be more human.I‍‌‍‍‌ will keep the message of the text generally untouched, preserve the facts (e.g., statistics), retain the general structure of the text, but make sure to give it the kind of human touch that a real person would likely put into it.

Warranty

To guarantee the quality of their products, ZHUOYUE offers a 12-month warranty on the cone crusher thrust bearings, thrust pads, and thrust sheets. These parts will be covered against manufacturing defects and non-conformance with the product under the conditions set forth in the relevant sales contract, approved technical specifications, drawings, warranty terms etc.

Quality Control and Procurement Support

Pre-Order Technicall Confirmation

After the model of the crusher, a OEM partnumber of the part, drawing, sample, dimensions, material, assembly gap, operation conditions, lubrication requirements, packaging and delivery conditions have been received, technical confirmation of the major requirements can be made before production.

Quality Control and Inspection

Quality control includes material verification, casting, machining, heat treatment, and final inspection. Depending on what is specified in the purchase order, inspection may include:

• Material verification and certificates

• Hardness testing

• Dimensional, flatness, and parallelism inspection

• Surface roughness and visual inspection

• Final dimensional verification

Inspection records can be provided if needed.

One-Stop Procurement Support

We can assist you with product selection, technical and drawing confirmation, customize manufacturing, supply inspection documents, installation support, clearances and lubrication recommendations, and replacement or troubleshooting support.

Communication after selling products are only available if product quality issues have been confirmed through tests.

FAQ:

Q1:‍‌‍‍‌ What details do you require verifying compatibility?

Along with the crusher make, model number, and original equipment manufacturer (OEM) part number, please also share if possible the original drawing or sample. The load, speed, and lubrication condition the machine works under will also help in confirming the technical aspects.

Q2: What's the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) for selected stock items is 1 piece. With respect to customized non-standard parts, MOQ generally is about 30-50 pieces per batch depending on the product structure and manufacturing process.

Q3: Are you able to manufacture according to an OEM drawing or sample?

Yes. We can customize thrust parts based on drawings, OEM numbers, or qualified samples as long a technical review has been made and details have been confirmed.

Q4: Are samples provided on request?

We do stock some standard items in a range which are also available as samples. If you ask for a sample custom part, then the process will depend on having the drawing checked, agreeing on the material, and having a clear process for production.

Q5: Which inspection reports can you supply?

We have different types of certificates and reports ready to show you the exact material quality used in the components. If it fits your order, we can deliver certificates for materials, hardness and dimensional inspection, and other agreed upon test reports.

Q6: What information should I give for a customized thrust bearing?

We request you to provide the model number of the machine, OEM part number, drawings or samples, essential dimensions and if available the working-load, speed, lubrication conditions and details of any previous failure.

Q7: How do I find out if bearing needs to be replaced?

Few indicators are a sudden increase in temperature, uneven deterioration, axial clearance increase, excessive debris and unusual performance. This has to be considered altogether together with the lubrication and the full crusher system.

Q8: How do you package the products?

The small and medium products are packed in appropriate wooden boxes. Large items are fixed in metal frames and wrapped up properly with water-proof and impact proof materials to secure the transportation.

Q9: What shipping terms do you support?

Ex Works and Free On Board are shipping terms we can accommodate. Loading and shipping ports, as well as shipping arrangements will be set at order confirmation

Q10: How fast is your production cycle?

Lead times for in-stock items vary according to the current inventory stock level. On the other hand, lead times for customized products should include drawing, material, production scheduling, and inspection requirements confirmation phases before delivery.

Q11: What payment terms do you use?

Transfer against document and Letter of Credit might be suitable after negotiating order value and cooperation terms. The specific payment arrangements are made known with the quotation or contract documents.

Q12: What about the warranty?

The Sales Agreement shall define both warranty period and coverage. We will offer our technical staff to discuss with your engineers and find the proper replacement/refurbishment solution that fits our mutual terms on the confirmed defective ‍‌‍‍‌product.
