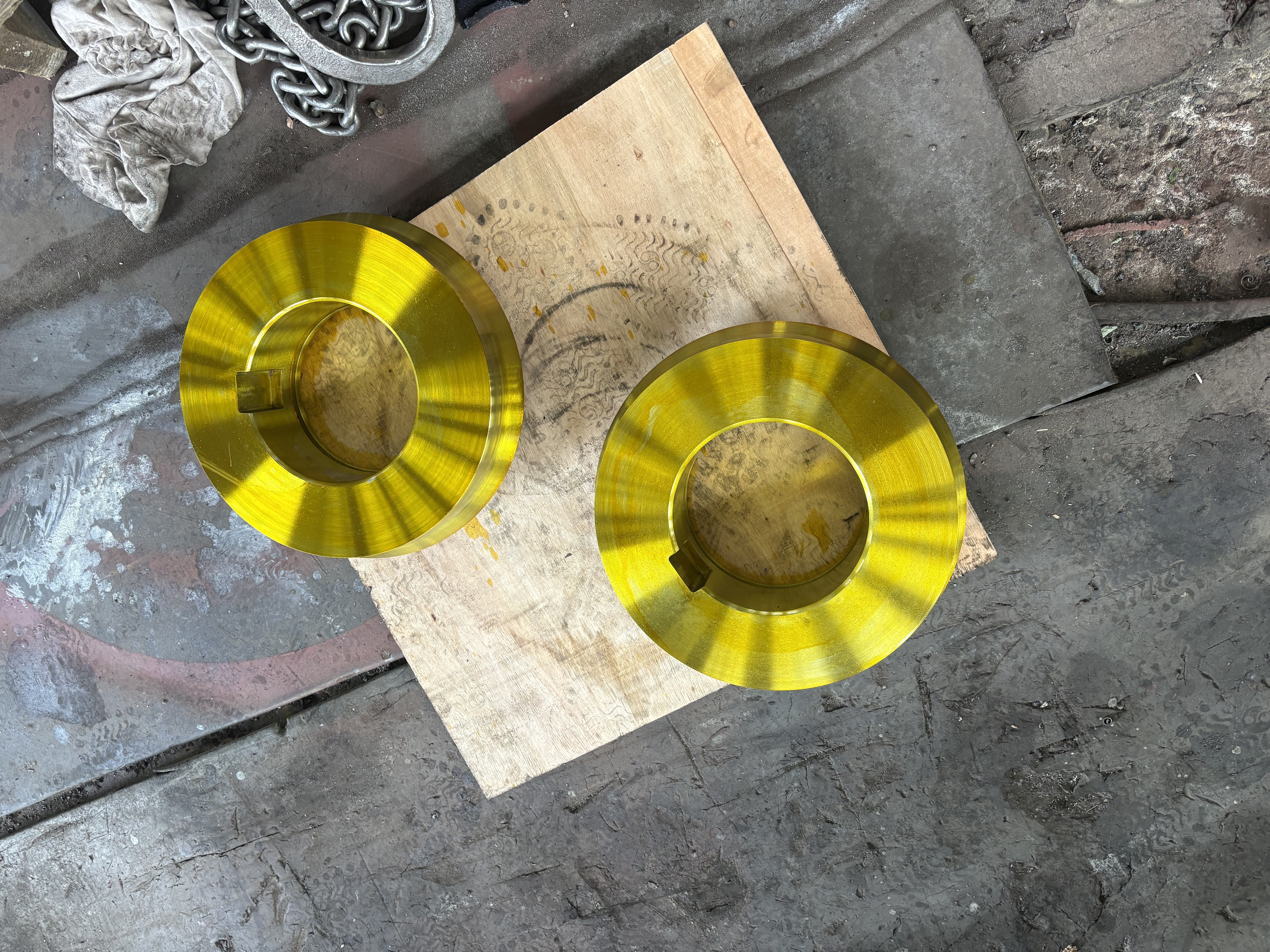

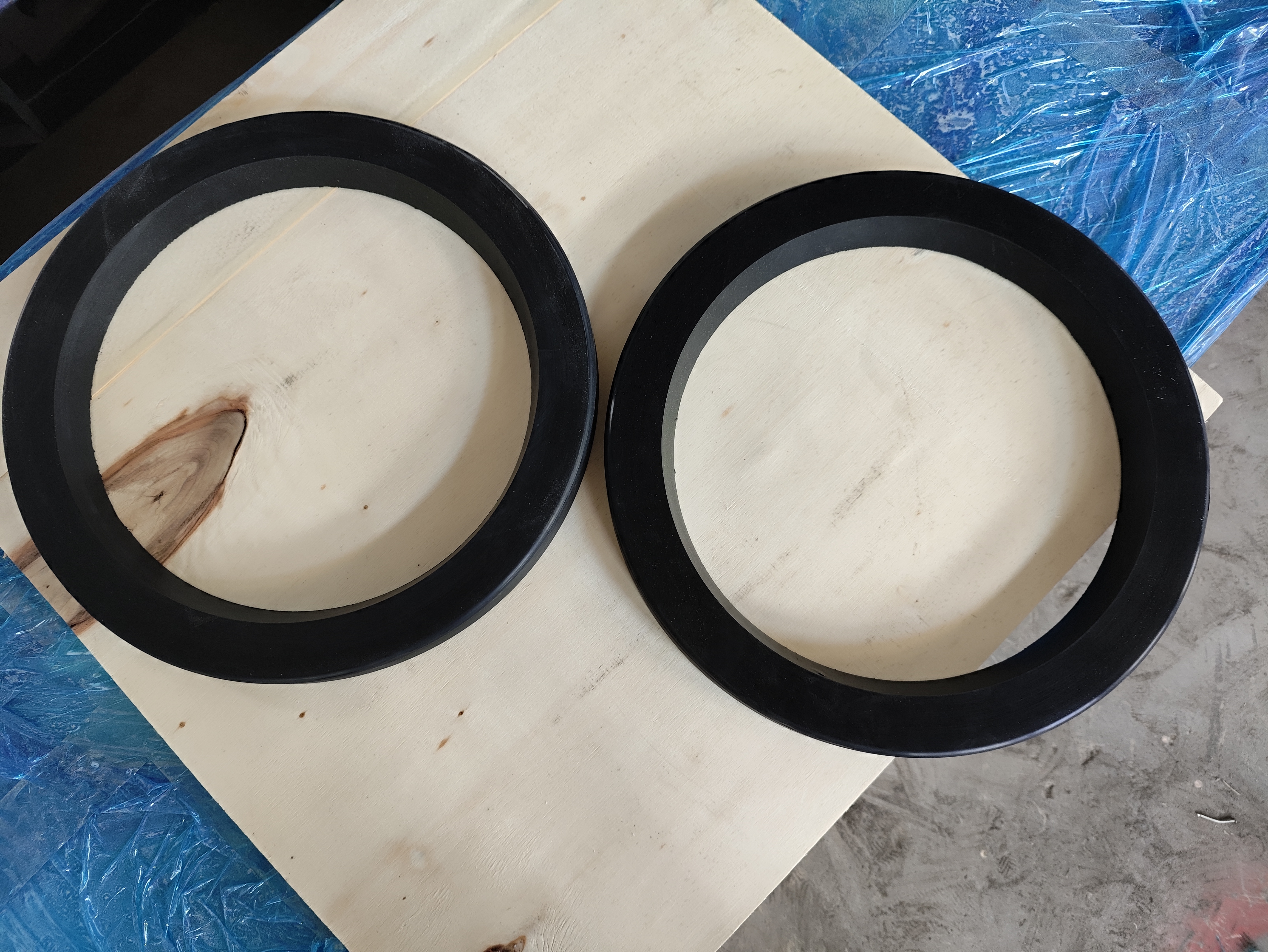

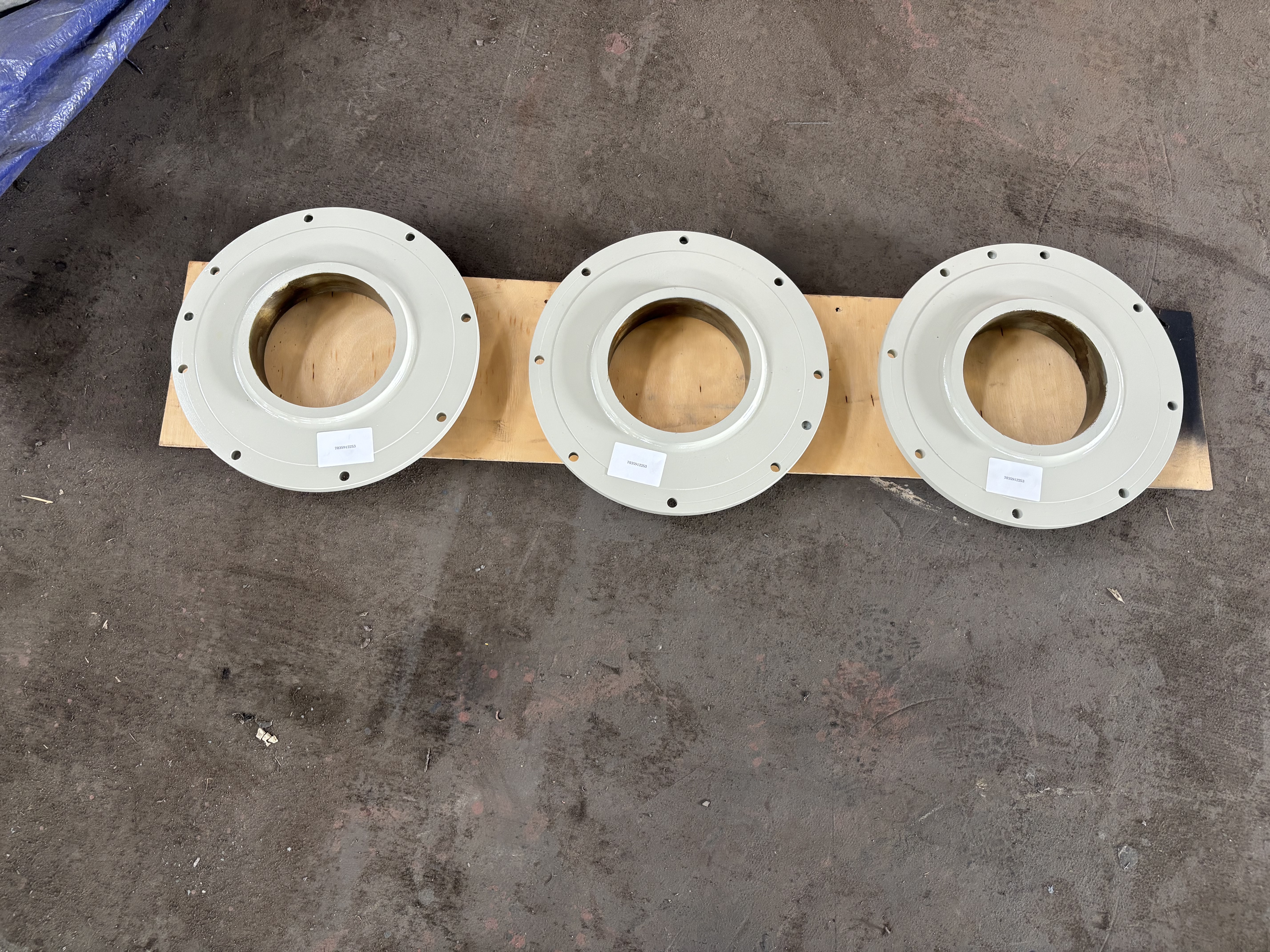

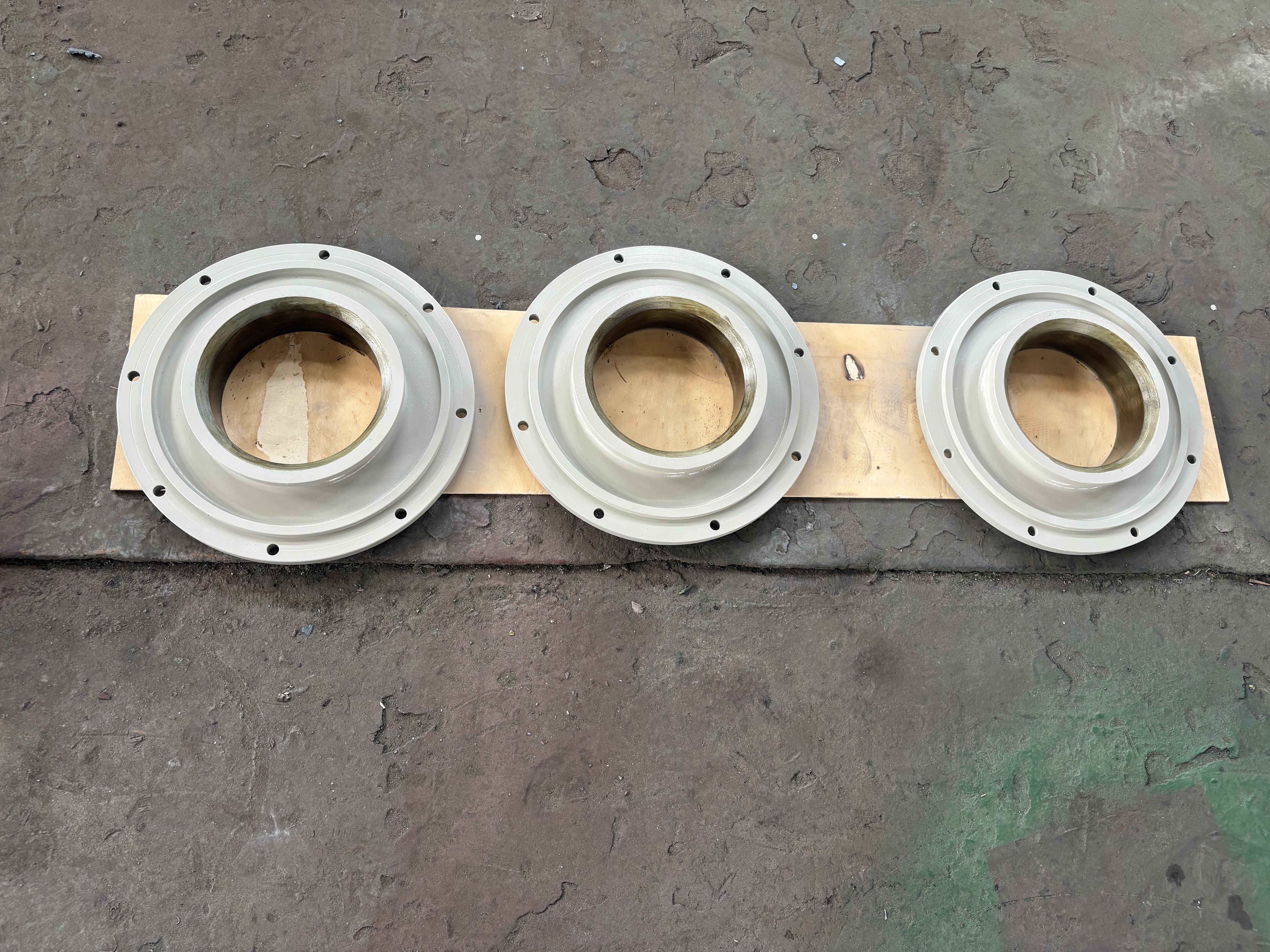

Cone Crusher Oil Separator Ring
Brand :ZHUOYUE
Product origin :Shenyang, Liaoning, China
Delivery time :One week
Supply capacity :1,000 cases per year
1、±0.015 mm CNC Precision: High-accuracy machining guarantees exact drop-in replacement without on-site grinding, shimming, or modifications.
2、Dual-Protection Oil Sealing: Precision-engineered to eliminate lubrication oil leakage and block ultra-fine abrasive dust under high-vibration mining conditions.
3、100% Fitment Verification: Cross-verified against OEM numbers, CAD drawings, or physical samples prior to production, backed by mandatory pre-dispatch test-fitting.
4、30-Day Ex-Factory Delivery: Complete precision manufacturing and seaworthy export packaging within 30 days of drawing approval and order confirmation.
442.7193-01
6358-7662
3591-2253
Pain Point & Engineered Solution
The Industry Pain Point: In heavy mining operations, even a tiny 0.5 mm dimensional deviation on cone crusher replacement parts—such as oil separator rings or dust covers—can cause critical lube oil contamination, rapid bearing destruction, or immediate machine blockage. For international buyers, importing non-conforming components results in costly operational downtime, high idle-labor expenses, and prohibitive international return freight costs.
Our Engineered Solution: We eliminate global procurement risk through 100% Pre-Assembly Verification and Strict Tolerance Control. Before casting and machining, our technical team cross-verifies dimensions against your specific equipment model, OEM part number, CAD drawings, or worn field samples. Every oil separator ring undergoes full CMM (Coordinate Measuring Machine) inspection and physical test-fitting in our facility. Live video proof and dimensional audit reports are provided to your engineering team prior to dispatch, ensuring 100% direct drop-in installation on site.
Technical Specifications (Real Factory Data)
OEM Part Number Compatibility & Cross-Reference
Key Product Advantages
100% Fitment Precision: Eliminates on-site modification work (grinding or shimming) during installation, dramatically shortening maintenance downtime.
Superior Oil Sealing & Protection: Precision-machined grooves effectively seal lubrication channels, preventing abrasive dust ingress and oil leakage under continuous heavy loads.
Extended Wear Resistance: Built using premium high-lead bronze and heat-treated alloy steel formulations that resist heavy impact, intense friction, and oil-slurry erosion.
Product Applications & Operating Compatibility
Our high-precision oil separator rings and associated components are widely deployed across demanding heavy-industry environments, including:
Metallic Mining: Hard-rock crushing circuits (Gold, Copper, Iron Ore, Nickel).
Aggregate & Quarrying: High-capacity limestone, granite, basalt, and river stone crushing lines.
Severe Duty Environments: Engineered to perform reliably in extreme temperature conditions, high-vibration environments, and dust-heavy operations.
Company Infrastructure & Manufacturing Capability
10+ Years Core Experience: Our engineering team brings over a decade of hands-on technical expertise in mining machinery design, material selection, and process control.
Strict Process-Based QC: Manufacturing processes adhere to standardized quality control protocols—from spectral material testing to final dimensional measurement—ensuring full material-to-product traceability.
24 R&D & Technical Specialists: Dedicated in-house engineering group specialized in reverse engineering from worn field samples, custom CAD drawing verification, and process optimization.
Solid Infrastructure: Operating 10 Precision Machining Lines, 2 Heavy Welding Lines, and 2 Complete Assembly Lines at our manufacturing base.
2,000 Tons Annual Output: Robust scale ensuring stable material supply, high capacity, and predictable production schedules.
Reverse Engineering & Custom Blueprint Service
For legacy machinery or custom crushing setups where original CAD drawings are missing:
3D Scanning & Sample Measurement: Send us worn physical samples or site measurements.
Blueprint Re-creation: Our technical team generates 2D manufacturing blueprints and 3D CAD models.
Client Sign-off: Machining begins only after full technical approval of shop drawings from your engineering team.
Seaworthy Export Packaging & Logistics
To guarantee zero corrosion, zero salt-spray impact, and physical protection during long-distance maritime freight:
Surface Protection: Deep industrial solvent cleaning and heavy-duty VCI (Vapor Corrosion Inhibitor) rust-preventive oil coating.
Moisture Barrier: Sealed inside heavy-gauge, waterproof plastic vacuum bags with industrial desiccant packs.
Outer Packaging: Encased in heavy-duty, fumigation-free wooden crates or welded channel-steel skid frames with internal blocking and bracing for safe forklift and crane handling.
Quality Inspection Standards & Process
Each batch of oil separator rings is inspected against the approved engineering drawings, material specifications, and customer requirements. Key inspection results are recorded to support product quality verification and traceability.
1. Material Composition Analysis
Chemical composition is checked by spectrographic analysis before production to verify that the material meets the specified grade and applicable material requirements.
2. Dimensional Inspection
Critical dimensions, including inner diameter, outer diameter, and mating dimensions, are inspected using CMM, calipers, or micrometers. Dimensional results are checked against the approved drawings, with a current inspection tolerance of ±0.015 mm. ISO 286 requirements are applied where relevant to specified fits and tolerances.
3. Non-Destructive Testing
Ultrasonic testing (UT) and liquid penetrant testing (PT) can be applied to critical castings or structural areas according to the applicable material specification, inspection procedure, and customer acceptance criteria.
4. Assembly Verification
Before shipment, the oil separator ring can be trial-fitted with the corresponding main model or matching component to verify dimensional compatibility and proper assembly.
5. Inspection Documentation
For export orders, quality documentation can include an EN 10204 3.1 Material Test Certificate (MTC) and a detailed dimensional inspection report. Additional inspection records can be provided according to project or customer requirements.
After-Sales Service & Risk Protection
12-Month Quality Warranty: Full warranty coverage for 12 months starting from the date of arrival at your port or installation on site.
Expedited Replacement Guarantee: In the rare event of a manufacturing defect or dimensional mismatch, we produce and ship free replacement parts via priority air/sea freight or issue direct credit compensation.
Lifetime Technical Support: Remote technical assistance for installation queries, maintenance guidance, and wear analysis throughout the component's operational lifespan.
Frequently Asked Questions (FAQ)
Q1: How do you confirm technical details before starting production?
A: You can provide the equipment model, OEM part code, technical CAD drawings, or physical sample measurements. Our technical team cross-checks all specifications and produces a 2D/3D shop drawing for your formal confirmation prior to machining.
Q2: What if we don't have original technical drawings?
A: We offer full reverse engineering support. You can provide worn component measurements or physical samples, and our technical department will recreate exact 2D/3D CAD manufacturing drawings for your review.
Q3: What is your Minimum Order Quantity (MOQ) and delivery lead time?
A: We support flexible MOQs starting from 1 piece for sample evaluatio
