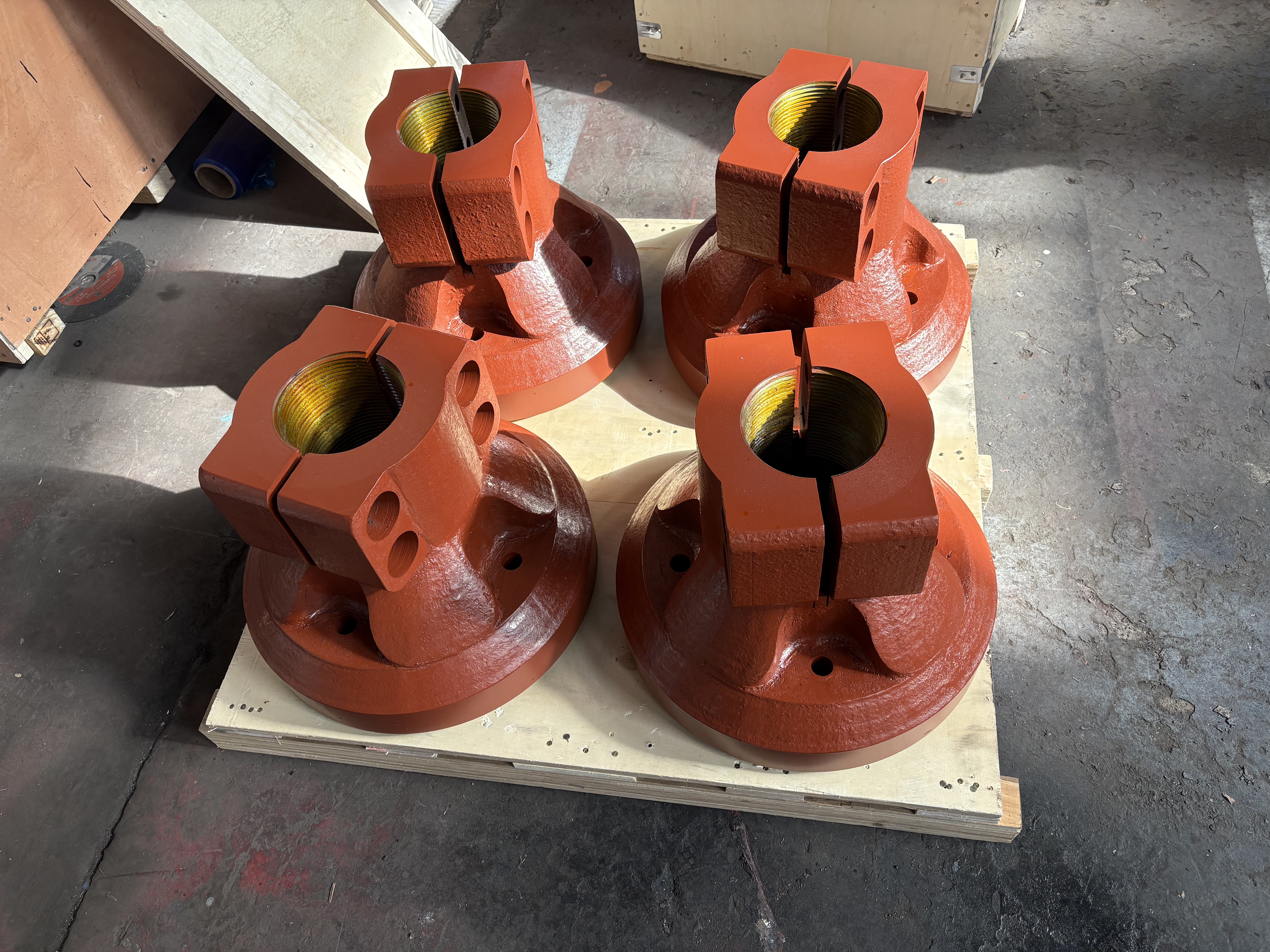

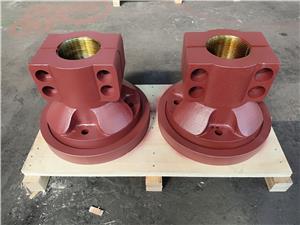

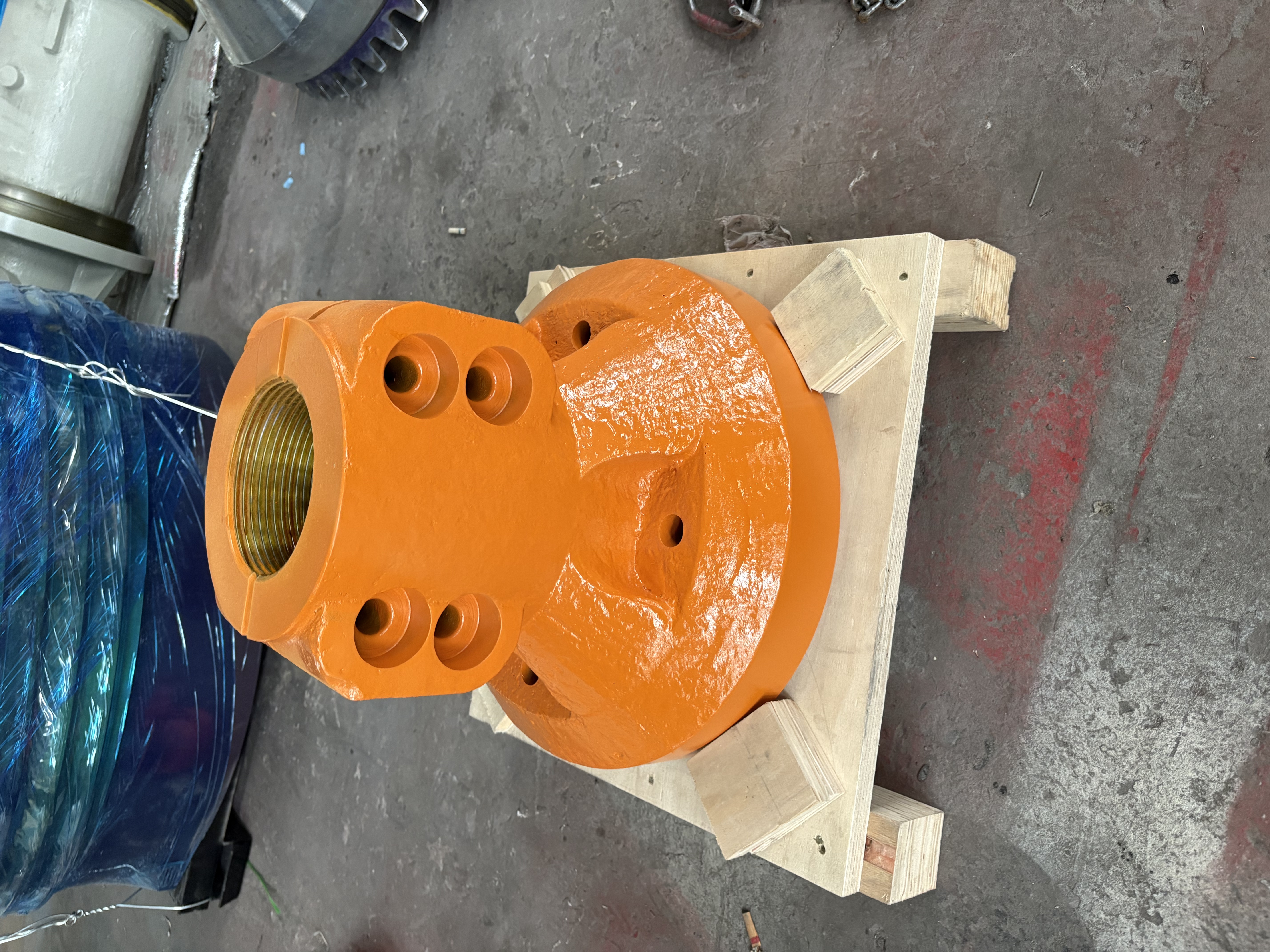

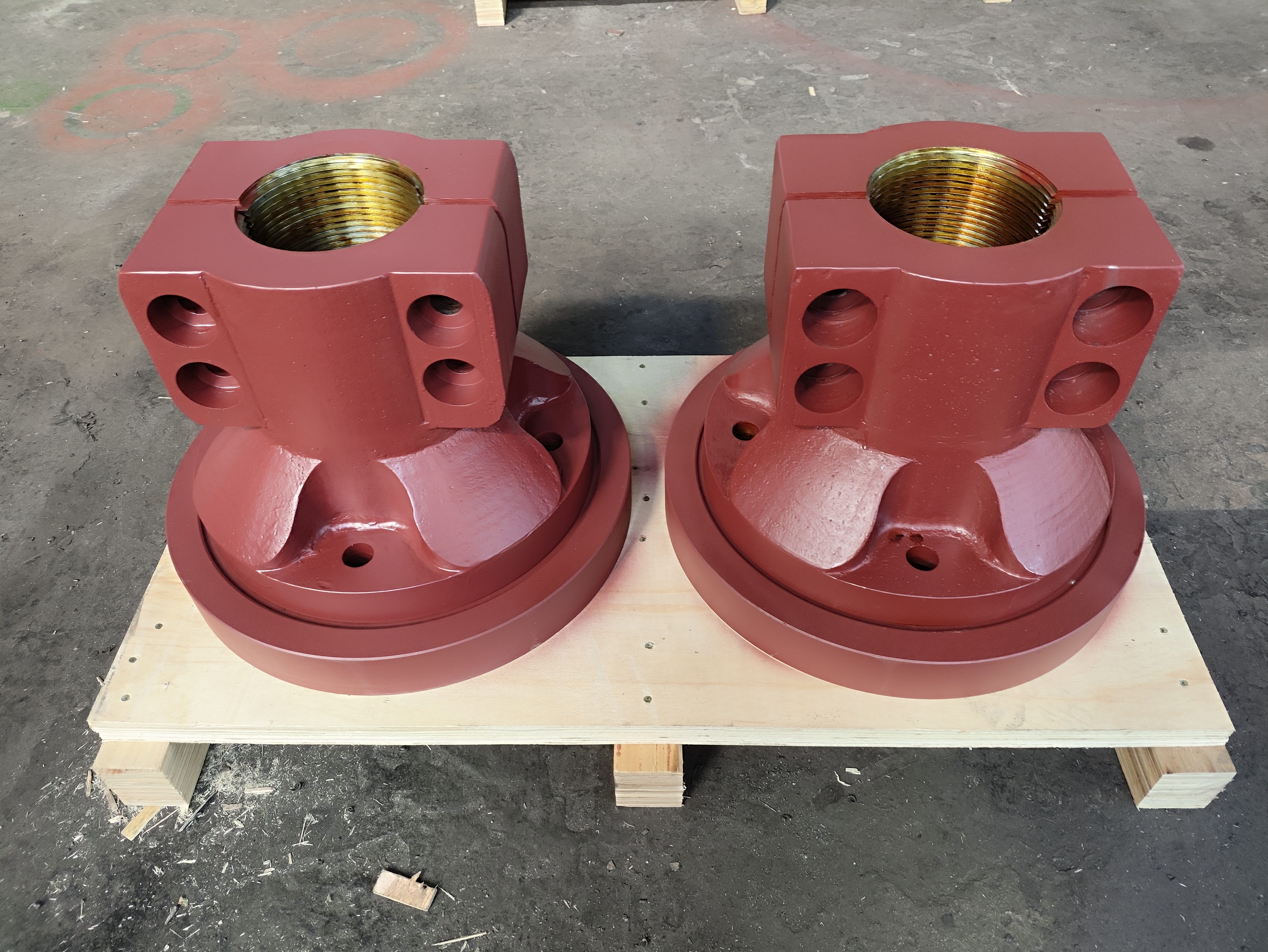

Cone Crusher Main Shaft Nut

Dimensional deviation or inconsistent thread fit in cone crusher spindle nuts, head nuts and mantle nuts can make installation and preload control more difficult. Under heavy-duty crushing conditions, this may contribute to loosening, uneven contact and accelerated thread wear.

Our Solution: Controlled Manufacturing and Precision Machining

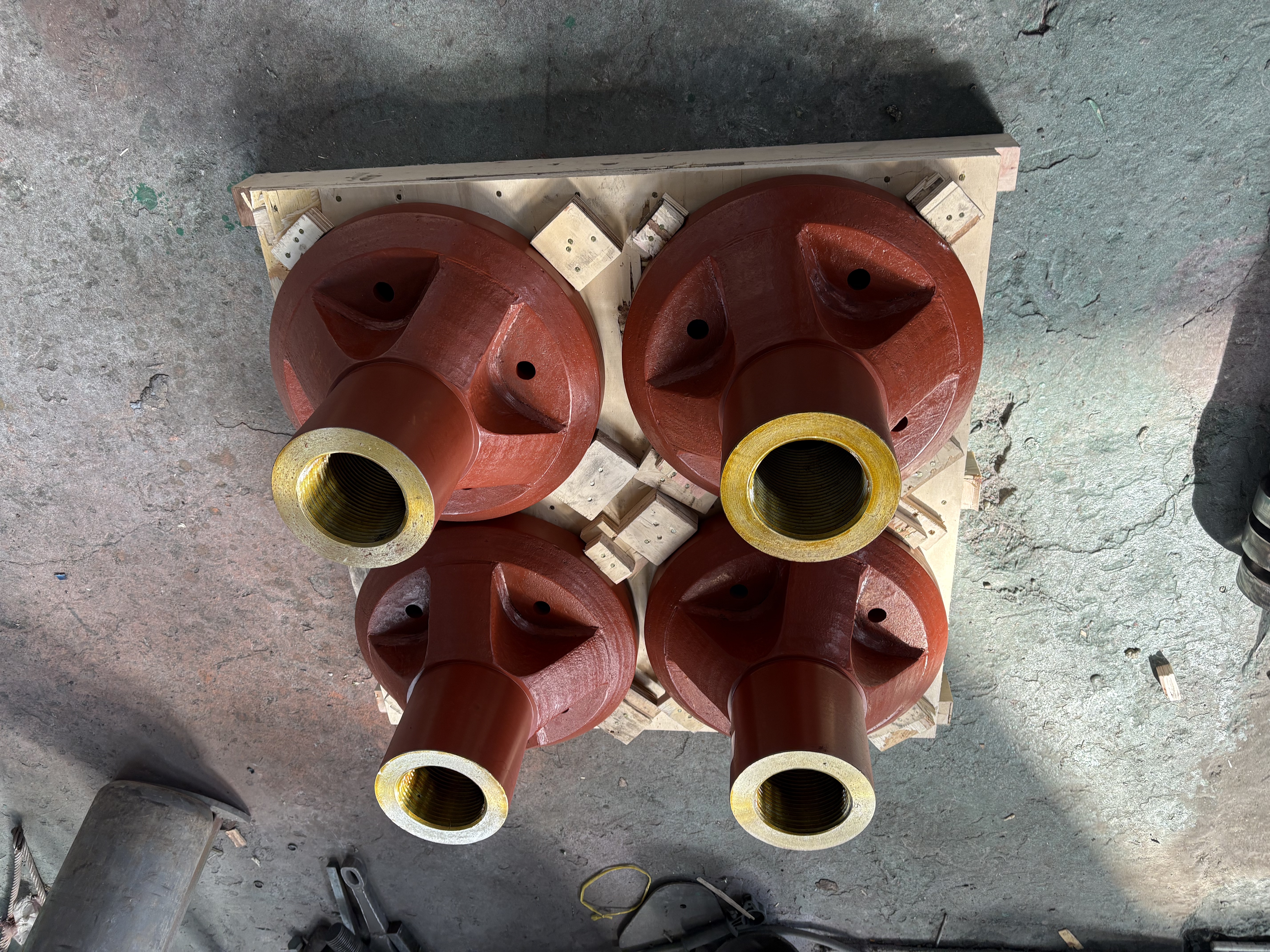

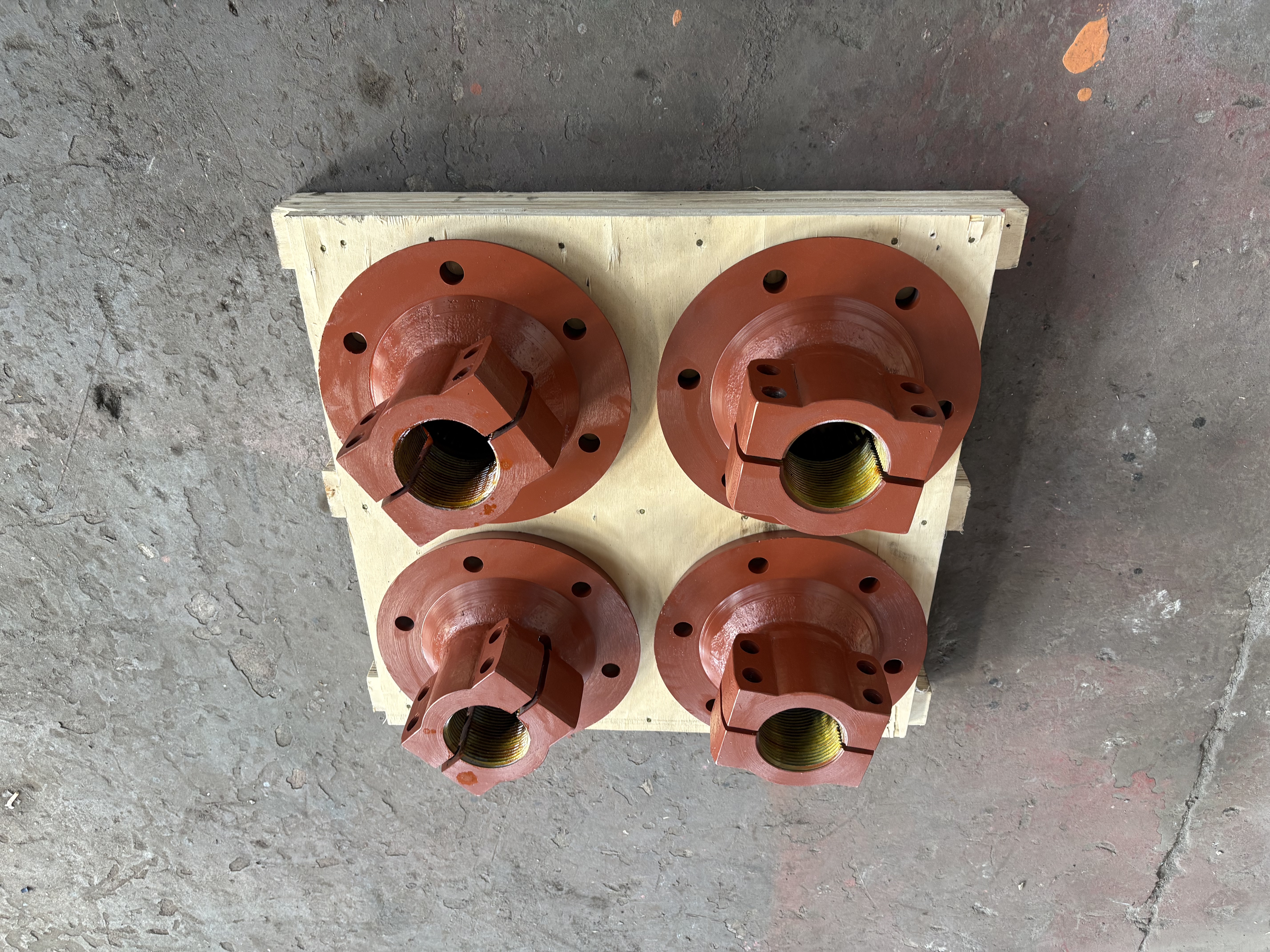

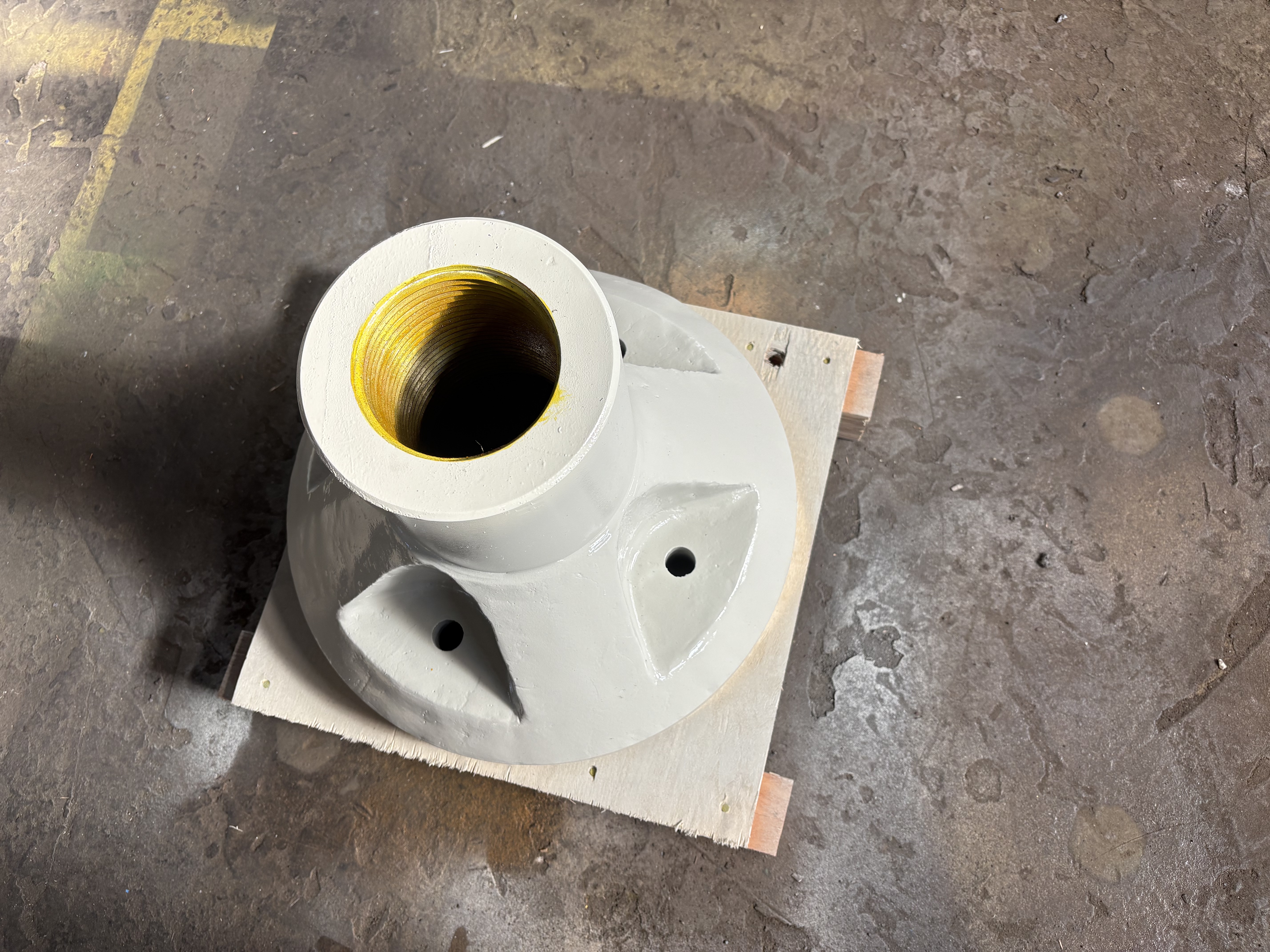

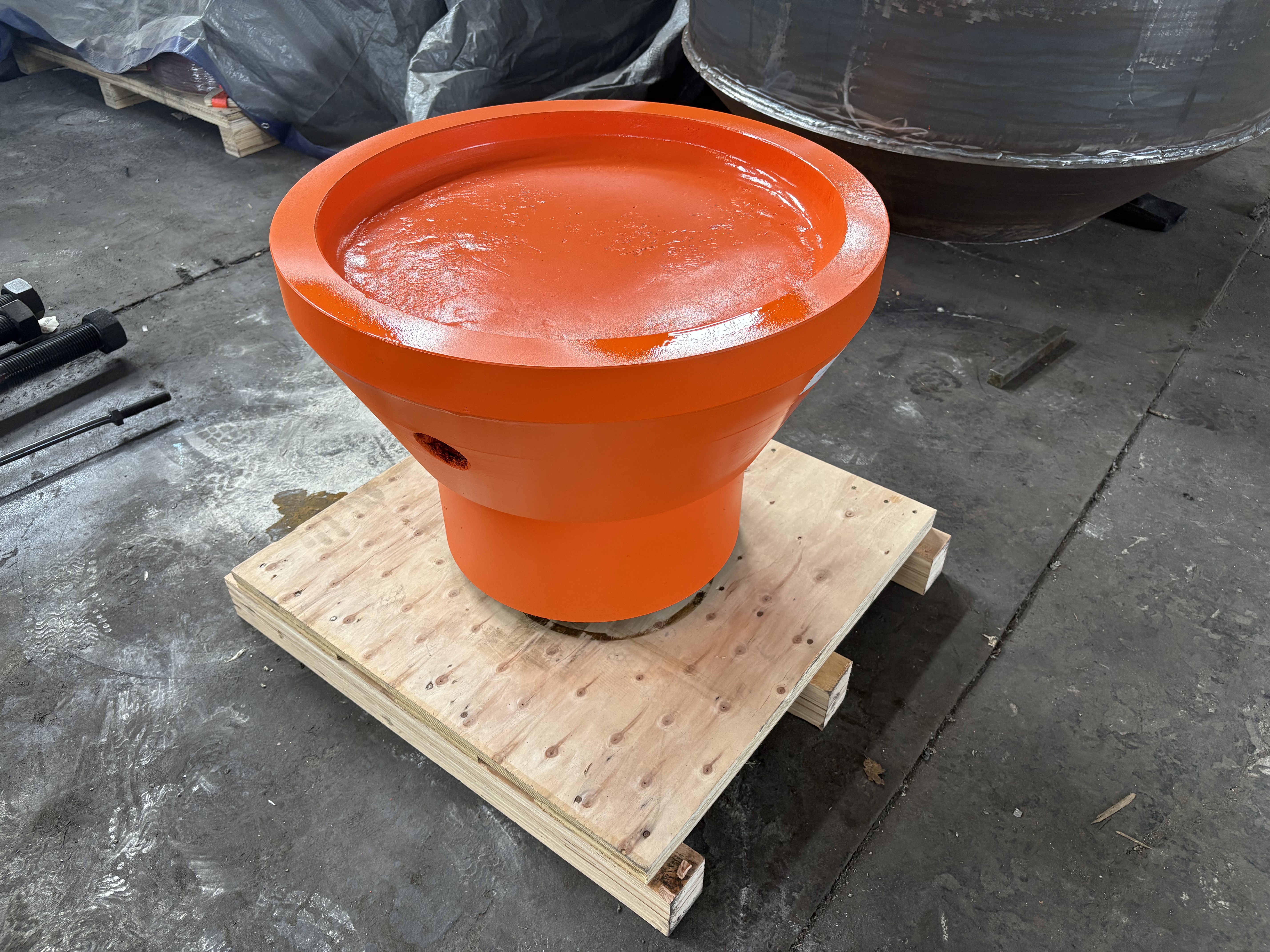

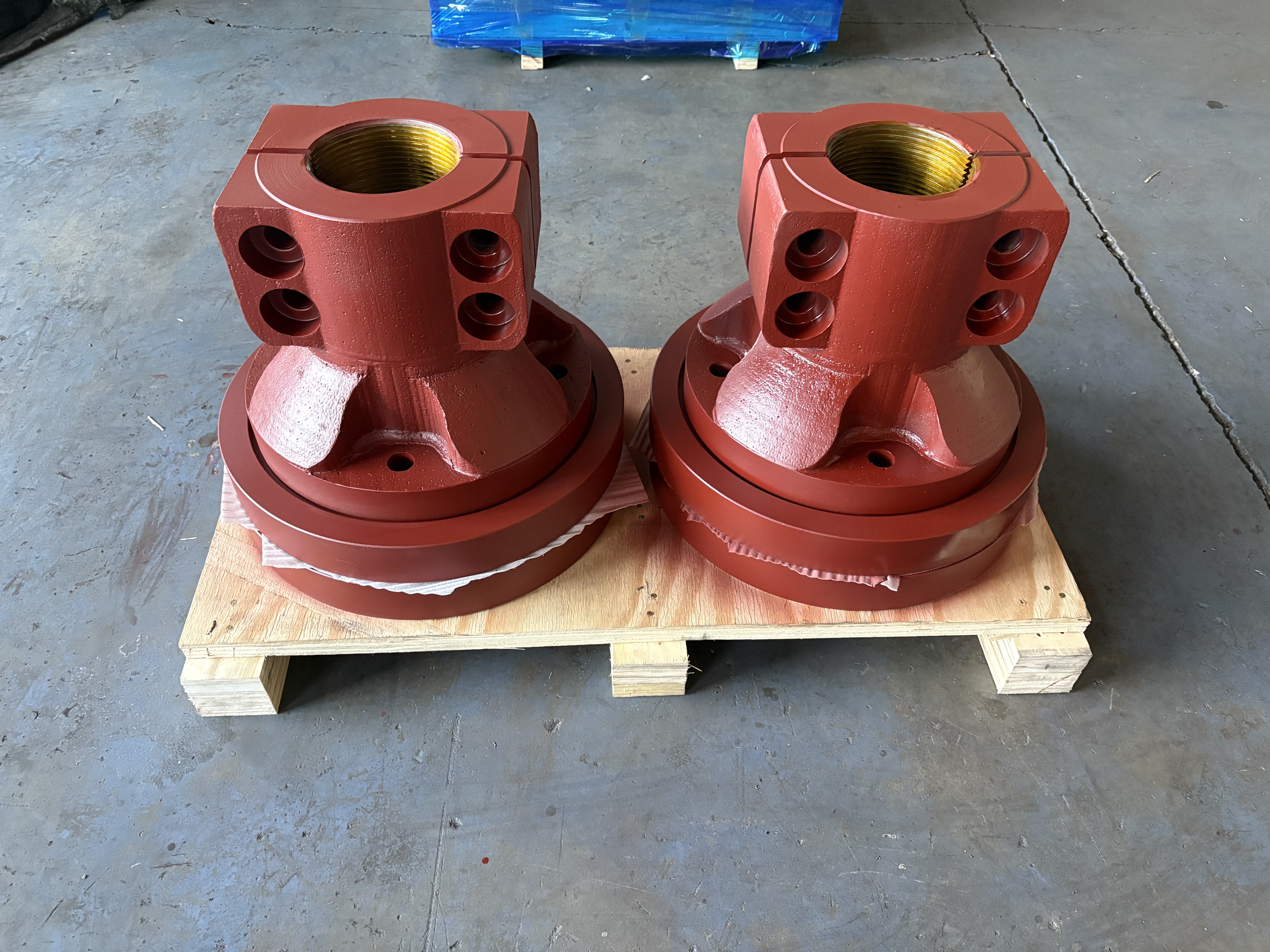

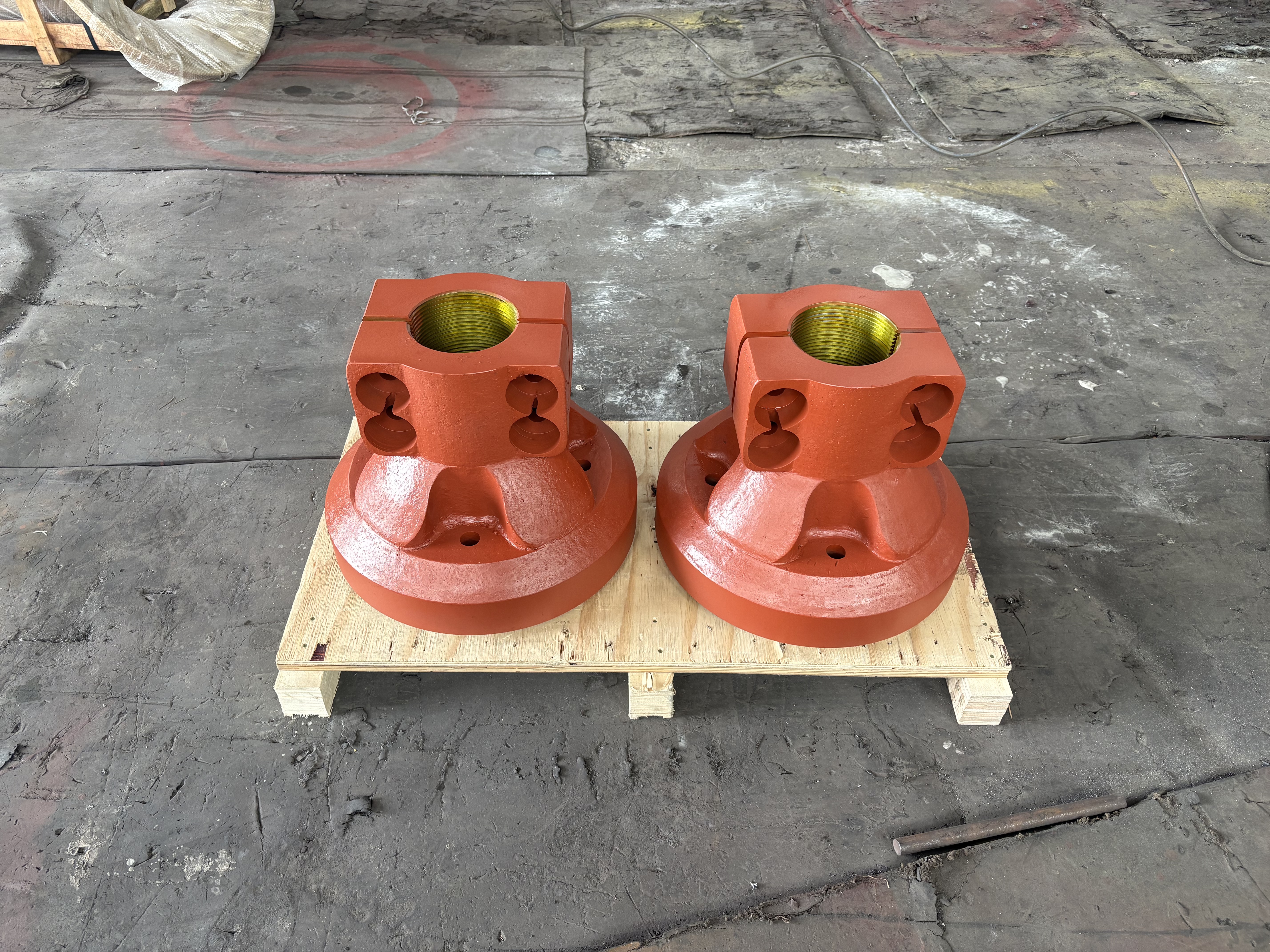

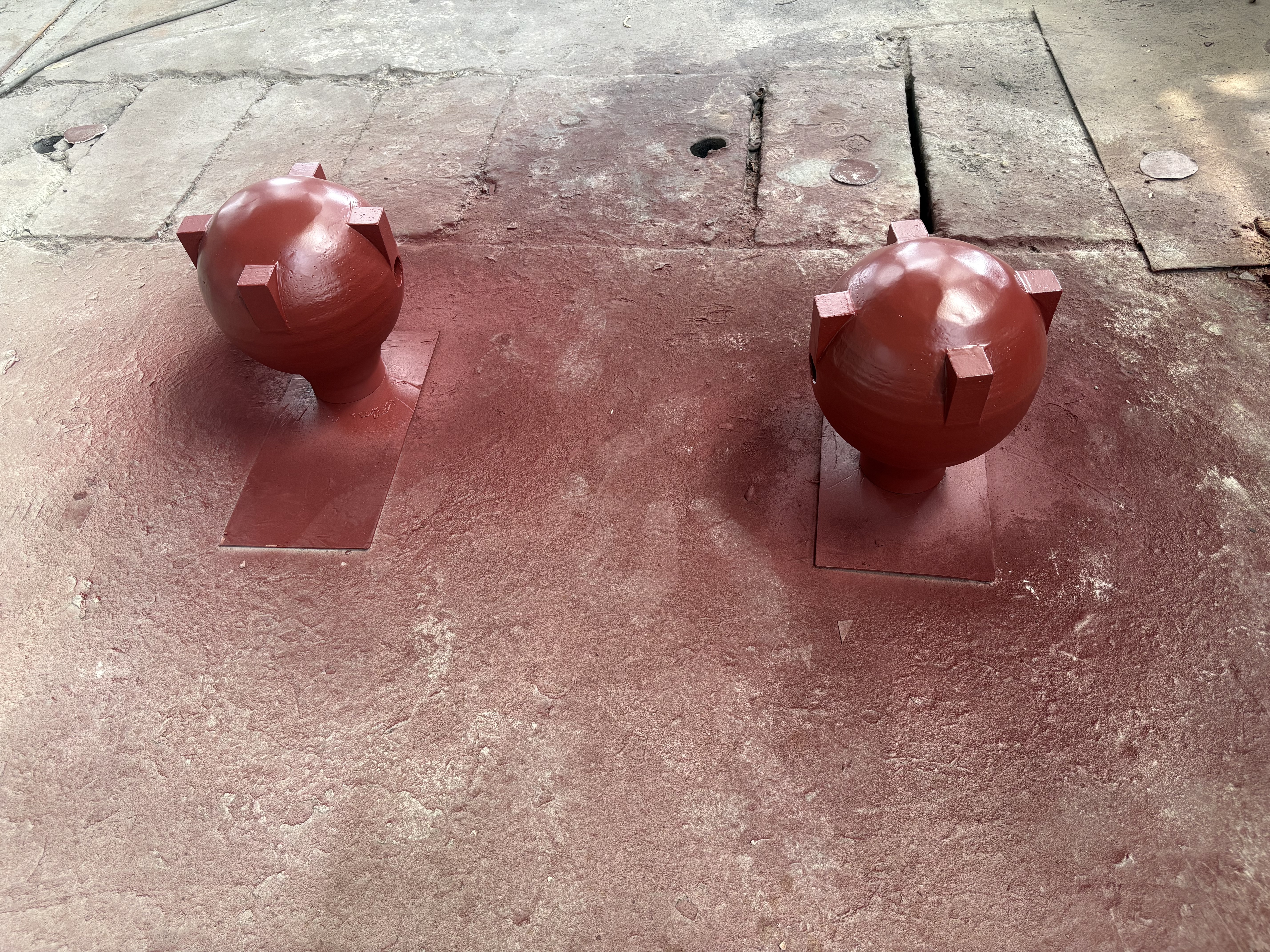

We manufacture spindle nuts, ball nuts, head nuts with wear rings, mantle nuts and cone head assemblies according to the confirmed crusher model, drawing and technical requirements. Applicable forged components use 42CrMo alloy steel with controlled forging and heat treatment to support material consistency and structural stability.

Critical threads and mating surfaces are CNC-machined to the specified tolerances and inspected before delivery, helping ensure consistent assembly, stable fastening performance and accurate matching with the customer's crusher.

1. Stable Mechanical Performance for Heavy-Duty Applications

Die forging provides a dense and uniform material structure, helping reduce internal porosity and shrinkage defects. Integral quenching and high-temperature tempering balance hardness and toughness for components exposed to impact and cyclic loading. Reference mechanical properties include tensile strength of 1080–1200 MPa, yield strength of ≥930 MPa, elongation of ≥12%, and reduction of area of ≥55%. Actual values should be confirmed by the material and inspection requirements of each production batch.

2. Precision Thread Fit for Reliable Assembly

Internal threads are CNC-machined to the specified 6H tolerance class, with thread pitch and tooth profile controlled according to the approved drawing. Consistent thread engagement helps distribute tightening loads more evenly and reduce localized contact stress, supporting reliable assembly with the corresponding cone crusher components. For matched components manufactured to confirmed OEM drawings and specifications, the controlled thread fit is designed to support stable fastening during heavy-duty operation.

3. Improved Wear Resistance in Critical Working Areas

For components requiring additional surface protection, localized surface hardening can achieve a reference surface hardness of HRC 55–60, while the matrix hardness is controlled within HRC 32–38. The combination of a tougher core and harder working surface helps protect wear-prone areas while maintaining the required dimensional relationship between mating components.

4. Reduced Replacement and Maintenance Effort

Application-matched manufacturing and controlled inspection help reduce the risk of dimensional or thread mismatch during replacement. Where verified by specific field applications, maintenance-related improvements may include shorter replacement time and lower component-related operating costs; reported savings of 20–28% should be treated as application-specific reference data rather than a guaranteed result. Actual maintenance results vary with crusher model, operating conditions, maintenance practices and replacement frequency.

Product Application:

Corporate Strength:

After-Sales Service:

We provide structured after-sales support covering technical assistance, installation guidance, warranty handling, and spare-parts supply.

Standard delivery time: approximately 1 month after order confirmation.

Quality warranty: 12 months from the date of delivery.

Technical Assistance:

· Remote technical support is available with an initial response within 24 hours.

· Video-based troubleshooting or operation guidance can be arranged within 48 hours when required.

Installation Support:

· On-site installation assistance can be provided upon request.

· Travel and accommodation expenses are discussed separately according to the service requirements.

Warranty Policy:

· Warranty coverage applies to the main frame, hydraulic system, electrical system, and manufacturing defects.

· Normal wear parts, including liners and mantles, are excluded from warranty coverage.

Spare Parts Availability:

· Standard spare parts are supplied from available stock where applicable.

· Special or non-standard parts are arranged according to the required production schedule.

Comprehensive Quality Control System：

To ensure the stability and consistency of each batch of products, the company has established a comprehensive quality management system covering raw material procurement, production and processing, heat treatment, assembly, and factory inspection.Key inspections are performed according to applicable ISO/ASTM standards, material specifications, approved technical drawings, and customer requirements.

The main inspection items during product manufacturing include:

· Incoming material inspection

· Raw material composition analysis

· Heat treatment quality inspection

· Mechanical performance testing

· ISO 6g standard thread accuracy testing

· Critical dimensional tolerance testing

· Assembly compatibility verification

Before product delivery, the following key performance indicators will also be sampled and tested:

· Hardness

· Tensile strength

· Thread machining accuracy

· Assembly performance

Through rigorous quality control processes, we ensure that our products can adapt to the complex working conditions of mining equipment, such as long-term high loads and high vibrations, thereby reducing on-site installation errors, lowering the risk of equipment failure, and improving overall service life.
