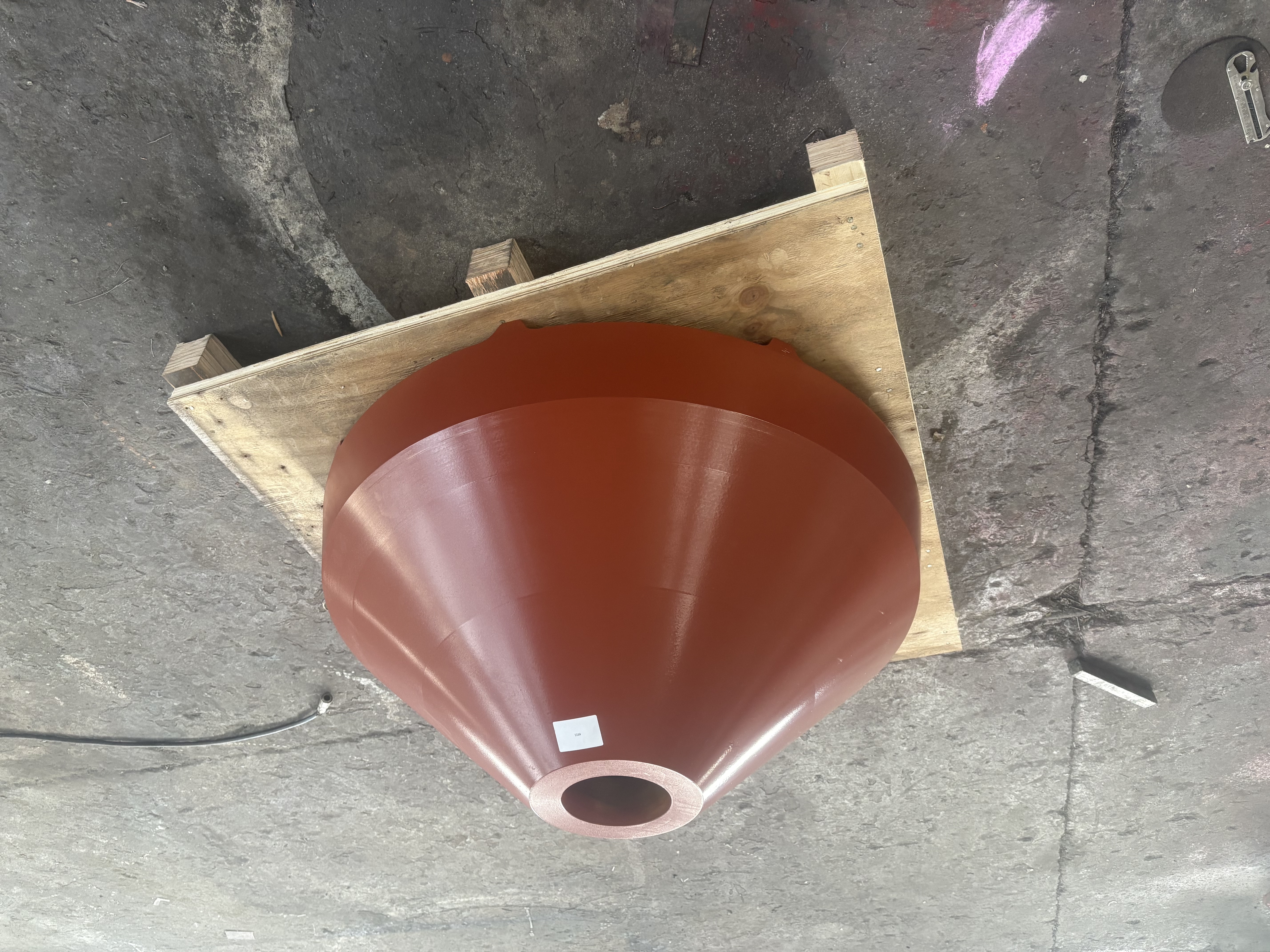

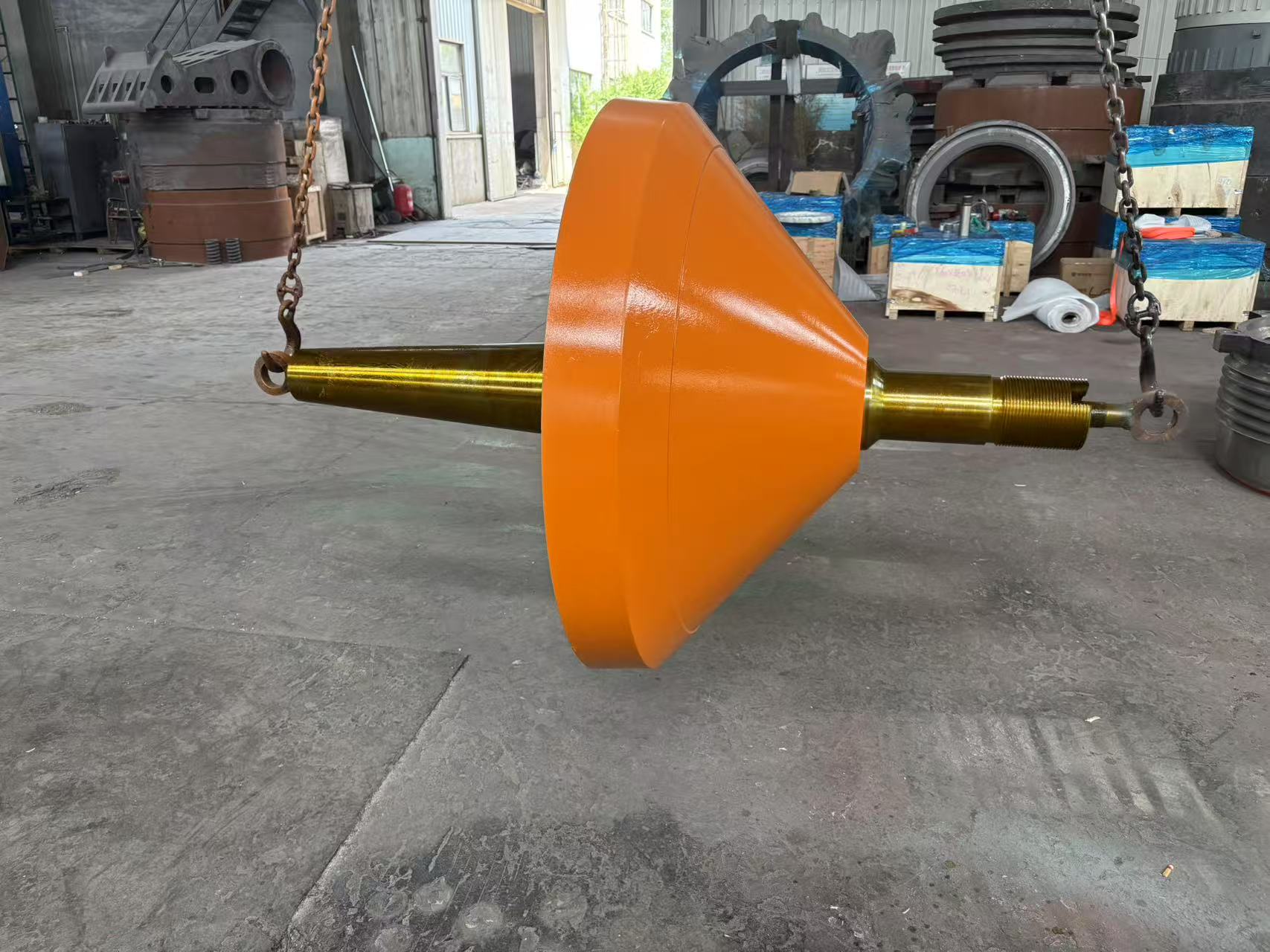

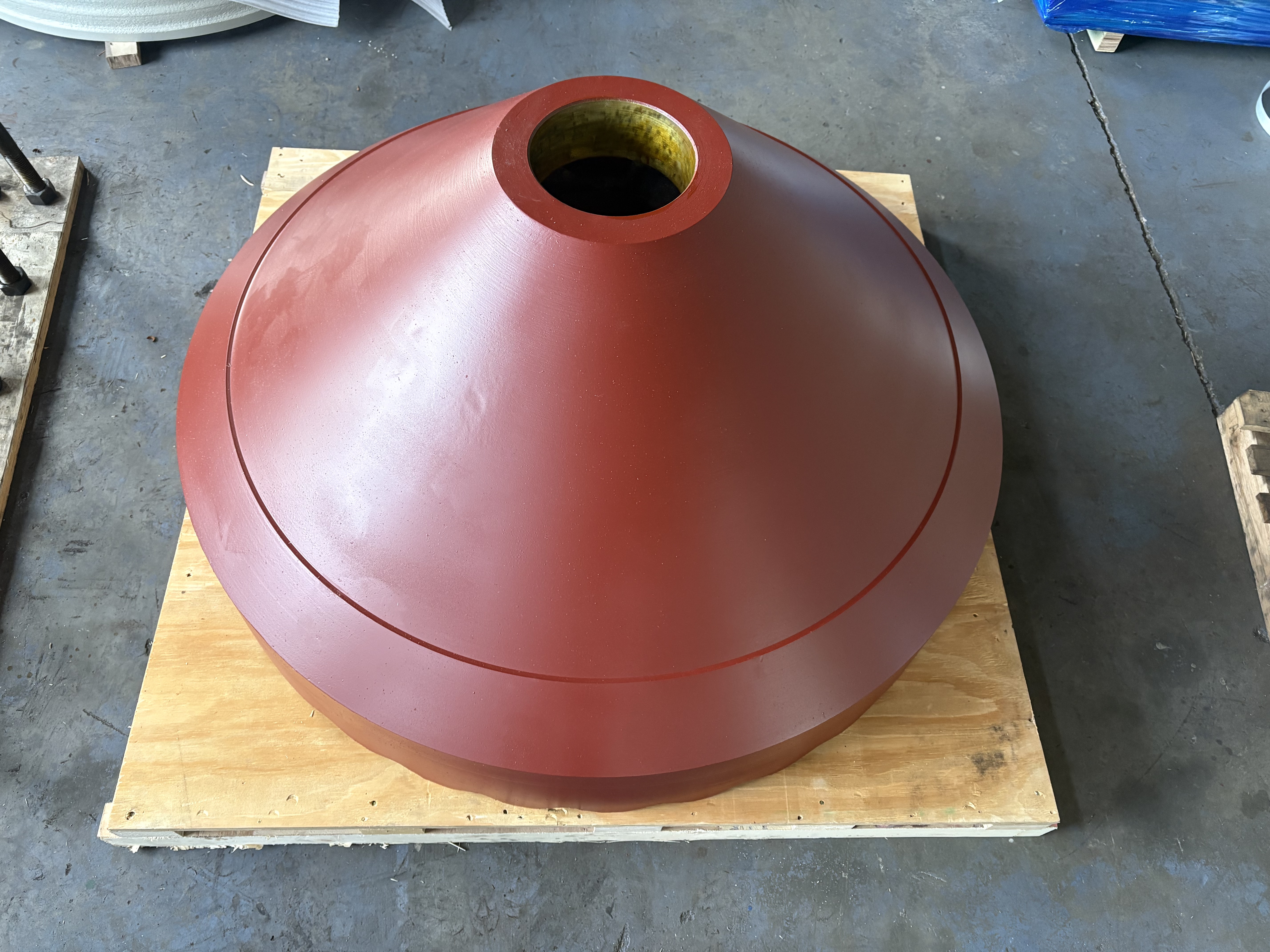

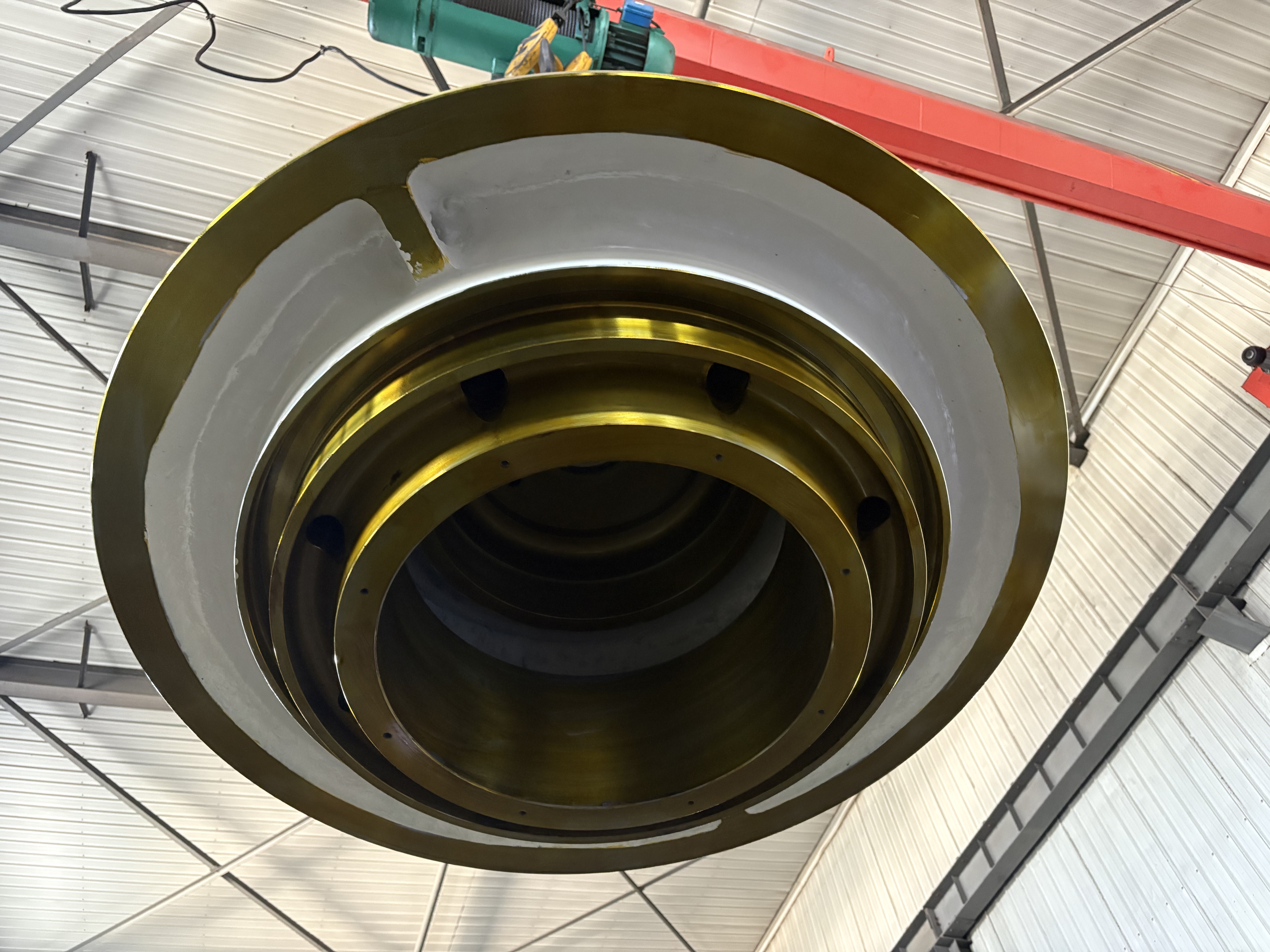

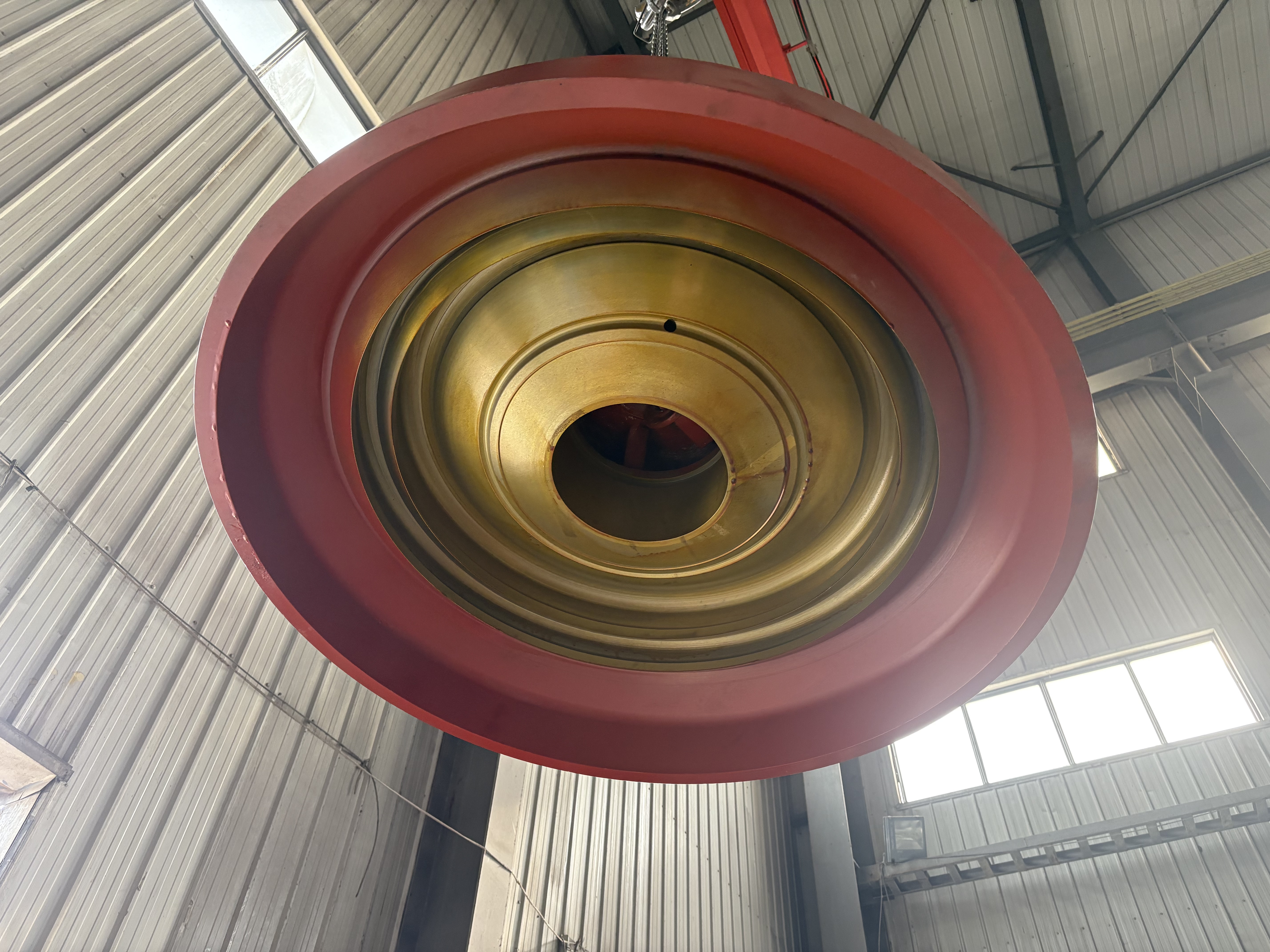

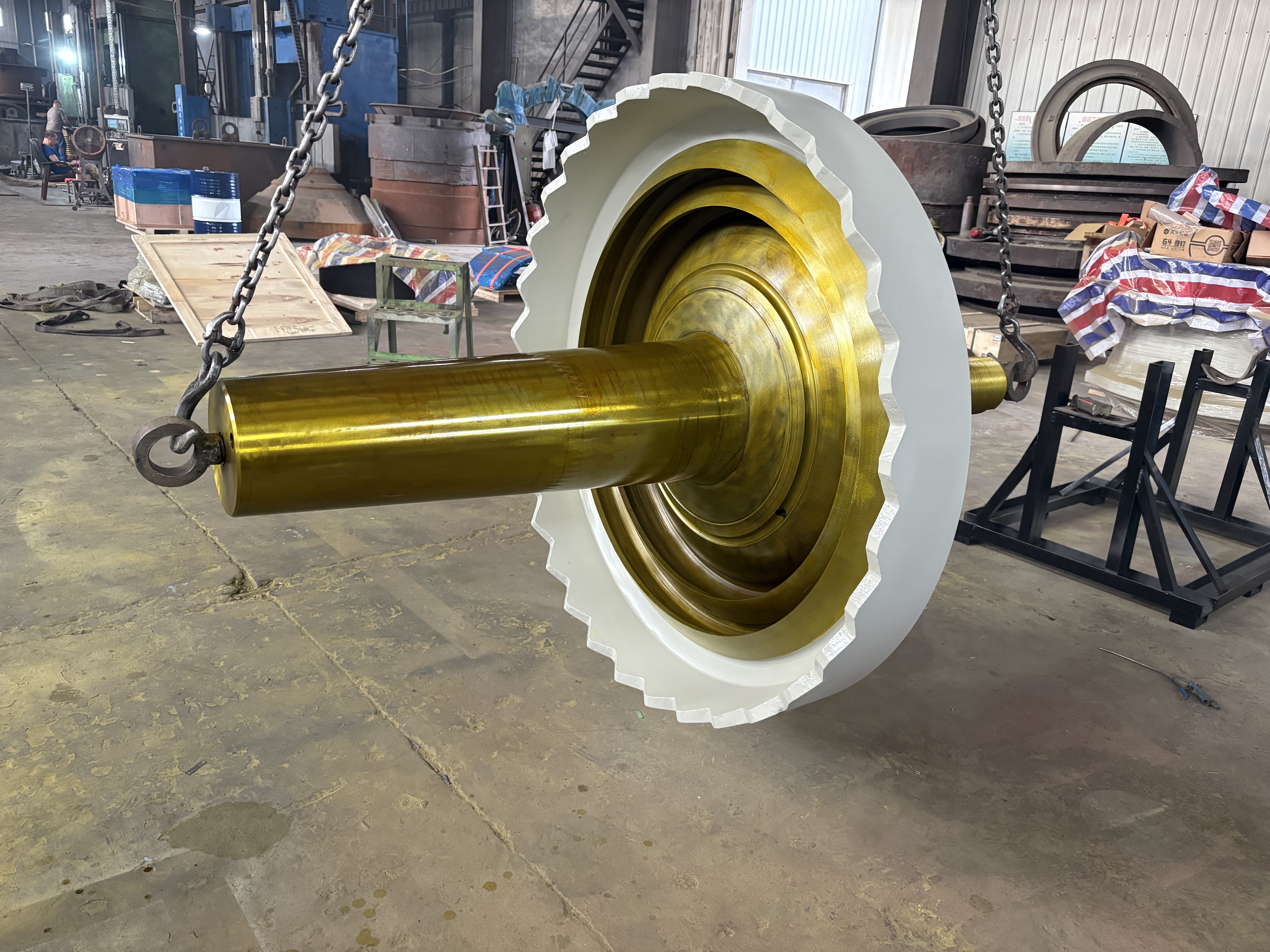

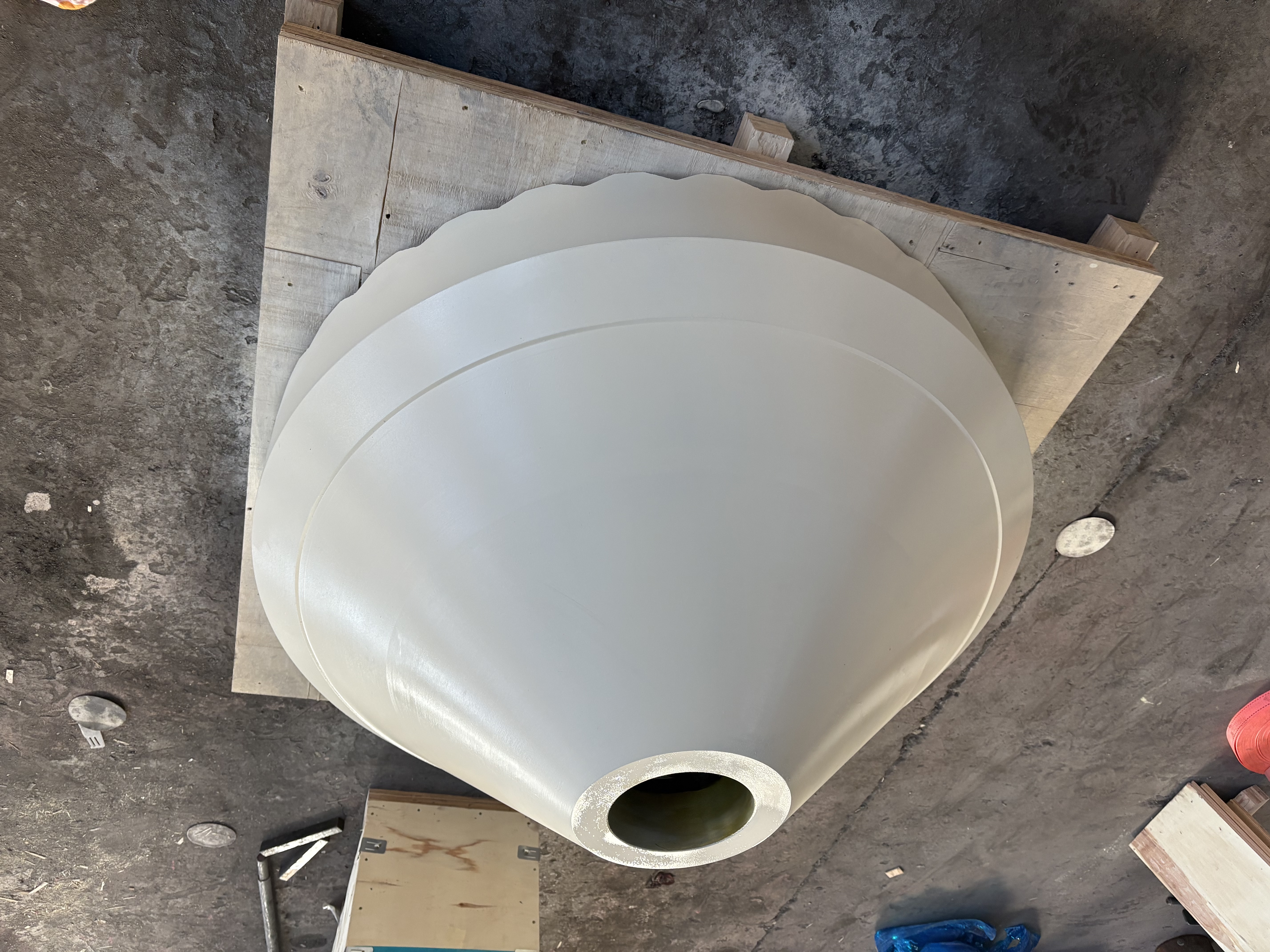

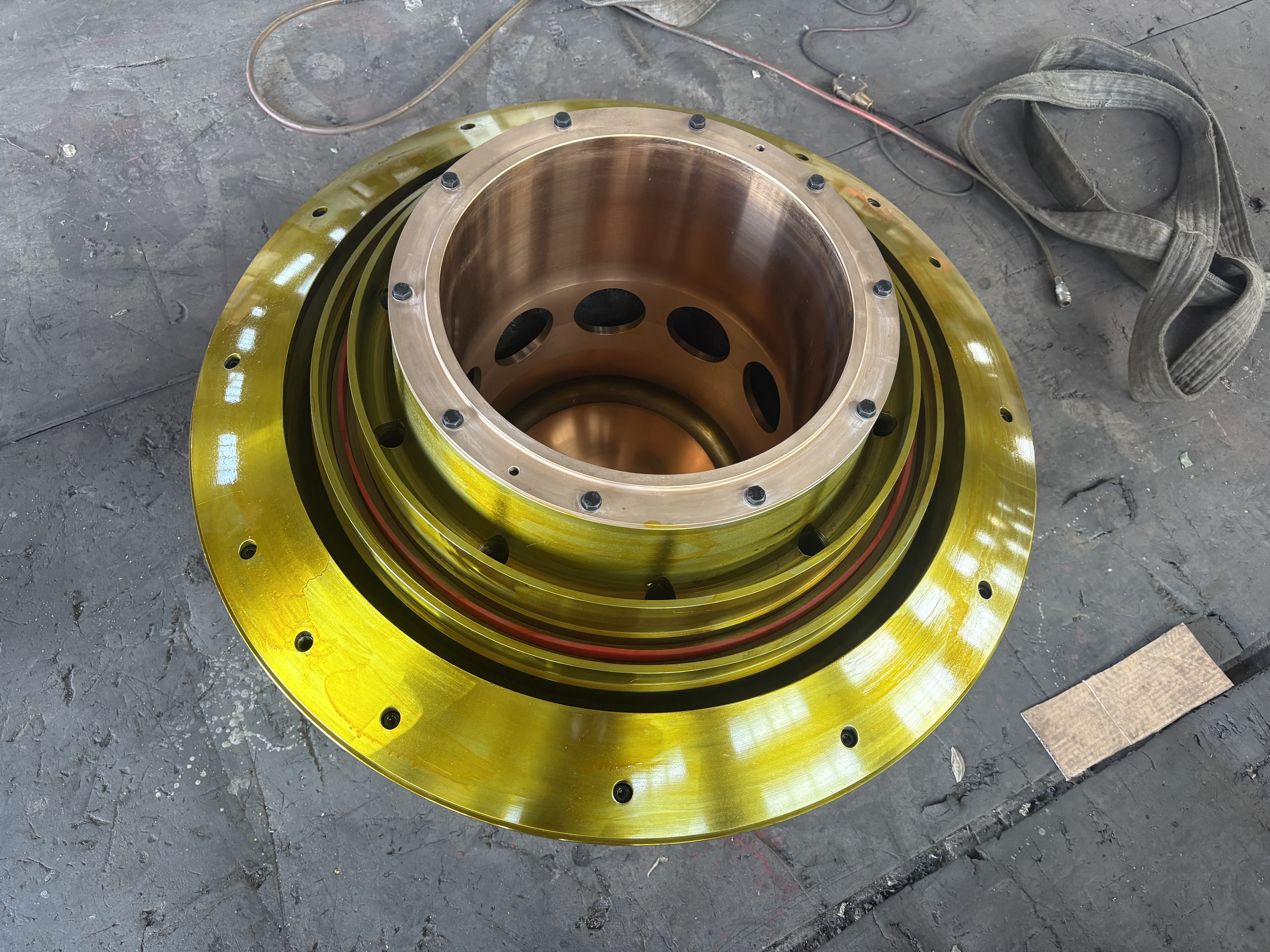

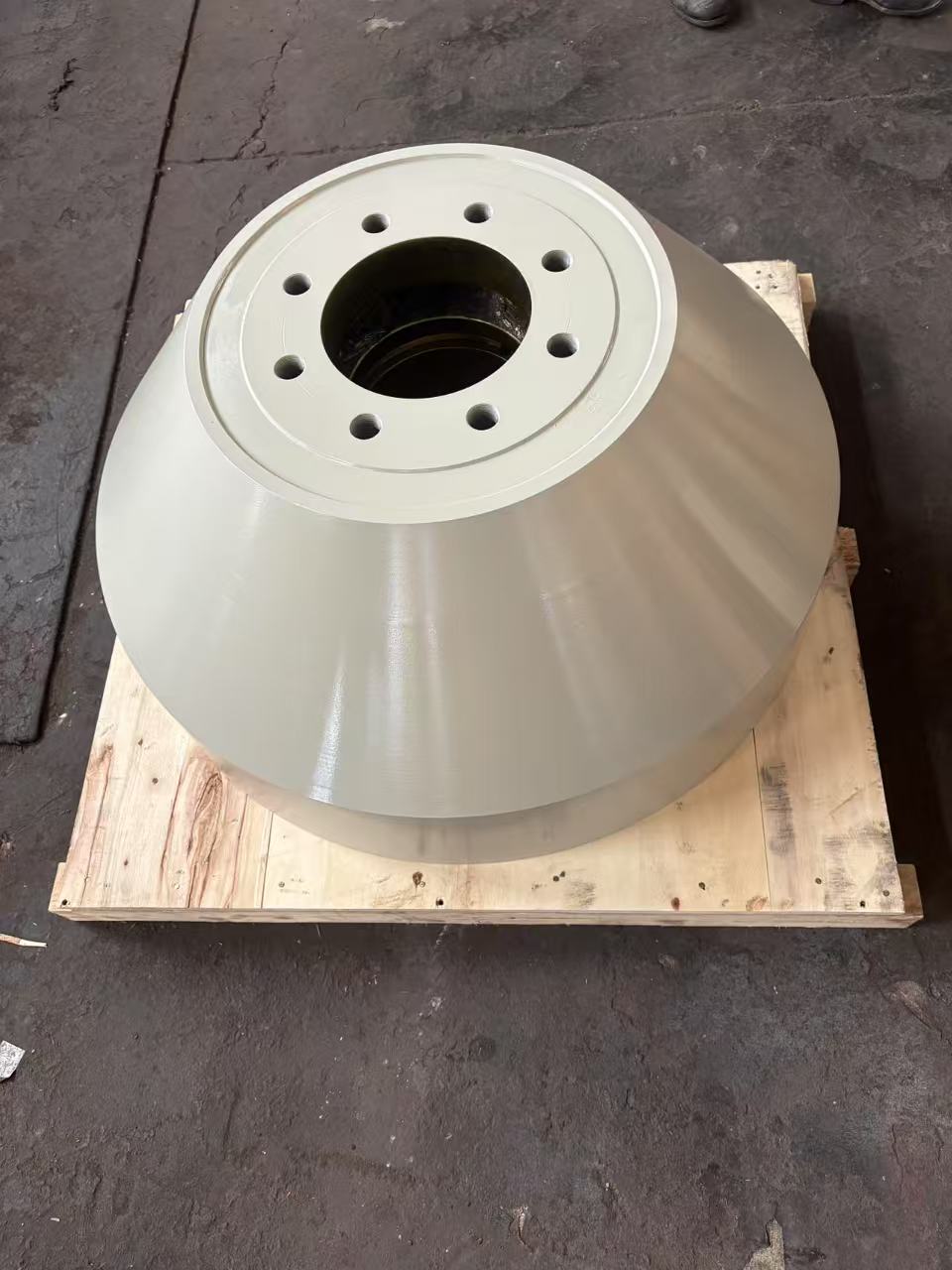

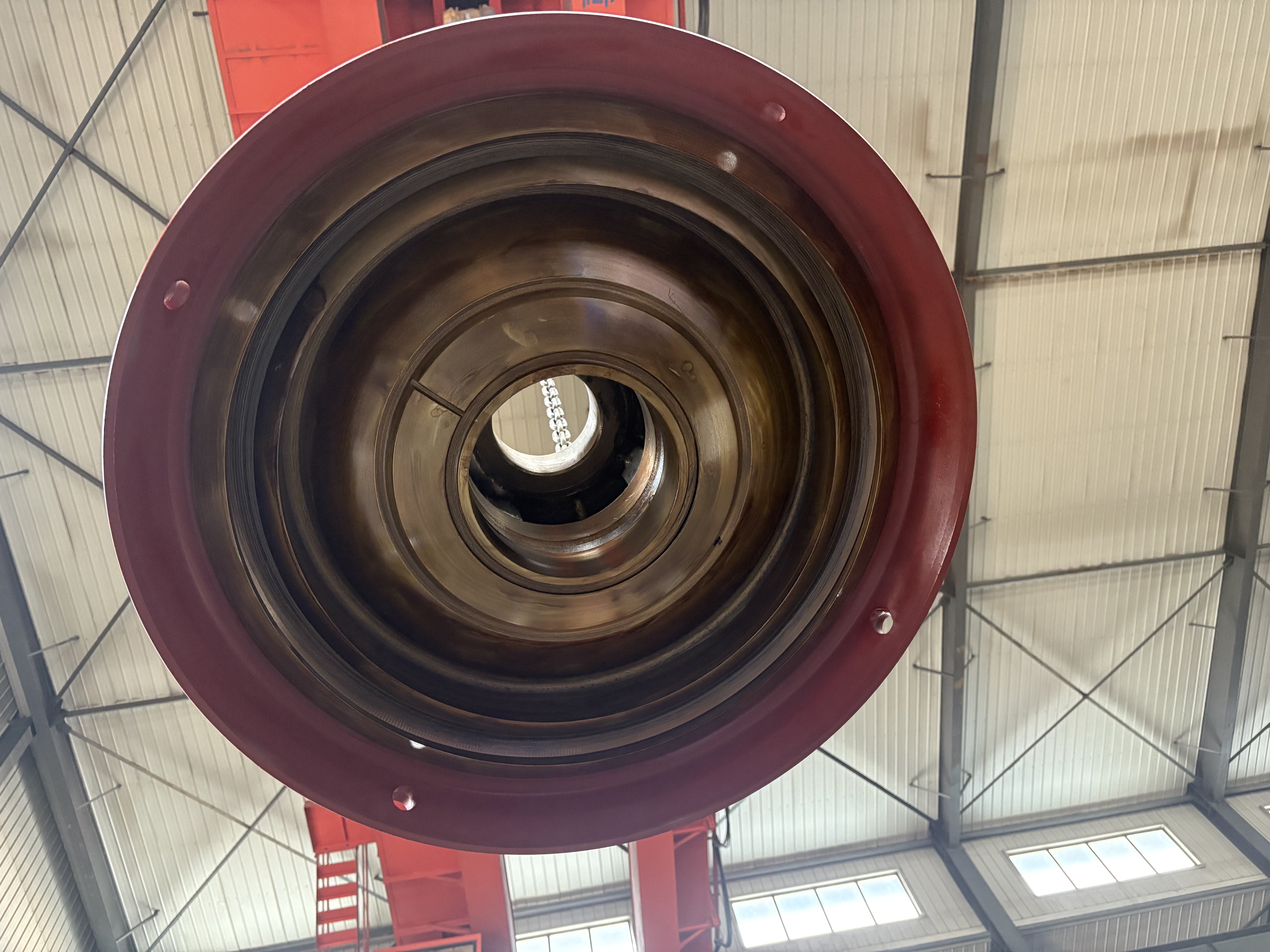

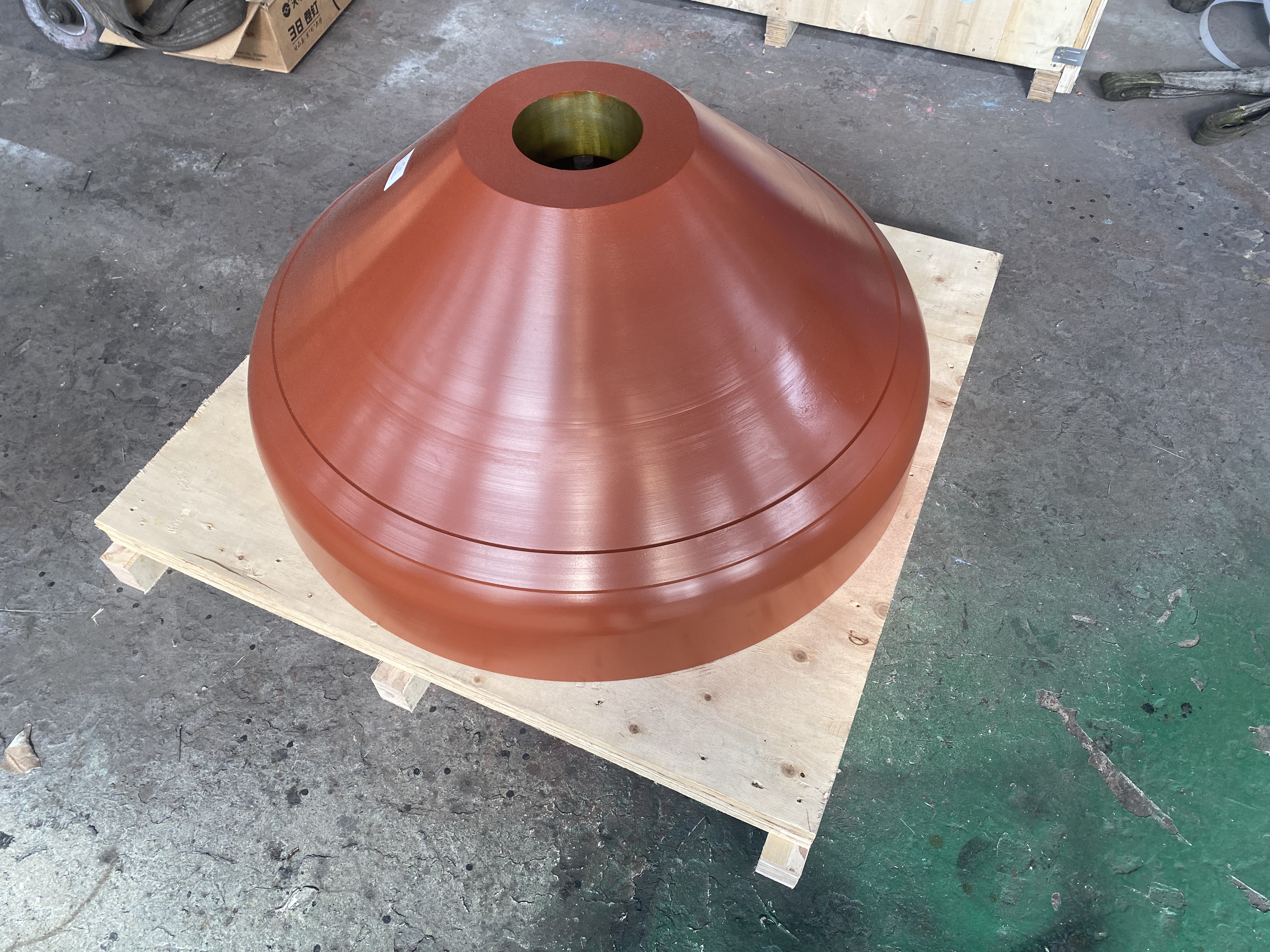

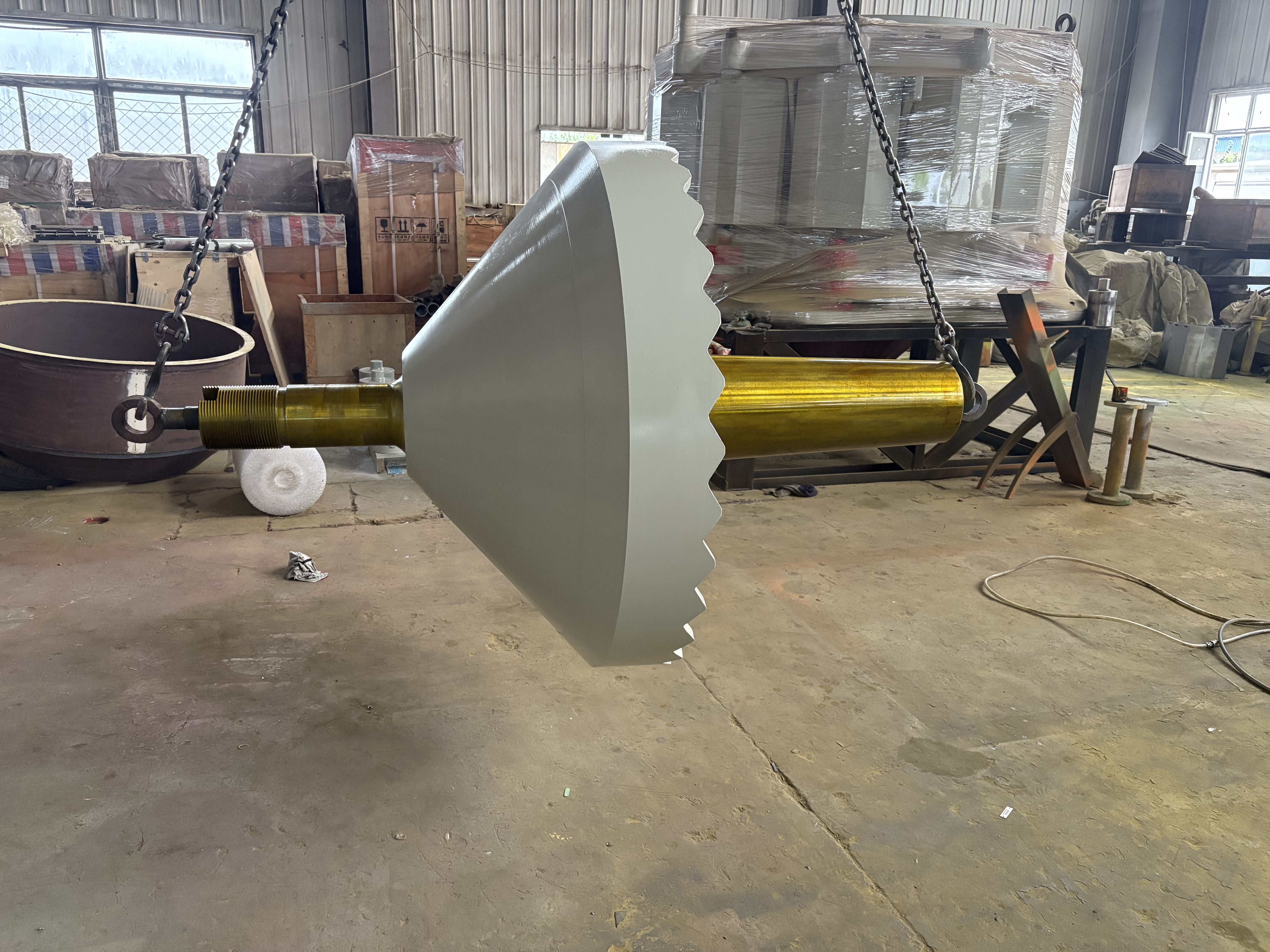

Cone Crusher Head

Cone crusher heads operate under continuous impact and abrasive conditions during mining and aggregate processing. If the material performance and heat treatment process are insufficient, the component may experience faster wear and reduced service performance, increasing replacement frequency and maintenance costs.

Shenyang Zhuoyue uses Mn13/Mn18 high manganese steel and high-chromium alloy materials according to application requirements. Through precision smelting, quenching and tempering heat treatment, combined with surface strengthening treatment, finished products achieve surface hardness of HRC55-60 with improved wear resistance and impact toughness. Combined with CNC precision machining and inspection control, the cone crusher head is manufactured to meet demanding crushing conditions.

Product Advantages

1. High Wear Resistance Material

Made from Mn13/Mn18 high manganese steel and high-chromium alloy materials, the cone crusher head achieves surface hardness of HRC55-60 after precision smelting, quenching and tempering heat treatment, combined with surface strengthening treatment for improved wear resistance and impact toughness.

2. Precision Machining for Accurate Fitment

Large-scale CNC lathes and five-axis machining centers are applied for precision processing. The cone surface arc tolerance is controlled within ±0.03mm to improve dimensional accuracy and replacement compatibility.

3. Customized Manufacturing Based on Requirements

Production is arranged according to confirmed drawings, samples, OEM numbers or dimensional requirements. The manufacturing process may include casting/forming, heat treatment, machining, inspection and packing.

4. Full-Process Quality Control

Finished products are inspected according to agreed technical requirements, including dimension calibration, hardness inspection when specified, pressure resistance testing and impact resistance testing to ensure consistent product quality before delivery.

Key Technical Considerations

· Crusher manufacturer and model

· Part number or reference number

· Overall dimensions

· Main shaft interface

· Mantle seating area

· Key mating and mounting dimensions

· Available drawing, sample, photos or measurements

If some information is unavailable, the existing details can be reviewed first to identify what additional information is needed.

Specifications

Final material, dimensions and tolerances are confirmed before production.

Replacement Information Review

The following information can be used to review the replacement requirement and establish the manufacturing basis:

A complete drawing is helpful but is not always required for an initial review.

Manufacturing & Quality Control

Material Preparation → Casting/Forming → Heat Treatment → CNC Machining → Inspection → Packing

During production, Shenyang Zhuoyue controls key manufacturing stages including material selection, heat treatment, machining accuracy and final inspection. Finished cone crusher heads are checked according to customer requirements, with dimensional inspection, hardness inspection, pressure resistance testing and impact resistance testing available.

About Us

Shenyang Zhuoyue Machinery Equipment Co., Ltd. is supported by a core team with more than 10 years of experience in mining machinery and crusher replacement parts. The company has 24 R&D and technical personnel, with production capabilities covering machining, welding and assembly.

Its manufacturing setup includes 10 machining lines, 2 welding lines and 2 assembly lines, with an annual production capacity of approximately 2,000 tons. For replacement crusher components such as cone crusher heads, the team can review drawings, samples, part numbers and dimensional requirements to establish the manufacturing requirements before production.

Zhuoyue supplies crusher replacement components to customers in Europe and North America, with production and technical requirements confirmed according to each order.

Applications

Cone crusher heads are used as replacement components in mining, quarrying and aggregate processing.

Applicable material, dimensions and configuration are confirmed according to the specific crusher model and replacement requirements.

Packaging and Delivery

Packaging is selected according to product size and transportation requirements. Wooden cases or steel-frame packaging can be used where appropriate.

EXW and FOB are available. Production and delivery schedules are confirmed according to model, quantity and technical requirements.

FAQ

Q: Can a cone crusher head be produced from an existing part number?

A: Yes. A part number or reference number can be used as part of the technical review, together with other available equipment information.

Q: What dimensions are important when reviewing a replacement head?

A: Overall dimensions, the main shaft interface, mantle seating area and other key mating or mounting dimensions may be required for confirmation.

Q: Can the manufacturing route vary for different cone crusher heads?

A: Yes. The manufacturing route is determined by the material, component design and production requirements and may include casting or forming, heat treatment, machining and inspection.

Q: What inspection can be arranged for a replacement head?

A: Finished parts are checked against agreed technical requirements. Dimensional or hardness checks can be arranged when specified.

Q: What if the original drawing is no longer available?

A: The available part number, physical sample, photos and key dimensions can be reviewed first to determine what additional information is needed for technical confirmation.

Request a Replacement Cone Crusher Head

Send the crusher manufacturer and model, part number, drawing, sample, photos or available dimensions.

Shenyang Zhuoyue can review the available information and confirm the technical requirements before production.
