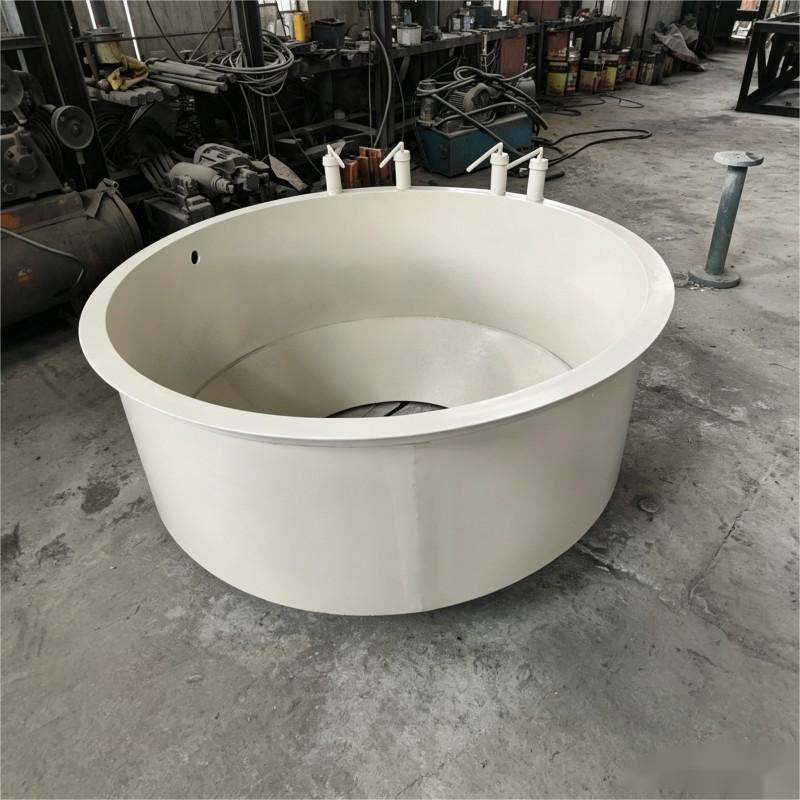

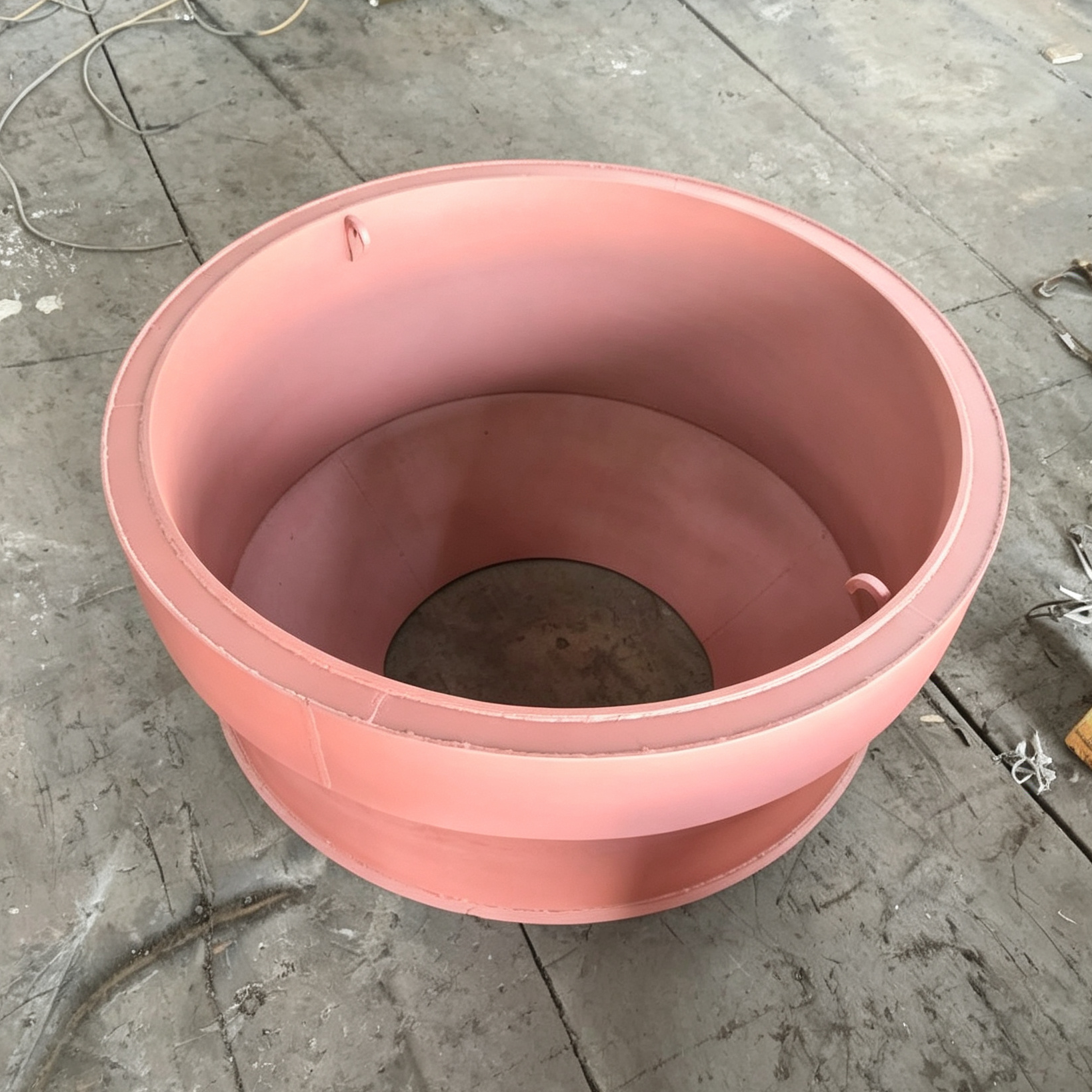

Cone Crusher Feed Hopper
Brand :ZHUOYUE
Product origin :Shenyang, Liaoning, China
Delivery time :One month
Supply capacity :300 cases per year
Precision-welded cone crusher feed hopper with controlled plate cutting, forming, welding, machining and stress-relief treatment. It was developed as a direct OEM replacement, while also accommodating various crusher customization types. Crucial measurements are cross-checked against drawings or samples of the originals as needed. Depending upon environmental conditions, the choice is either carbon steel or wear-resistant alloy steel. We also can provide both dimensional and welding inspections that will facilitate the installation process at every stage, ensure the quality of products, and be the basis for the continuation of replacement parts' supply.
Product Introduction
Feed hoppers that are used with Cone Crushers undergo constant material strike, shaking, and wear-and-tear from rubbing.
Sloppy welding and rough-welded hoppers can often lead to wrong dimensions, welding mistakes, and deformation in structural elements which results in feed blockages, uneven flow of material, wear of surfaces and surface cracks very early on.
Such faults can result in more frequent change of parts, time and effort spent on repairing and more unexpected stops in production.
For a crushing plant that is working non-stop, even a breakdown in the feeding mechanism will stop the entire production chain.
Our Cone Crusher Feed Hopper uses integral plate cutting, full-penetration welding, precision machining and stress-relief treatment to ensure the structural accuracy and stability over a long period of time.
The main highlights under the given benchmark conditions were:
Structural accuracy: overall structural error kept to a negligible < - or equal to0.15 mm.
Welding quality: the flatness of weld joint controlled to a maximum of 0.2 mm, and welding inspection carried out per the mutually agreed quality standards.
Dimensional stability: Stress-relief treatment enables the structural geometry to stay as it is after welding.
Feeding reliability: The internal dimension and geometry of the inlet/outlet are customized to match the crusher, so it helps the user minimize problems of feeding due to the dimension mismatch.
Service performance: Based on the above comparison data, feed hopper has about 30% fewer feeding failures and 40% longer service cycles compared to the conventional reference hopper under the similar working conditions.
Material selection: Depending on the material, degree of impact and operating conditions, high-strength carbon or wear-resistant alloy steel can be chosen.
Feeding behavior of a feed hopper is also a function of the characteristics of input crusher, feed material, impact load, installation and operating conditions. The OEM part number, drawing or sample should be verified first before mass production.
Technical parameters：
| Parameter | Specification |
|---|---|
| Product Name | Cone Crusher Feed Hopper |
| Crusher Brand | To be confirmed |
| Crusher Model | 4.25FT Cone Crusher / To be confirmed |
| OEM Part Number | 2168-8163 |
| Material | To be confirmed according to specification |
| Overall Dimensions | According to approved drawing |
| Plate Thickness | According to approved drawing |
| Manufacturing Process | Plate Cutting, Forming, Welding, Machining and Stress-Relief Treatment, as applicable |
| Dimensional Tolerance | According to approved drawing |
| Welding Inspection | Visual and/or NDT inspection according to order requirements |
| Surface Treatment | According to approved drawing/specification |
| Customization | OEM drawing, sample and non-standard dimensions supported |
| MOQ | 1 pc for selected standard products |
| Packaging | Wooden Case / Steel Frame Protection |
Product Advantages:
1. Stable Structural Performance
The feed hopper is manufactured through controlled cutting, welding, machining processes and stress-relief as required. It is these processes which allow the feeding system to keep its stability of the structure and resistance even with continuous heavy load operations.
2. Accurate Crusher Compatibility
Critical dimension and connection interfaces are made from drawings, samples or technical specifications which are confirmed. This helps to avoid installation and compatibility problems during spare part replacement.
3. Material Options for Different Conditions
If there are requirements for the structural strength, abrasive conditions or a material specification approval, carbon steel, wear-resistant alloy steel or any other material can be considered.
4. OEM and Non-Standard Customization
Replacement parts made according to OEM part numbers, drawings, qualified samples and confirmed dimensions will be supported by Zhuoyue Machinery. For customized production, non-standard feed hopper configurations can be reviewed.
5. Inspection and Documentation
In accordance with the product needs, dimensional inspection, welding inspection and other quality examinations can be performed. If the order necessitates it, appropriate inspection records and material documentation can be given.
Product Application:
Feed hoppers for cone crushers find application in several mining and minerals processing industries, quarries, aggregate production, metallurgical processing, cement and industrial raw-material processing, as well as road and infrastructure aggregate production. The feed hoppers can be sold as spare parts in original equipment manufacturer (OEM), overhaul of spare parts, or customized feed hoppers based on customer drawings or crusher configuration requirements.
Major procurement reasons are replacement when feed hopper gets worn or damaged, regular overhaul of equipment, getting the parts as a substitute of OEM parts, replacement according to the drawing or sample when the part is not a standard one, and the parts are delivered for a long time supply.
The performance of the hopper will also heavily depend on the type of the crusher, size of the feeder, kind of the material that comes through, and the working conditions.
Enterprise Strength :
Shenyang Zhuoyue Machinery Equipment Co., Ltd. focuses on R&D and manufacturing for crusher spare parts and customized components.
Our professional team has a rich experience of more than 10 years in mining machinery and crusher spare parts, including product development, process confirmation, manufacturing coordination, and quality inspection.
A team of 32 R&D and engineering staff is available for carrying out technical reviews, drawing verification, processing manufacturing steps, and replacing parts development. We have 10 machining machines, 2 welding machines, and also we have 2 assembly lines. Our production is around 2000 tons per year.
We have been doing different processes like machining, fabrication, and assembly to meet structural components, wear parts, fastening components, and replacement parts of cruse crushers. our products reach the markets in Europe and America, and we make agreements over production and inspection with customers, product specifications, order quantity, and customer requirements.
Our services include:
We offer crusher equipment manufacturing, crusher parts production, whole machine assembly, and manufacturing of custom mechanical parts based on customer drawings or samples. The service includes equipment and product recommendation, technical advice, OEM / ODM manufacturing if the customer requires it, replacement-parts delivery, and delivery in bulk. We can adjust your manufacturing according to, among other things, equipment models, specifications, order sizes, and delivery schedules.
Warranty
ZHUOYUE provides a 12-month warranty for cone crusher feed hoppers against agreed manufacturing defects and product non-conformance, subject to the applicable sales contract, approved technical specifications, drawings, and warranty terms.
| Warranty Item | Coverage |
|---|---|
| Warranty Period | 12 months from the shipment date, or as otherwise agreed in the sales contract |
| Manufacturing Defects | Covered where a confirmed manufacturing defect is identified according to the agreed inspection and warranty requirements |
| Dimensional Non-Conformance | Covered when critical dimensions or specified interfaces do not meet the approved drawing, CAD data, or agreed dimensional specification |
| Material Non-Conformance | Covered where the supplied material does not meet the agreed material grade or specification |
| Welding Non-Conformance | Covered where specified welding requirements are not met according to the agreed inspection criteria |
| Claim Documentation | Product photos, inspection records, test reports, and other supporting information may be requested for technical review |
| Claim Handling | Warranty claims are reviewed according to the applicable contract terms, technical requirements, inspection records, and warranty conditions |
Quality Control and Inspection
In addition to the manufacturing process itself, quality control inspection also includes a comprehensive check on the materials upon arrival as well as welds, dimensions (measurements to be sure), and the final product against approved drawings and technical requirements that have been set.
Certainly, material grade, material certificate, and chemical composition must be verified where necessary/only if relevant/only when appropriate/depending on the context/etc. Dimensional control, plate thickness, structural geometry, and weld quality must be inspected in accordance with approved drawings and specifications. In case of necessity/only when it is done by requirement/nontheless/otherwise, UT, Mt, or pt non-destructive testing methods can be made.
Prior to shipment, dimensions of parts, interfaces, welding, surface conditions, and packing will be checked at the final inspection stage. A complete custom order can also be offered with 100% final inspection if that is requested. According to the order specification, material, dimensional, welding and NDT test records may also be furnished.
Packing & Loading
Bulk components as well as fully manufactured machines can be made secure with structural steel frames with foams or waterproof film covering. For every model, packing sizes, and total weight can be given as information. Numbers of containers that would fit in 20GP and 40HQ depend on machinery model and machine configuration. Delivery terms EXW and FOB are amongst the options available, while for sea, rail, and air freight options, the type of cargo and delivery needs are determinants.
Factory Visit & Material Testing
We can give you a video factory tour so that you, the customer, will know our business. Real-time video inspection during production or pre-shipment can also be done if conditions permit. The customer may also appoint a third party, like SGS, BV, or his/her own inspector that the buyer can ask for to do an inspection if that is required in the order.
If possible, the customer can provide a testing sample of 20 – 50 kg. According to the agreed testing requirements, a description of the testing procedure, reports and videos are provided.
FAQ:
Q1: How can one confirm that the product feed hopper is compatible with the customers' crusher?
Send us the crusher brand, model, OEM part number, sketches, or product photographs. Key dimensional specifications could also be given to check on compatibility.
Q2: Can we get custom-made feed hoppers from an OEM drawing or sample?
Sure. We can assess your OEM drawing or sample. Then we’ll inform you of all the technical details, including material, manufacturing requirements, dimensions, and the like that we’ll need to finalize the order.
Q3: What details are needed for a custom feed hopper?
We need the brand and model of the crusher, the OEM part number, the drawing or sample, key dimensions, material requirements, required quantity and delivery requirements. You can also provide us with operating conditions of the machine as applicable.
Q4: What is the MOQ?
Select items of standard products can be MOQ at 1 piece only. On the other hand, the MOQ of customized products might vary depending on materials, dimensions, production methods and batch quantity.
Q5: Is it possible for you to provide inspect reports?
Of course. Inspection records and raw material documents related to the production of parts will be provided upon request for product specification and order conditions.
Q6: How long is the lead time?
Production and availability of raw materials are the two main factors which influence the delivery schedule. Therefore, we can not specify the exact time. Once, technical and order details were approved, then we will give you the delivery time of the products.
Q7: Is it feasible for you to produce feed hoppers that are non-standard?
Yes. Non-standard feed hoppers can be developed and manufactured based on confirmed drawings, samples or technical requirements.
Q8: What type of packaging do you use?
Feed hoppers and other big parts can be packed in wooden cases or be enclosed in steel-frames as per the product size and transportation needs.
Q9: What shipping terms do you offer?
We offer EXW and FOB. If needed, we can discuss other shipping modes depending on the order and the place of delivery.
Q10: How is the quotation obtained?
You can give us information on the crane brand, crane model, OEM part number, schematic or actual photos, quantity needed, place of delivery, and the ideal delivery date. Before finalizing the quotation, we will evaluate the technical requirements.
