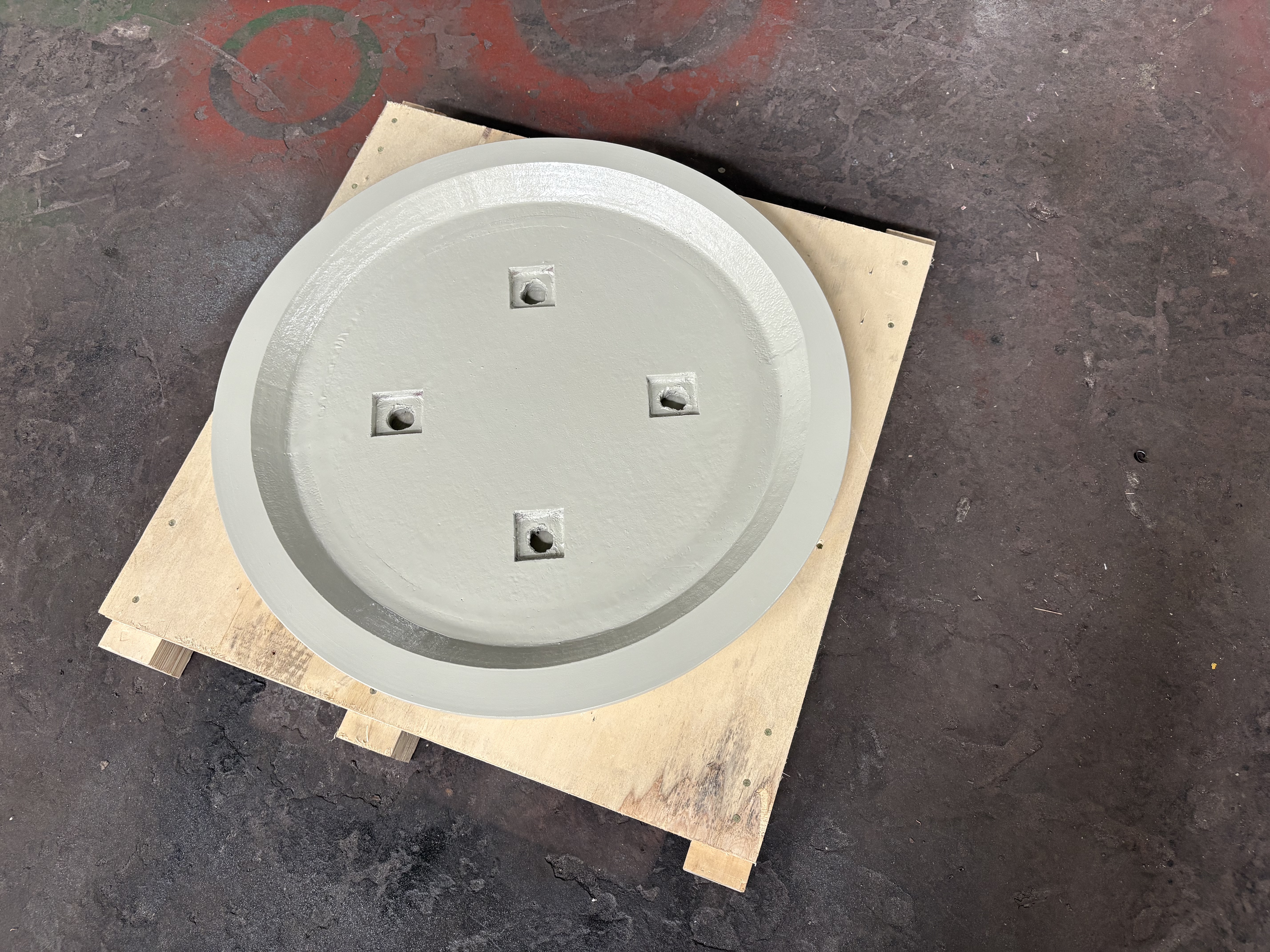

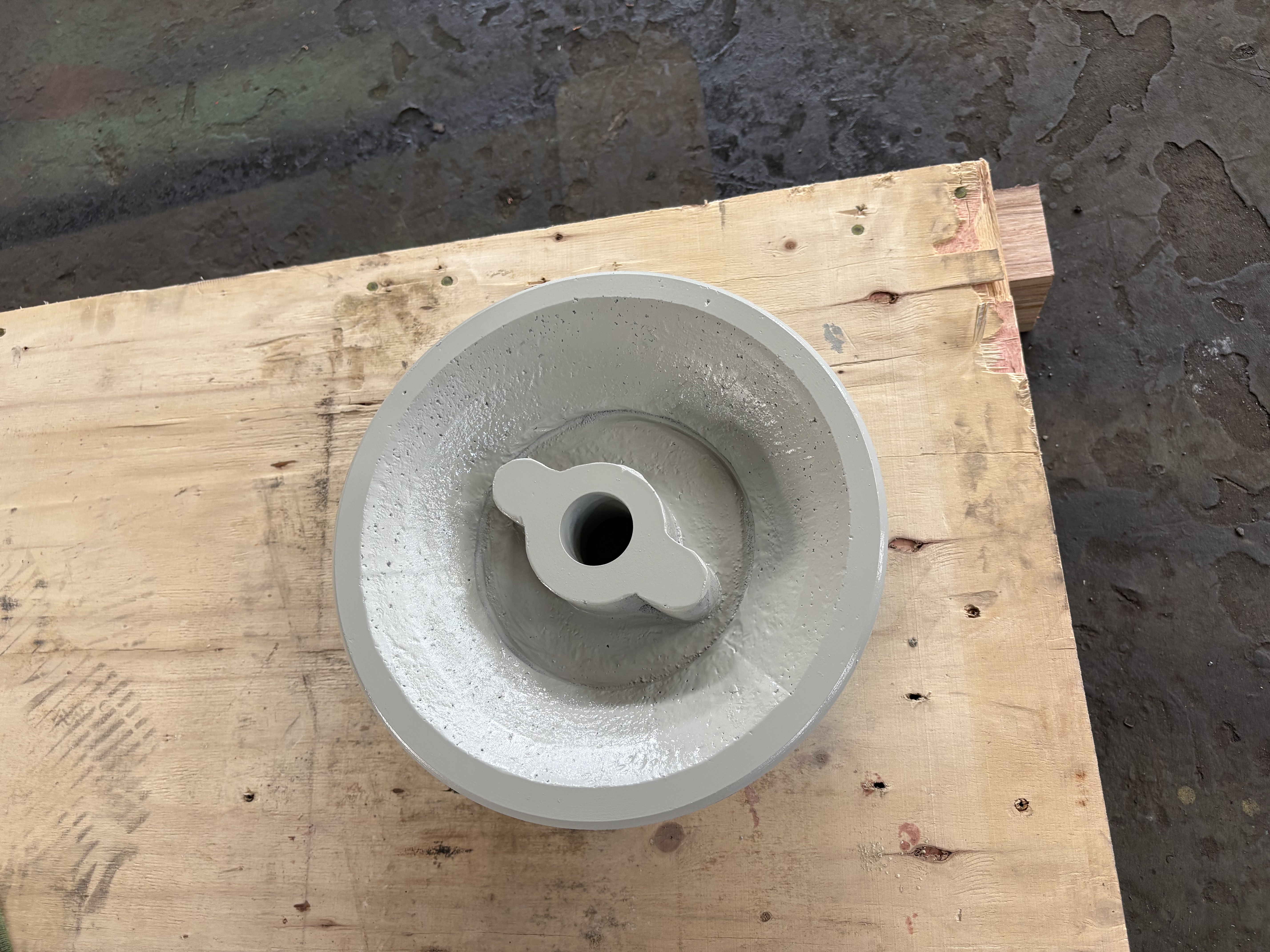

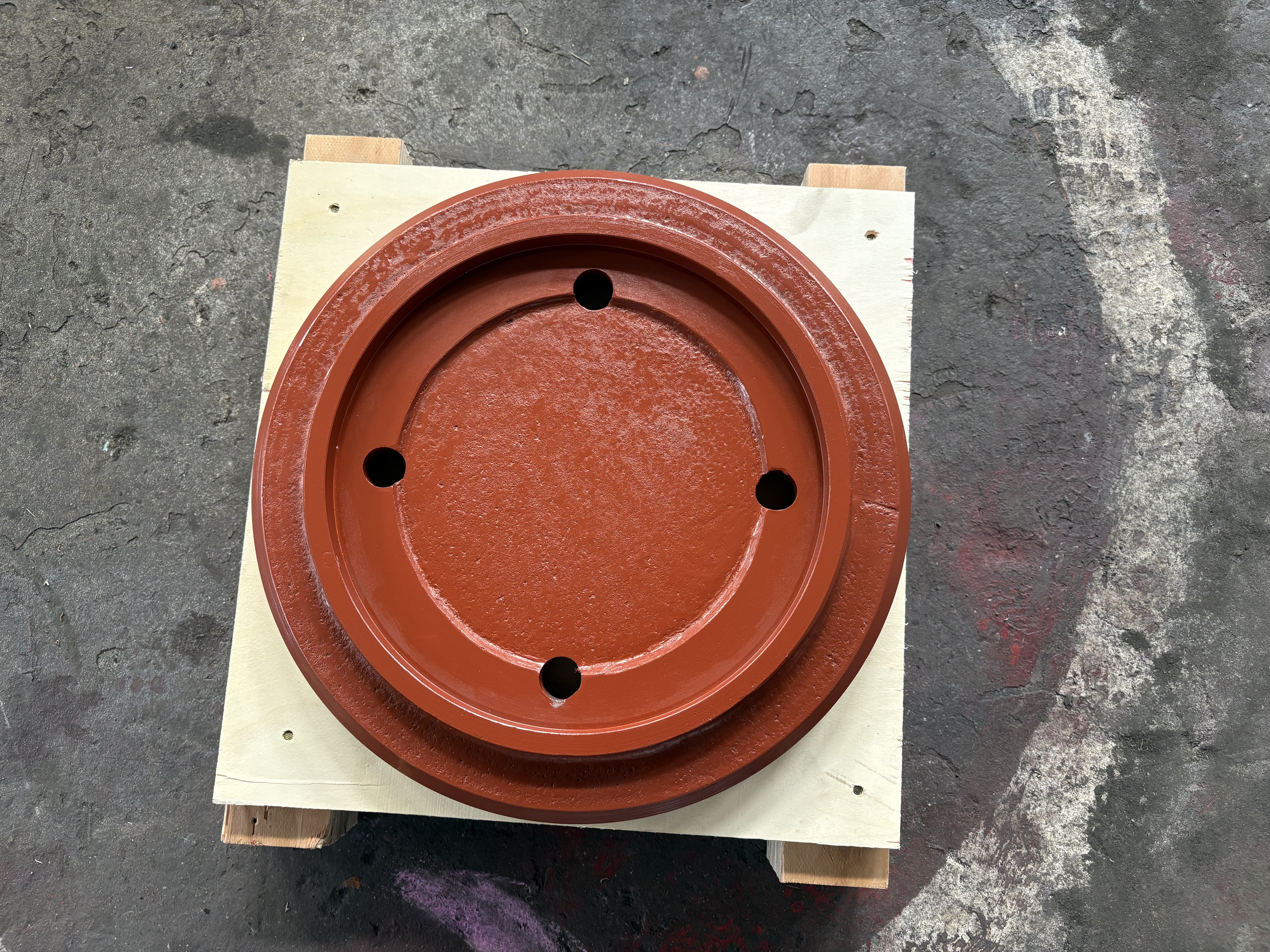

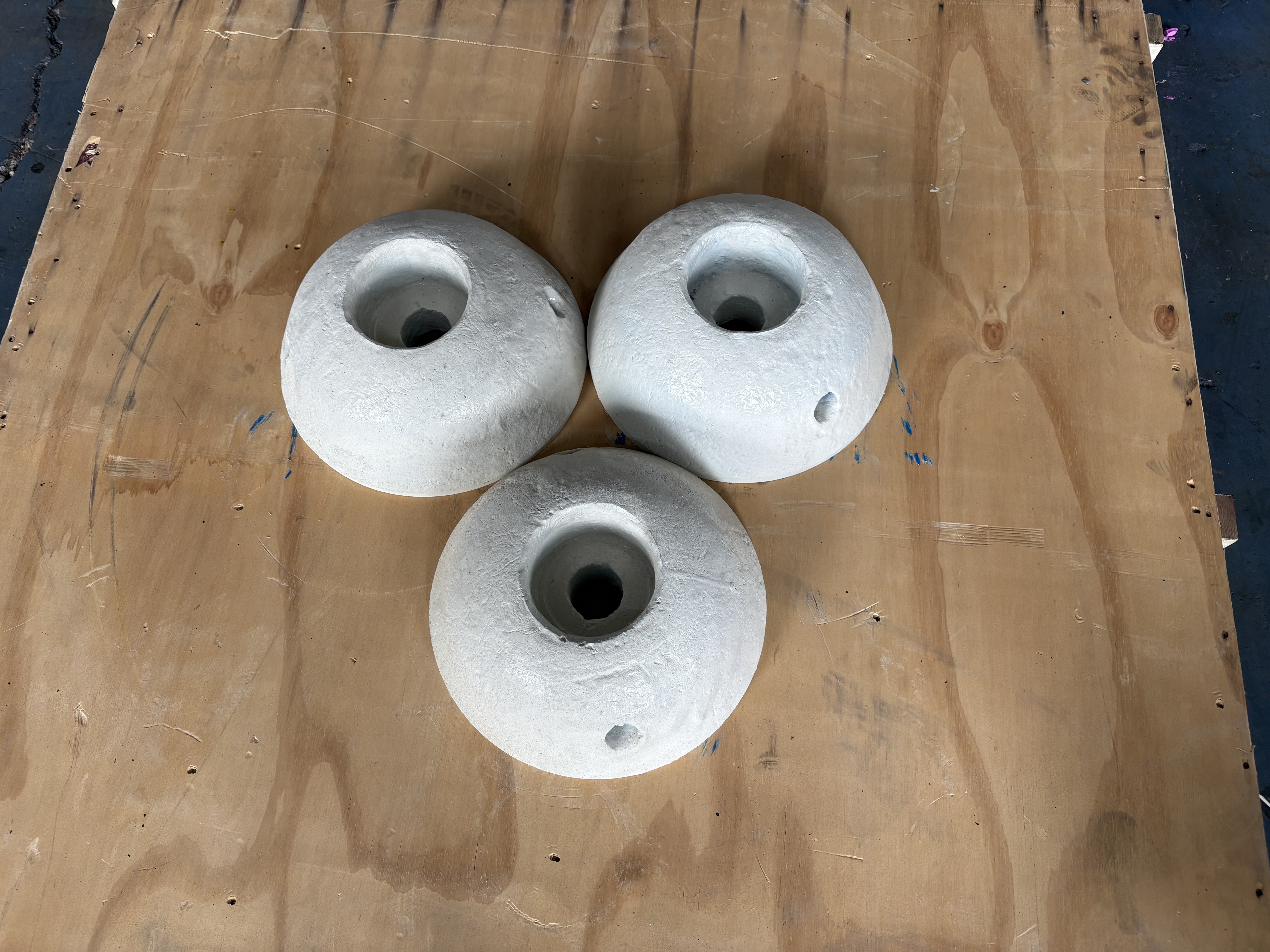

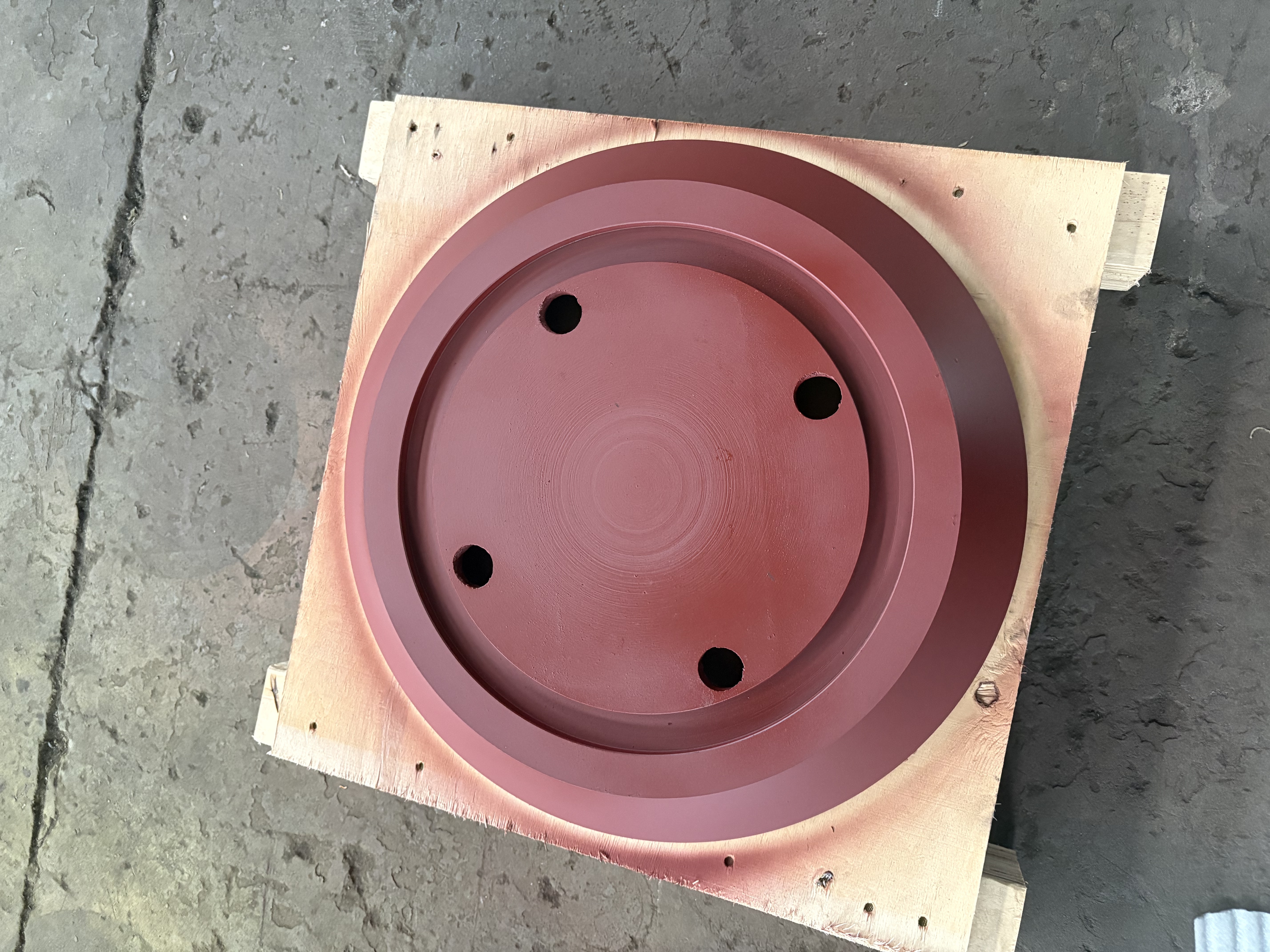

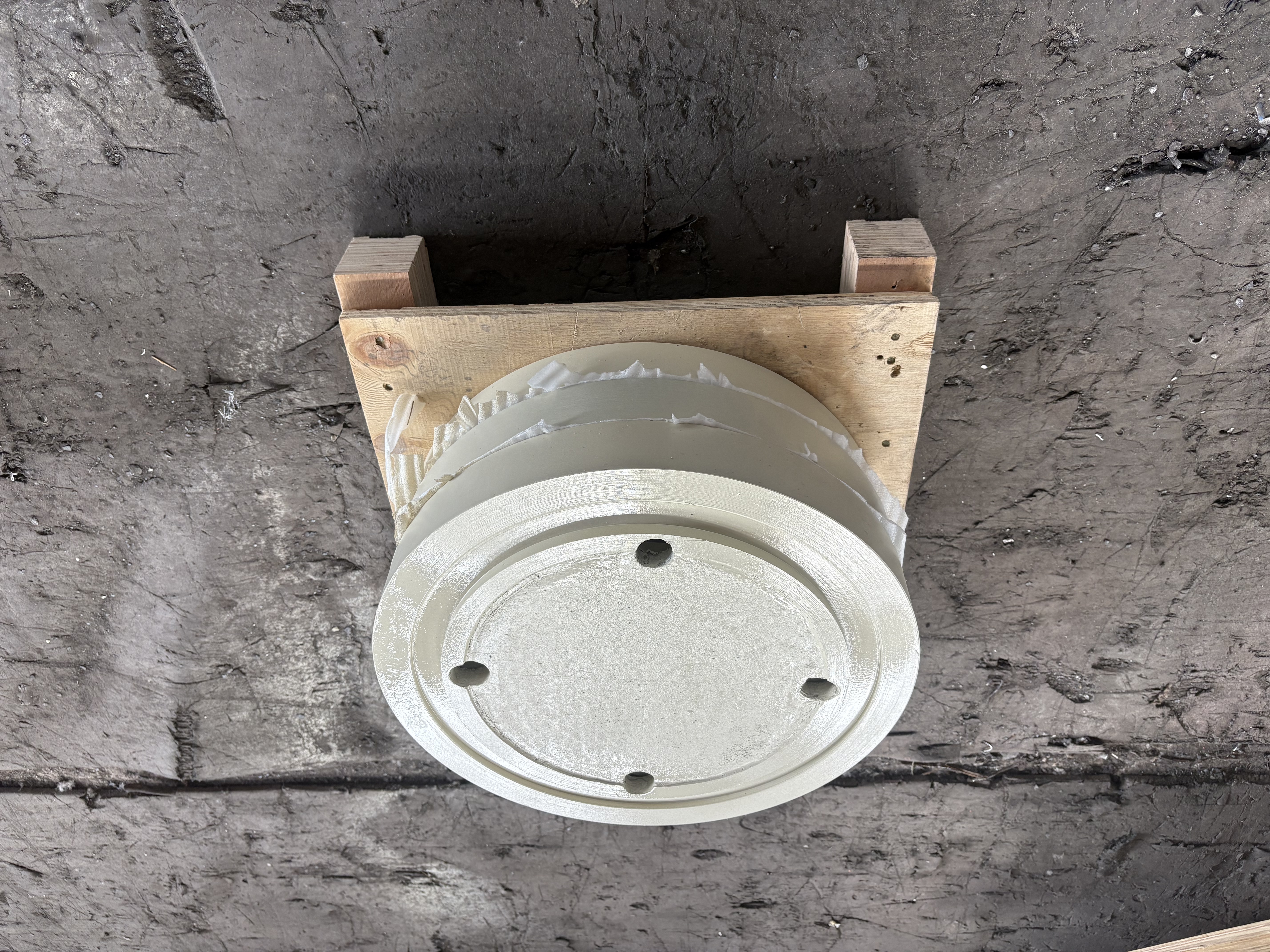

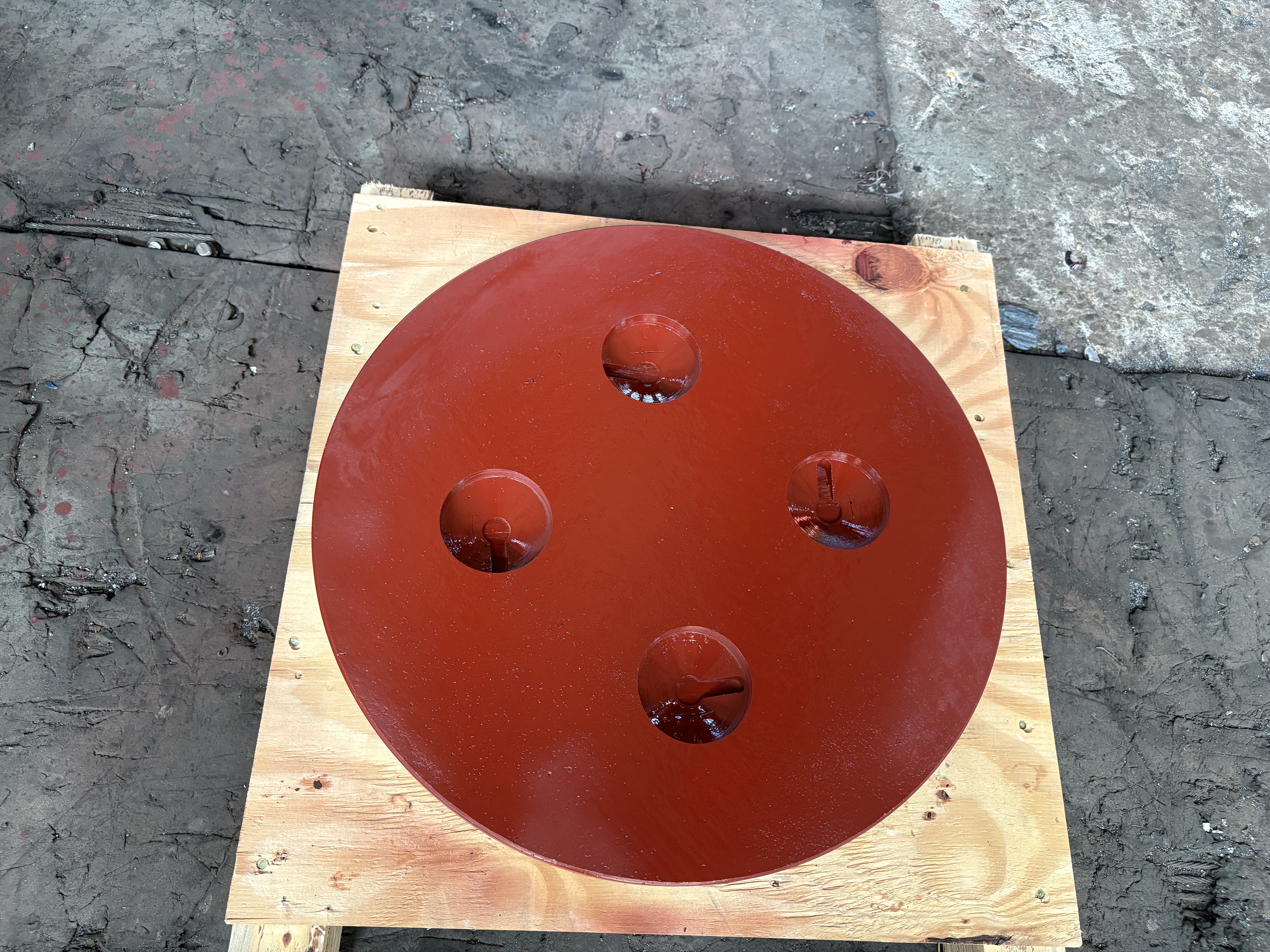

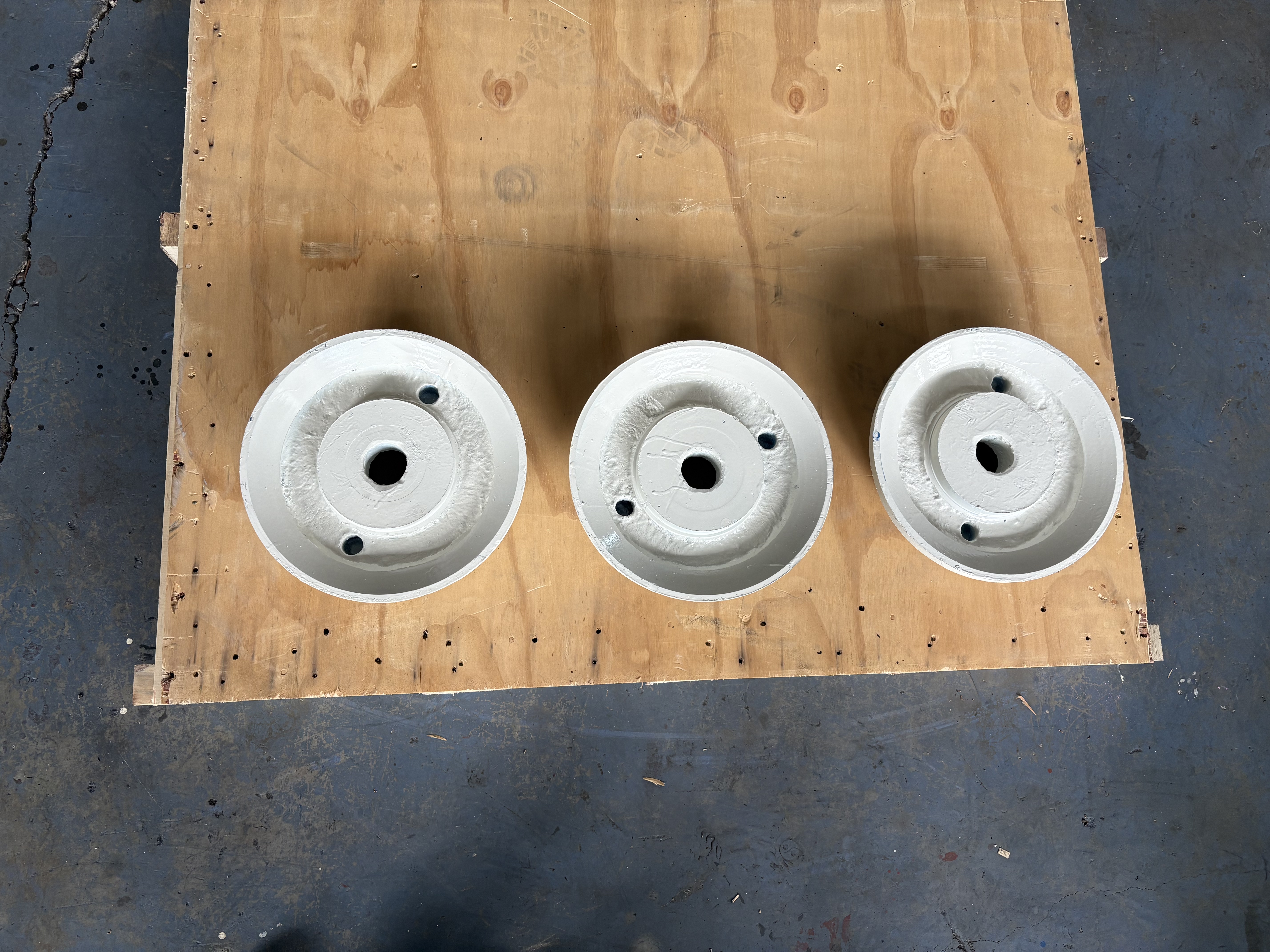

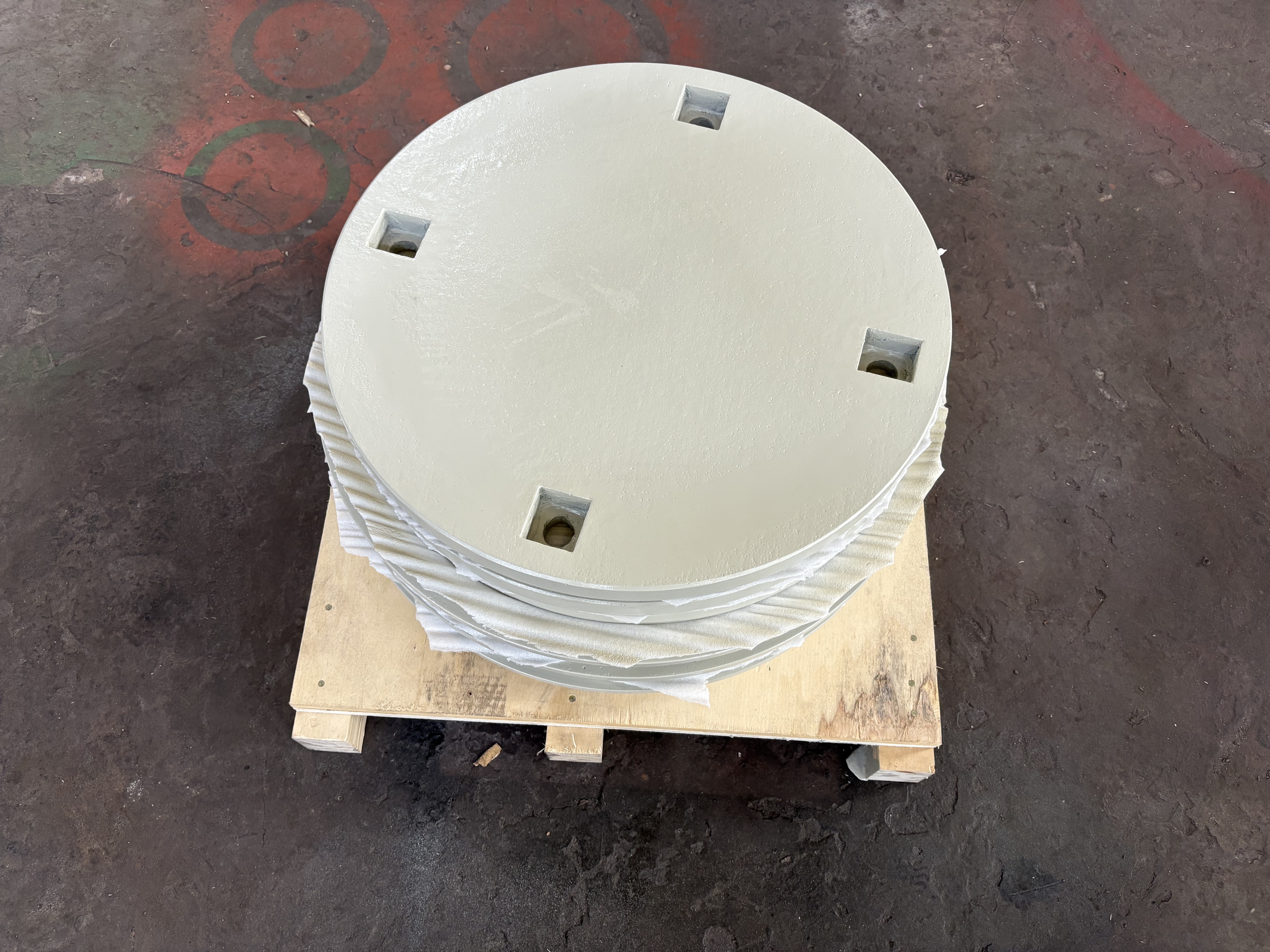

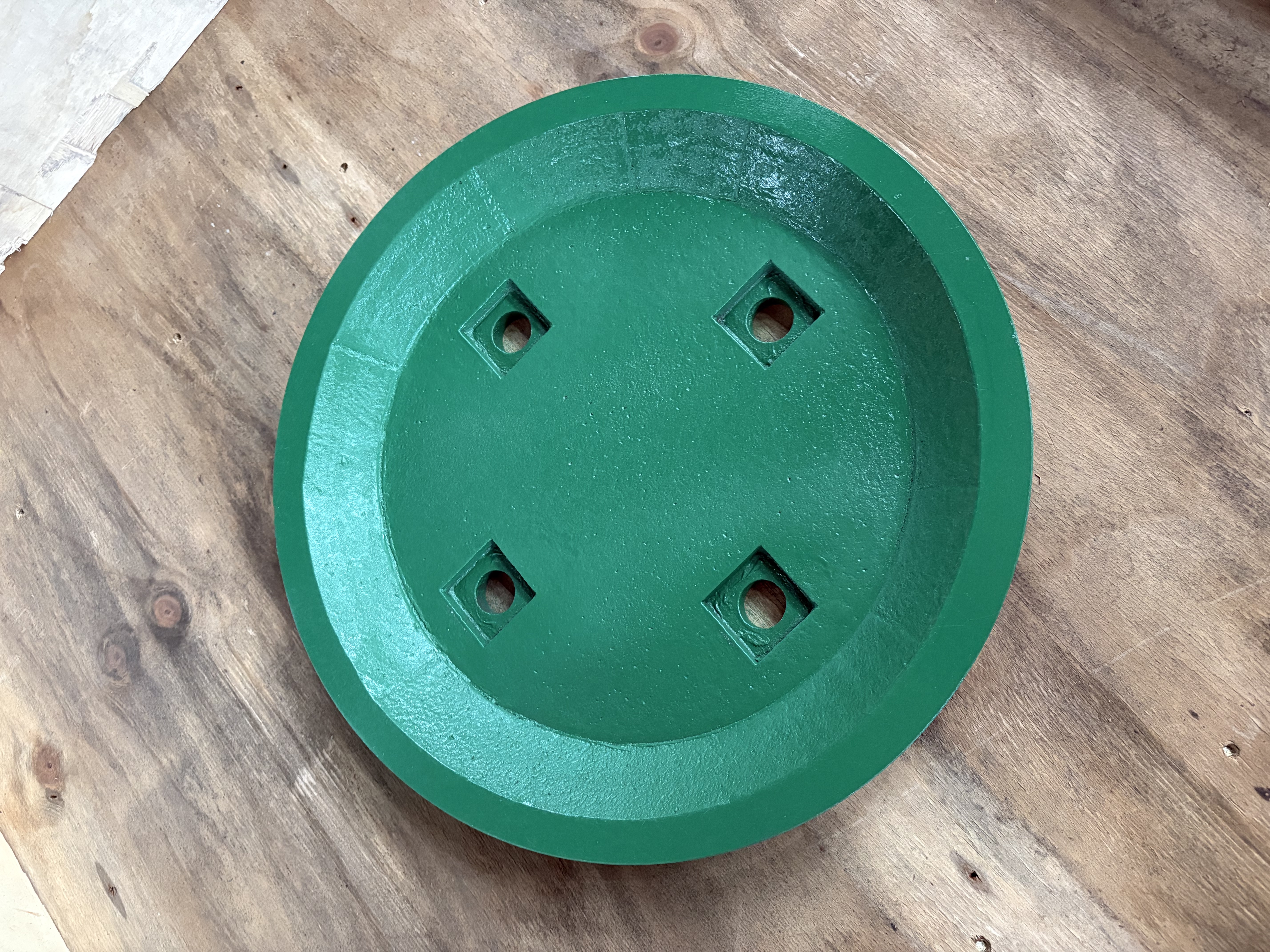

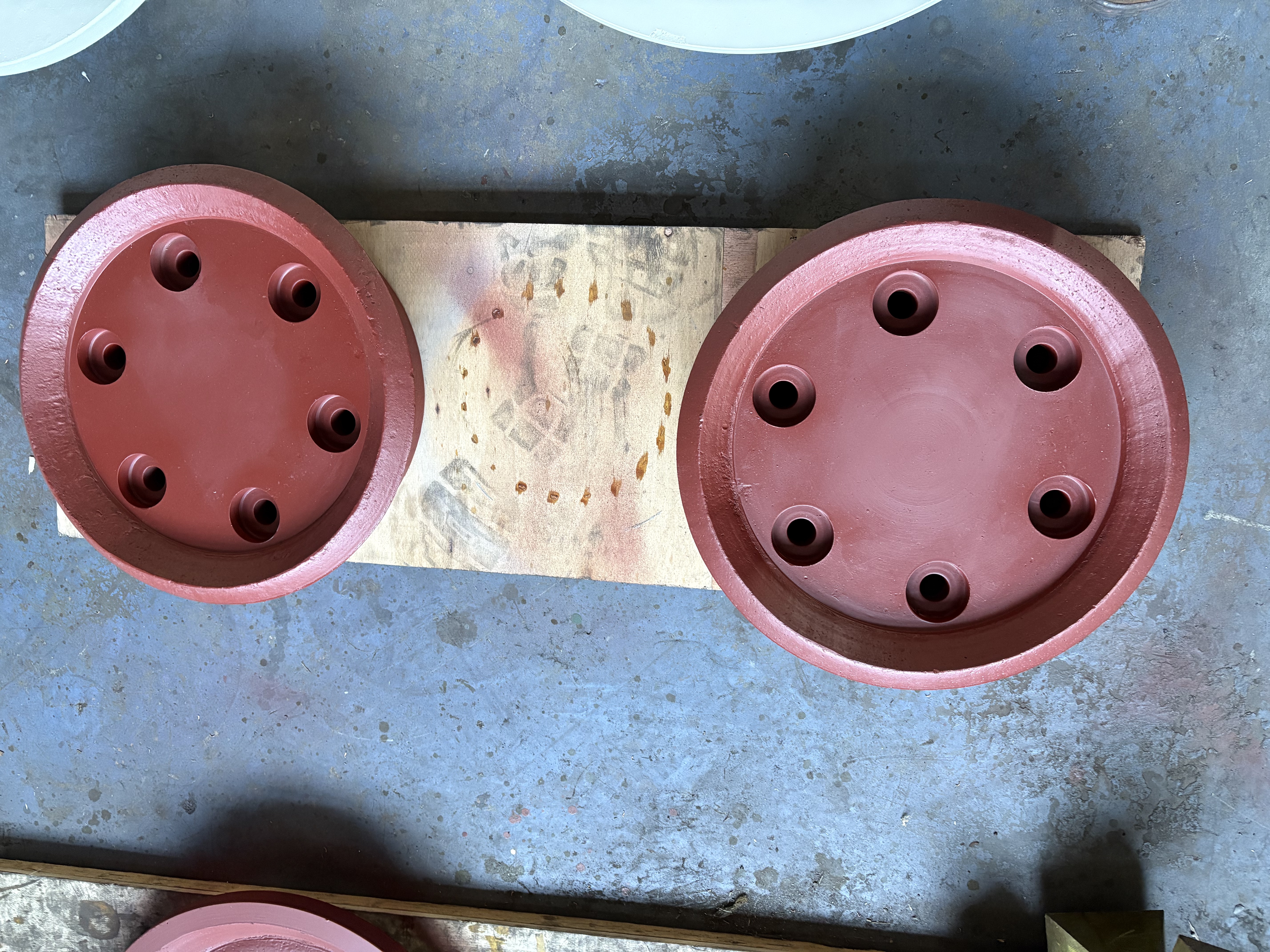

Cone Crusher Feed Cone
Brand :ZHUOYUE
Product origin :Shenyang, Liaoning, China
Delivery time :One week
Supply capacity :5,000 cases per year
Made from wear-resistant alloy materials with controlled heat treatment for reliable performance under continuous impact and abrasion.
Precision-machined to match the confirmed crusher model, drawing, or part number for accurate installation and stable operation.
Supports standard and non-standard sizes, OEM customization, and both small-batch and bulk production.
Strict inspections cover material, dimensions, machining, and performance, with inspection reports and material certificates available upon request.
4071
5598-2621
5598-2901
5598-3461
5598-4161
5598-4581
5598-1158
K1414.05.09
N65558321
Procurement Pain Points and Product Solutions:
Feed cone wear is not always uniform. Continuous impact and uneven material flow can cause localized wear on the working surface, reducing the service interval and making replacement timing difficult to predict.
The Solution: Wear-Focused Replacement
ZHUOYUE reviews the worn feed cone, wear pattern, crusher model and operating conditions before production. This information is used to confirm the replacement material, casting requirements and critical dimensions, helping address the actual wear condition rather than simply reproducing the original part.
Key results:
· Worn parts can be inspected as a reference for replacement production.
· Material grade and production requirements are confirmed according to the actual application.
· Critical dimensions are inspected against approved drawings or measurements before delivery.
· Inspection records and material documentation can be provided for traceability.
Technical parameters：
| Item | Detailed Parameters / Description |
|---|---|
| Material | High-manganese alloy steel / high-chromium wear-resistant cast steel; material grade and properties can be customized according to the crusher model and working conditions. Typical reference values: HB280–350; impact toughness ≥120 J/cm². |
| Manufacturing Process | Integral casting, precision machining and controlled heat treatment; the process is selected according to the confirmed material grade and part design. |
| Dimensional Accuracy | Critical dimensions are controlled according to approved drawings or confirmed measurements. For applicable machined surfaces, tolerance can reach ±0.02 mm and flatness ≤0.015 mm. |
| Specification Range | 50 kg–150 tons per piece, subject to the confirmed part design, casting requirements and production process. |
| Service Life | Up to 28% longer than comparable conventional products under specified test or application conditions. Actual service life varies according to feed material, impact conditions and operating parameters. |
| Applicable Feed Size | 5–300 mm reference range, subject to the crusher model, cavity configuration and actual feed conditions. |
| Quality Verification | Material grade, hardness, critical dimensions and machining requirements can be verified against the confirmed drawing, production specification or inspection requirements before delivery. |
Product Advantages:
1. Stable Feed Distribution & Structural Protection
The integrated feed cone structure provides a stable surface for incoming material, helping distribute feed more evenly around the crushing chamber while protecting the head nut and crushing head from direct impact.
2. Wear-Resistant Material for Demanding Conditions
High-manganese alloy steel and high-chromium wear-resistant cast steel are available according to the crusher model and working conditions, with controlled heat treatment for the required hardness and impact resistance. Under specified heavy-load conditions, service life can be up to 28% longer than comparable conventional products.
3. Precision Manufacturing & Verified Fit
Integral casting followed by precision machining controls critical mating dimensions, with applicable machined surfaces achieving tolerances of up to ±0.02 mm and flatness of ≤0.015 mm according to confirmed technical requirements.
4. Custom Production for Different Crusher Configurations
The feed cone can be manufactured from 50 kg to 150 tons per piece, with material, geometry and critical dimensions customized according to the crusher model, drawings, existing part or confirmed measurements.
Product Application:
ZHUOYUE Cone Crusher Feed Cones are supplied for replacement, maintenance and customized applications in cone crushing systems. The feed cone guides incoming material into the crushing chamber and forms part of the feed arrangement, so its configuration and wear condition should be considered together with the crusher model, feed material and operating conditions.
Mining & Ore Processing:
For cone crushers handling iron ore, copper ore, gold ore and other abrasive ores, where continuous impact and abrasion can gradually wear the feed cone. Material grade and replacement requirements can be confirmed according to the crusher model and actual service conditions.
Quarry & Aggregate Production:
For crushing granite, basalt, limestone, river gravel and other aggregate materials, where stable and evenly distributed feed is important for consistent crusher loading and wear development.
Secondary & Tertiary Crushing:
Suitable for cone crushers used in secondary, tertiary and fine-crushing stages, with the feed cone configuration matched to the specific crusher and cavity arrangement. Feed size and gradation should be confirmed before replacement, as unsuitable feed conditions can increase wear and affect crusher performance.
Mobile & Stationary Crushing Plants:
Available for both mobile and stationary crushing equipment, particularly for maintenance situations where the original feed cone is worn, damaged or requires replacement during a scheduled liner service.
Replacement & Retrofit Applications:
Suitable for aftermarket replacement and retrofit projects where the original drawing may be unavailable. The crusher model, reference part number, existing feed cone, photos, drawings or key measurements can be reviewed to establish the required replacement configuration.
ABOUT US:
Shenyang Zhuoyue Machinery Equipment Co., Ltd.
Located in the Shenyang Tiexi Economic and Technological Development Zone, Shenyang Zhuoyue Machinery Equipment Co., Ltd. specializes in the production of crusher wear components, forged parts, and precision-machined components for industrial applications.
Backed by a core team with more than 14 years of industry experience, we work with mining and crushing equipment requirements where dimensional accuracy, material performance, and reliable fitment are essential.
Our product range includes cone crusher dust covers, seal rings, wear parts, and custom-machined components. For replacement and customized parts, key dimensions and compatibility can be verified using the crusher model, OEM part number, technical drawing, or worn sample before manufacturing. This helps ensure that the finished component matches the customer's actual equipment requirements.
Production & Engineering Capabilities
Our manufacturing base covers approximately 4,000 square meters and is equipped for machining, forging, heat treatment, assembly, and quality inspection.
· Precision machining: Dozens of CNC machine tools for dimensional and surface machining
· Forging & heat treatment: Dedicated equipment for component forming and thermal processing
· Testing facilities: Physical and chemical testing instruments for material and production verification
· Maximum single-piece capacity: Up to 150 tons
· OEM/ODM: Manufacturing based on customer drawings, specifications, samples, or confirmed requirements
Technical Team & Production Resources
· R&D / Technical Personnel: 24
· Machining Lines: 10
· Welding Lines: 2
· Assembly Lines: 2
· Annual Production Capacity: 2,000 tons
The combination of engineering personnel, machining resources, and dedicated production lines allows us to handle both standard replacement components and customized industrial parts according to confirmed technical requirements.
Quality Inspection & Control
Quality control is carried out throughout the manufacturing process. Each Cone Crusher Feed Cone is inspected according to approved OEM drawings, material specifications, customer requirements, and ISO 8062-3:2023 for applicable casting dimensional and geometrical tolerances.
Inspection Process
1. Material & Casting Inspection
Verify the specified material grade and inspect the casting for visible cracks, shrinkage, excessive porosity, and other surface defects.
2. Dimensional Inspection
Measure critical dimensions, mounting interfaces, bore diameters, and overall dimensions against the approved drawing and applicable casting tolerances.
3. Machining Inspection
Check machined surfaces, fitting areas, and critical dimensions to ensure proper assembly and alignment.
4. Final Inspection
Conduct a final visual and dimensional check before shipment. Material certificates and dimensional inspection records can be provided when required.
Third-party inspection by SGS, BV, or a customer-appointed inspector can also be arranged upon request.
Serving International Markets
Our products are supplied to customers across Europe and the Americas, supporting overseas buyers with replacement parts and customized manufacturing requirements.
From initial drawing or sample verification to machining, inspection, and delivery preparation, we focus on maintaining clear technical communication and consistent production control throughout each order.
Q:What is your policy regarding large quantities orders or long-term purchases?
A:You can purchase as low as a single item but still enjoy the price benefits of bulk ordering and the comfort of long-term procurement.
Products available from stock: MOQ 1 piece (can be shipped directly from warehouse, no minimum number of orders required).
Custom made non-standard parts: MOQ 30-50 pieces/batch (based on process complexity, flexible MOQ is available).
Long-term framework deal: Once a year purchase amount of 5 Million RMB and above is confirmed, you can sign off on an annual pricing lock contract. Throughout the year, prices will be stable and not influenced by steel market changes, and you will receive the advantage of "rolling material preparation" - in short, we will reserve custom-made blanks for you ahead of time, which will slash your order delivery cycle from normal 30 days to 7-10 days only.
Q:Which type of packaging does your company mostly use?

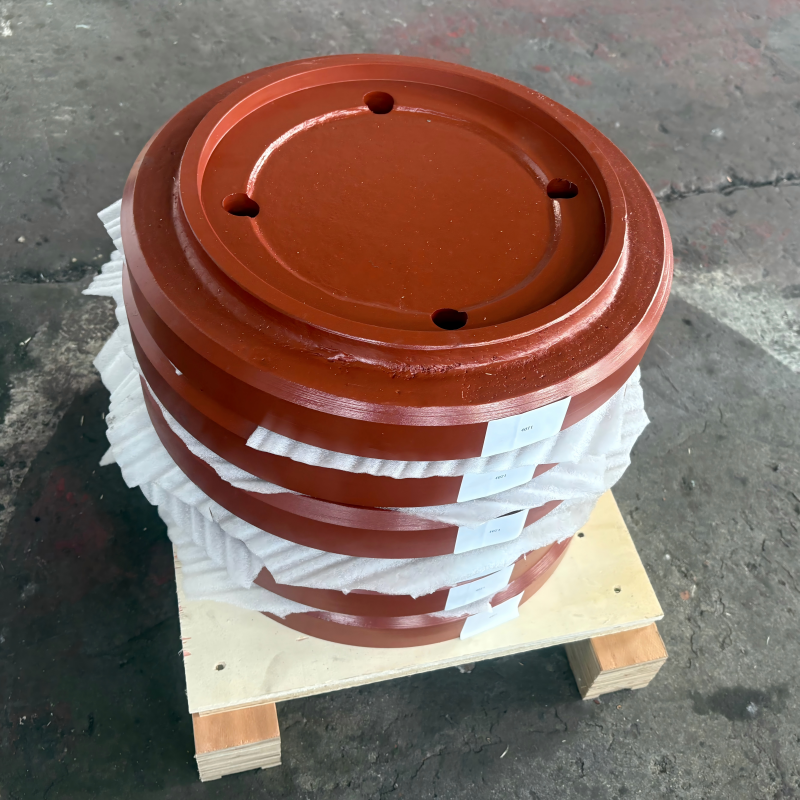

A: Most of the time we package small items into wooden cases. Large parts and machine sets are secured within steel frames, foam is completely enclosed and water proof film is added to protect the goods during transportation from bumps and rust by rain water.
Q:Which kinds of freight service or transportation do you support?
A: We can offer the EXW and the FOB terms of delivery.
