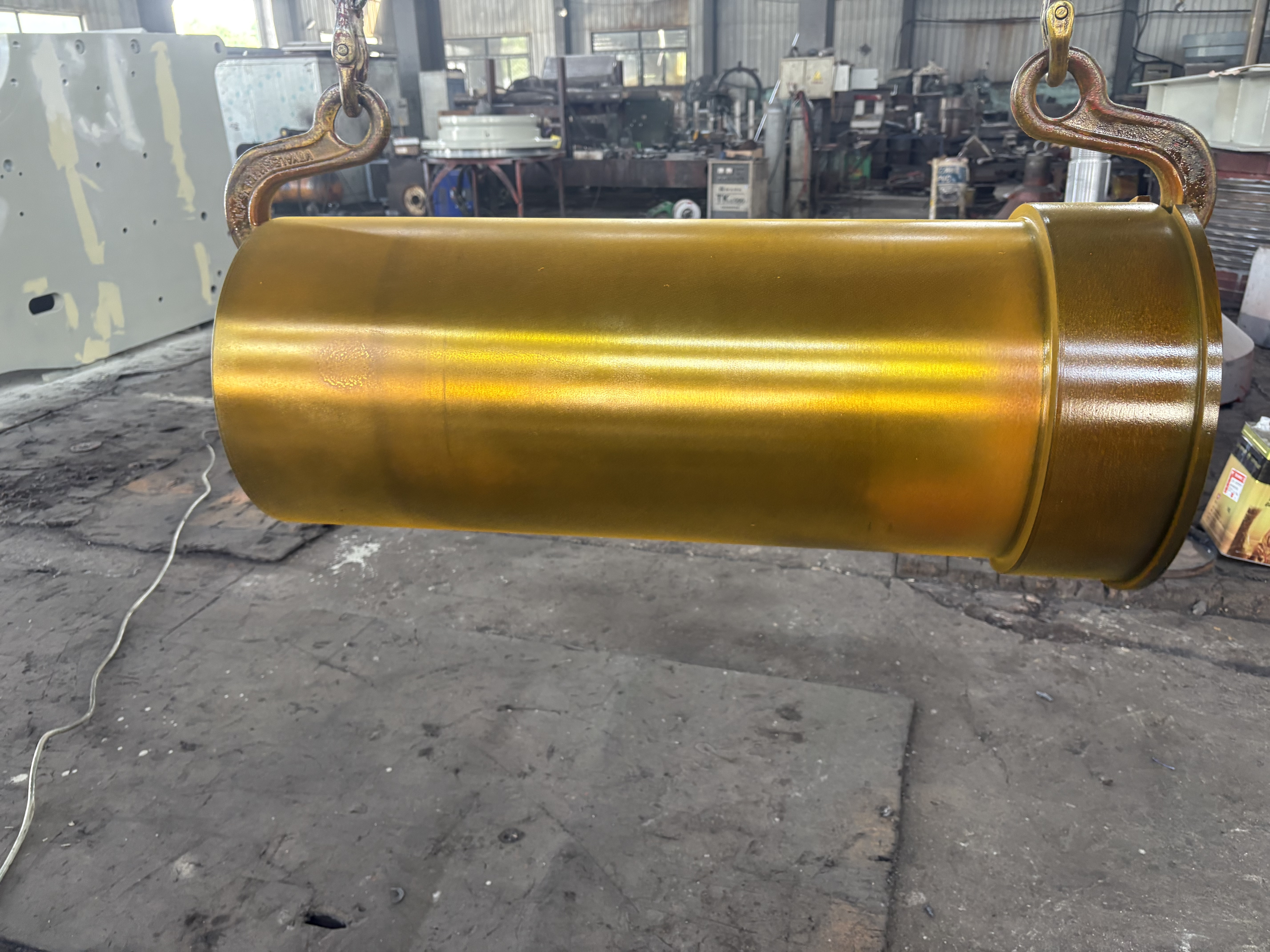

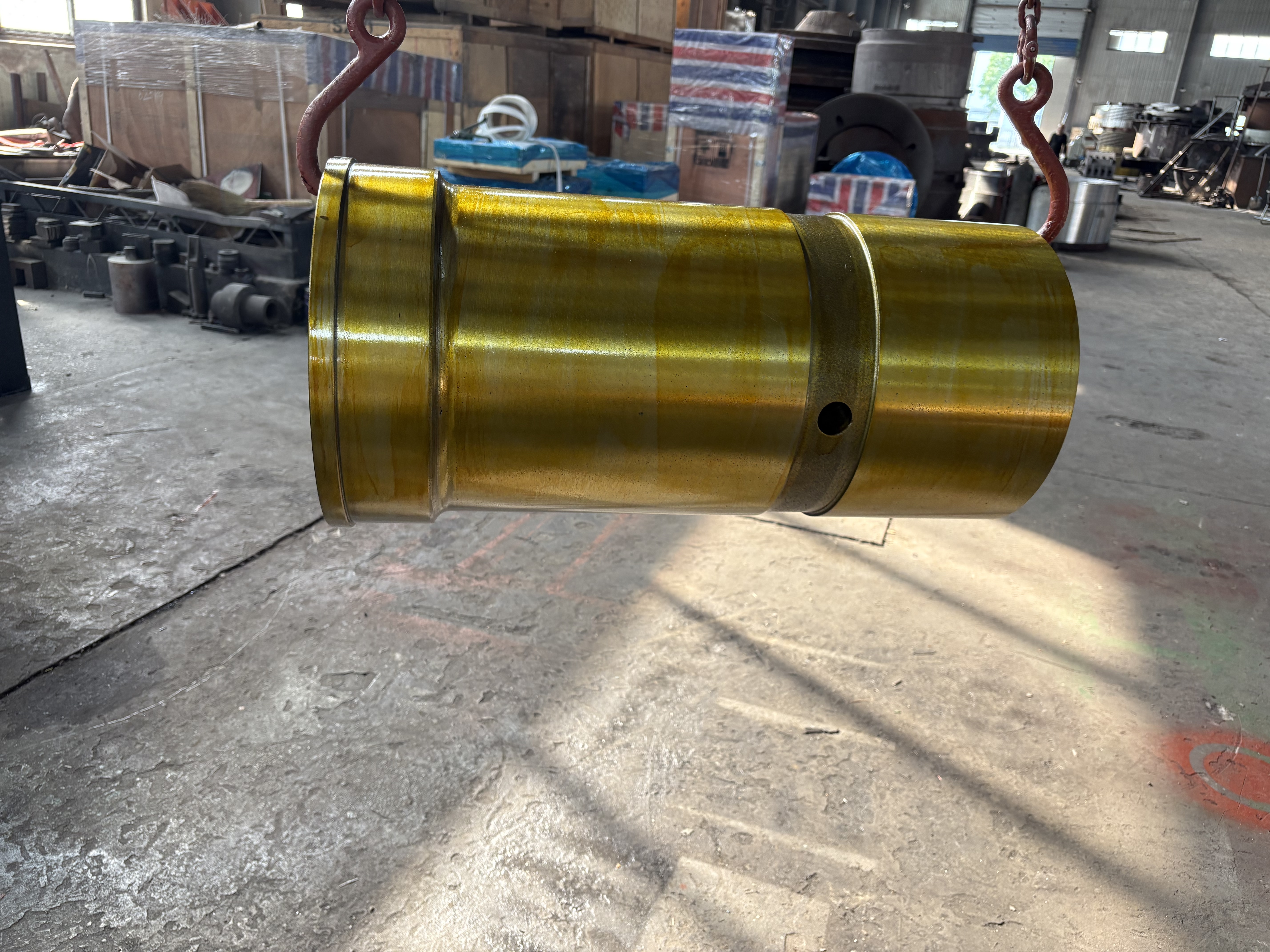

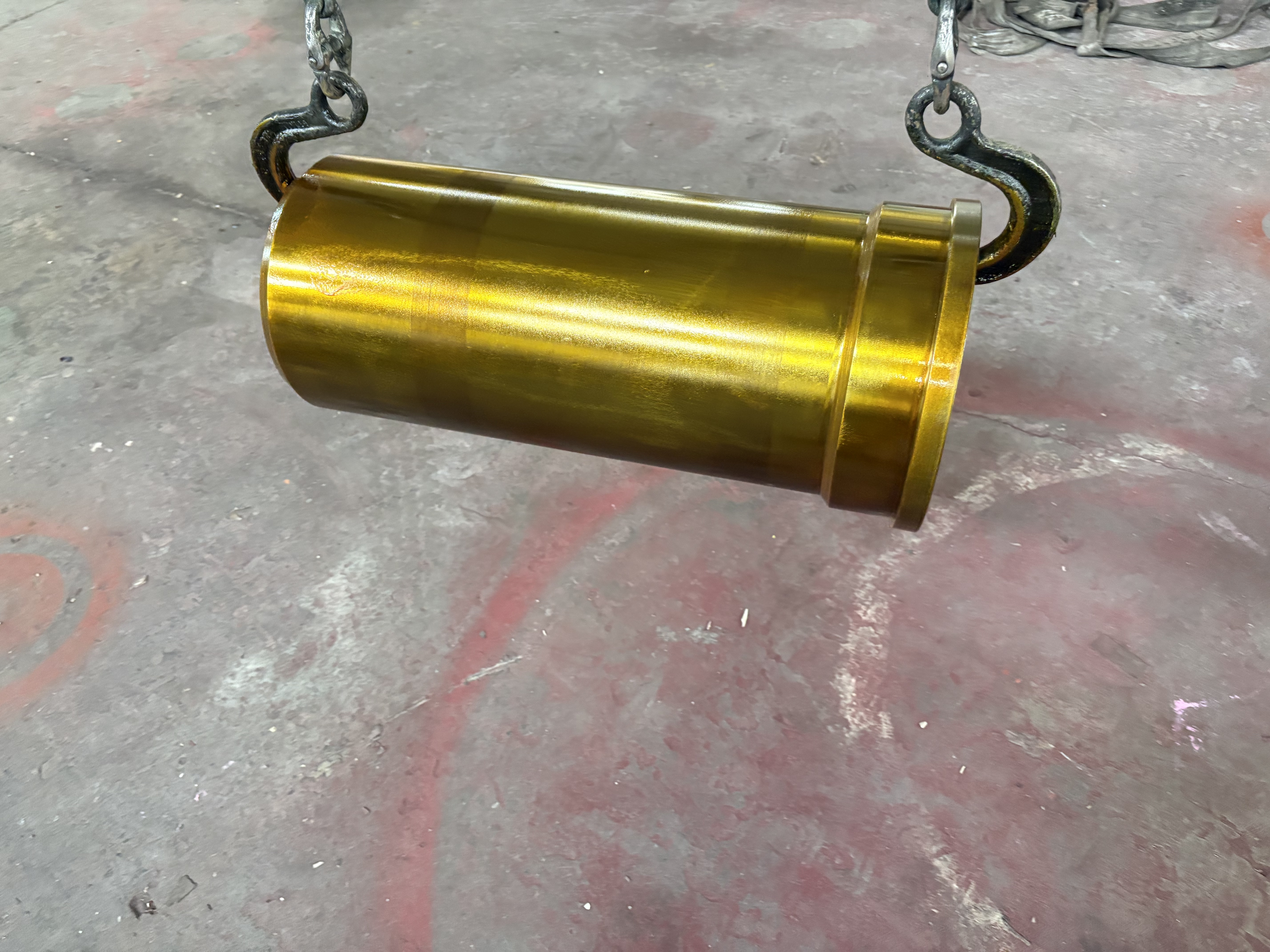

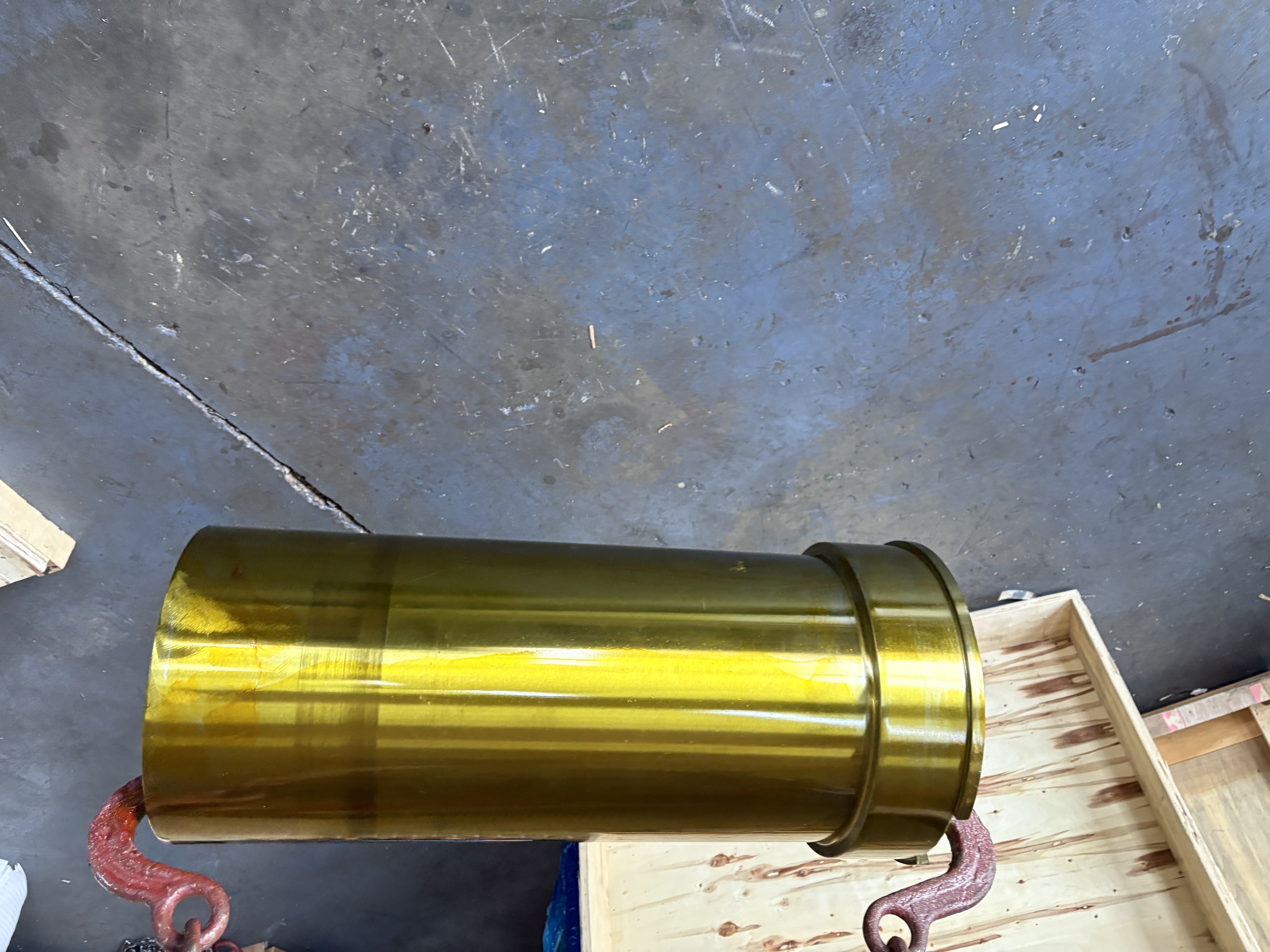

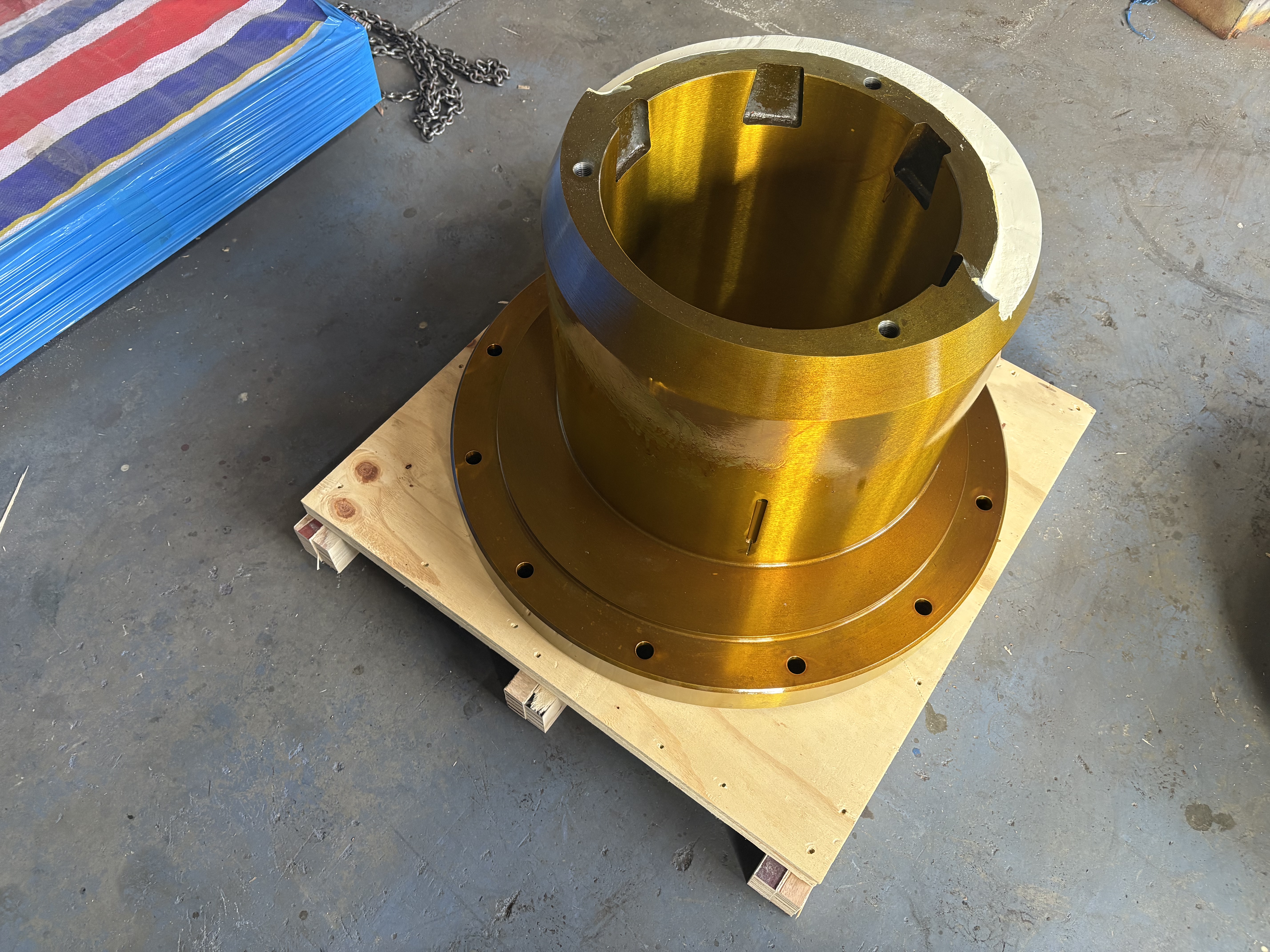

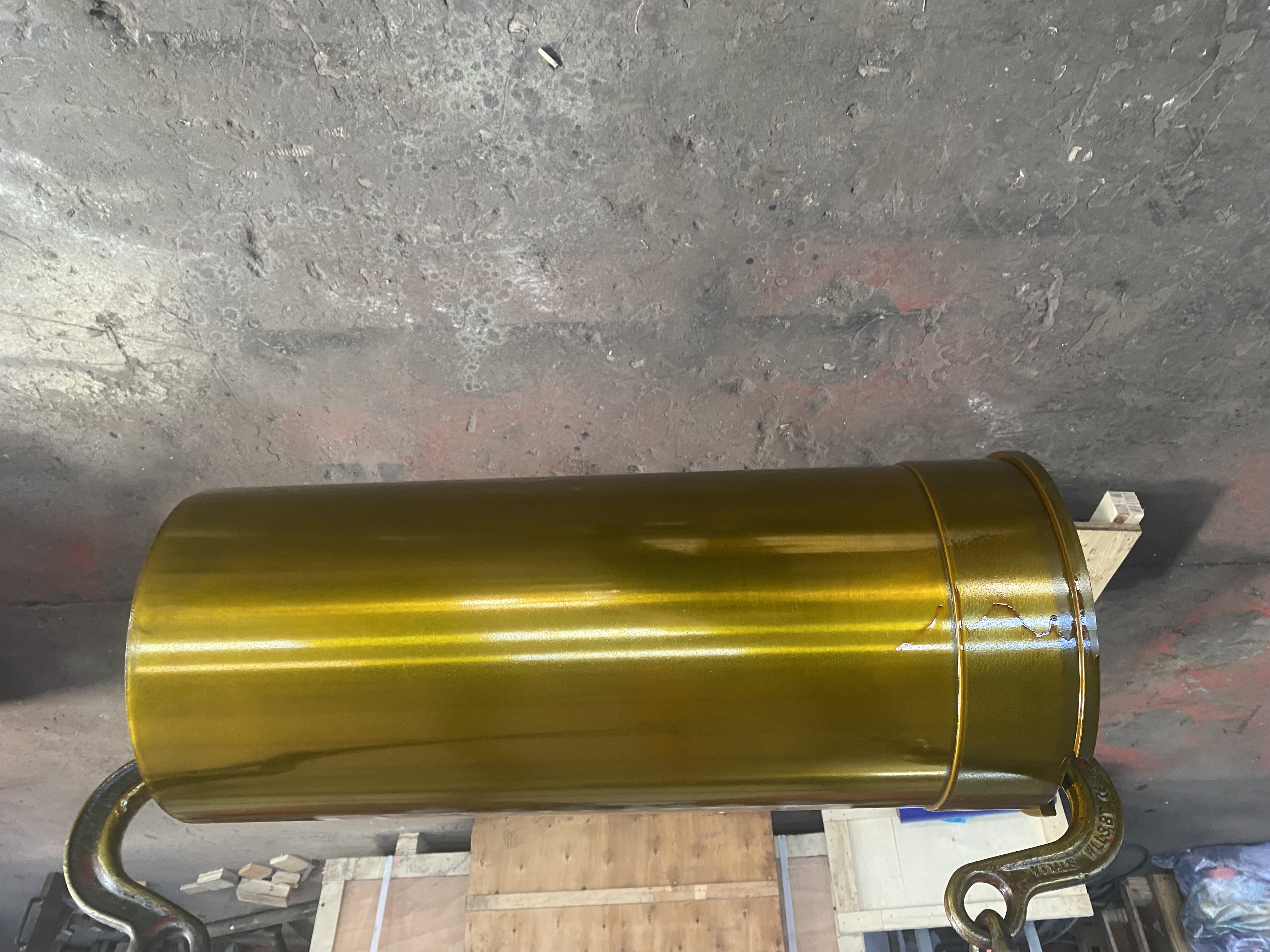

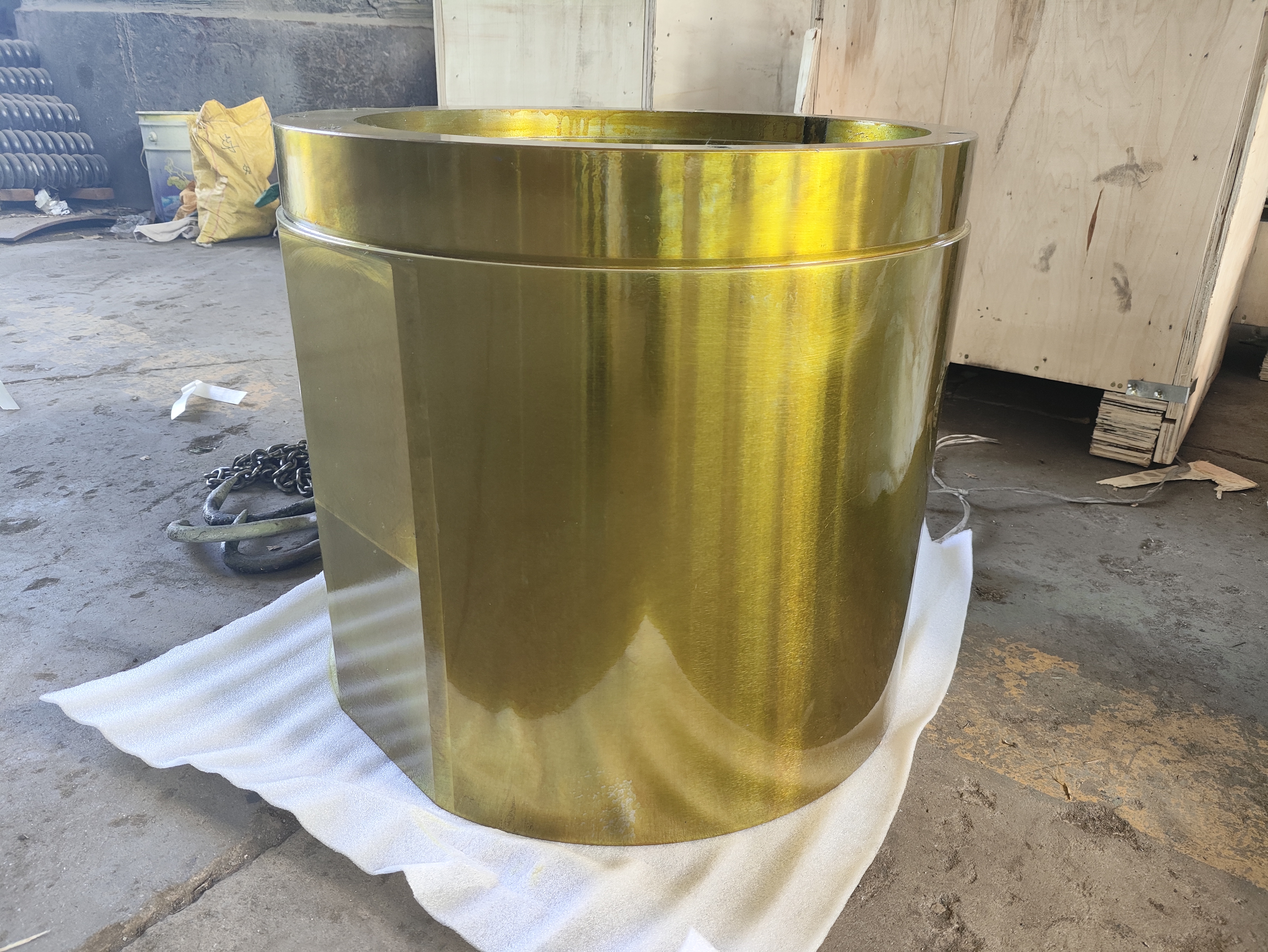

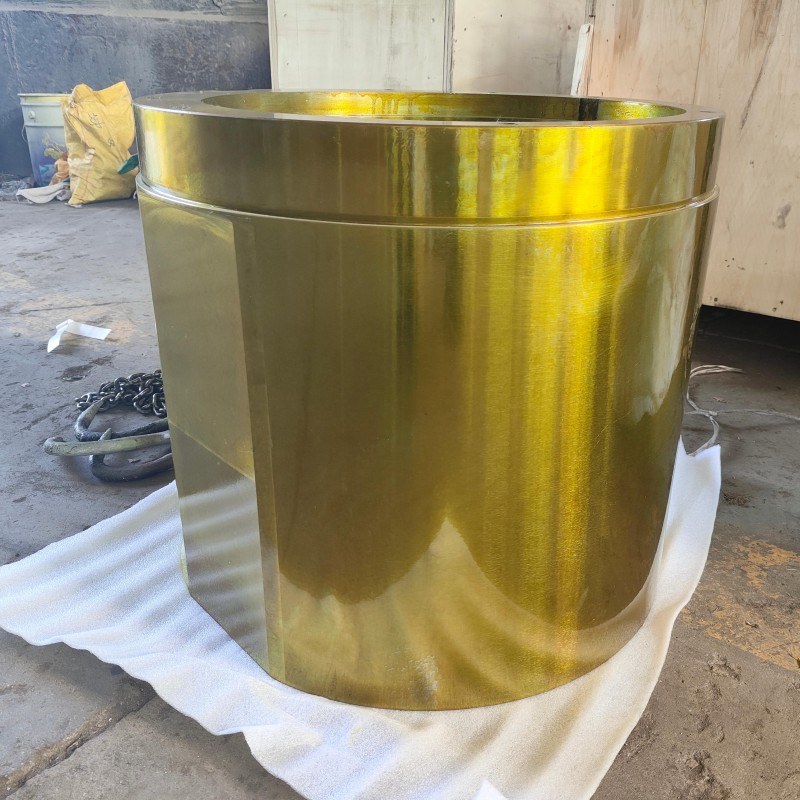

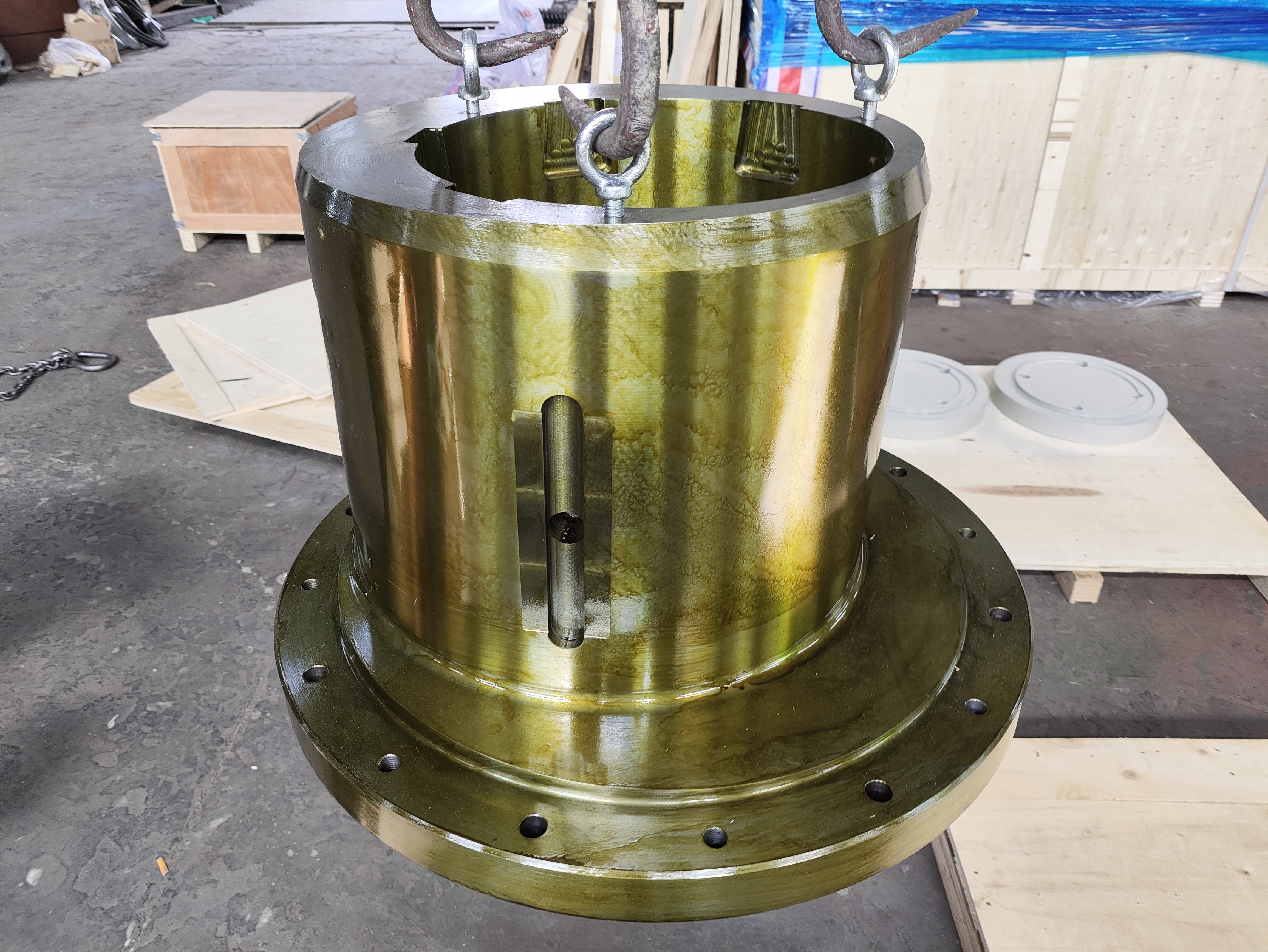

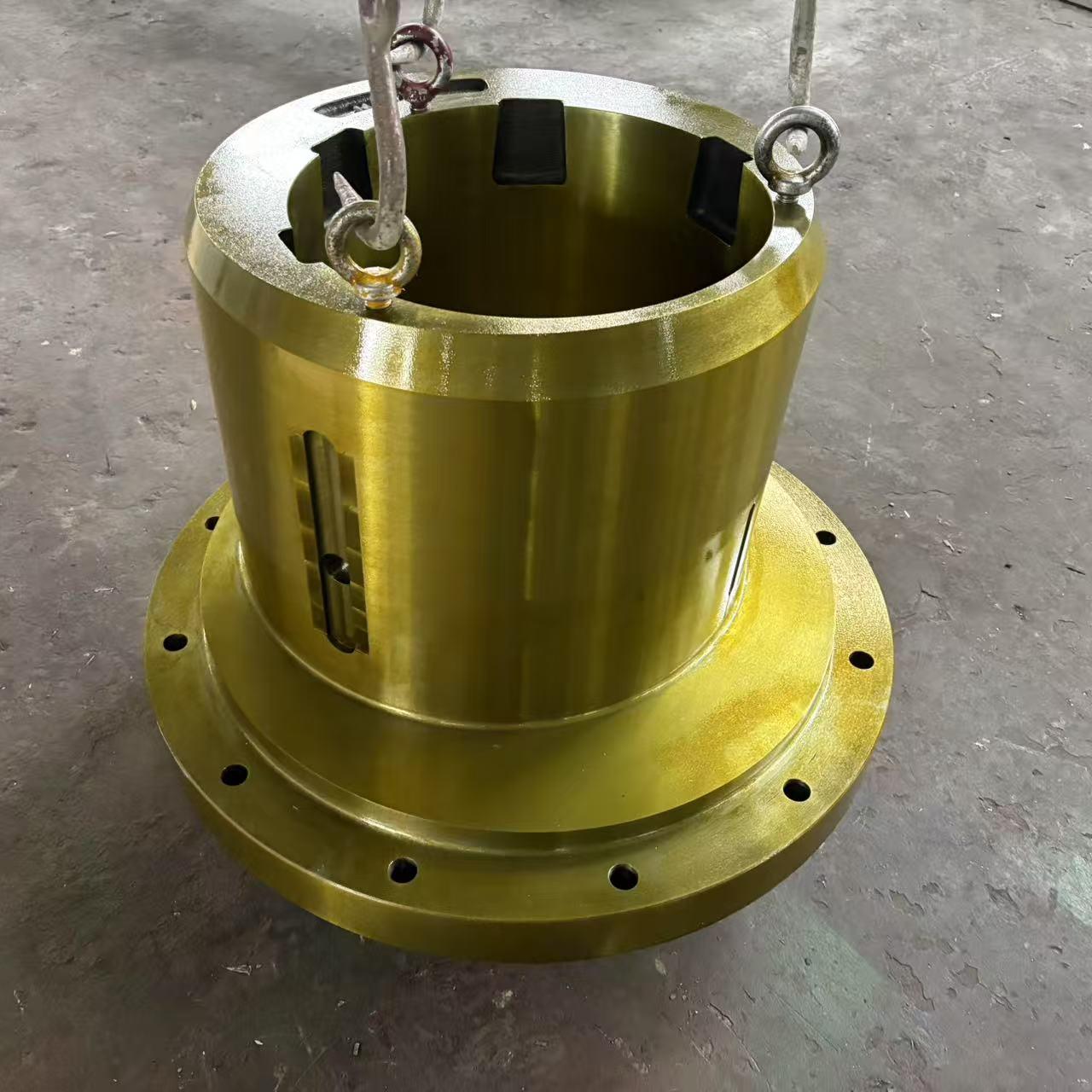

Cone Crusher Eccentric

442.8068-01

3011

3113-7902

3113-8401

3113-8751

3114-0151

3114-0153

3113-6180

3114-3402

7043358008

K1414.03.02

N98000223

Pain Point & Technical Solution

In high-tonnage mining and aggregate processing, premature eccentric sleeve wear or sudden bushing failure is rarely an isolated defect—it is frequently caused by improper concentricity, sub-standard metallurgical density, or inaccurate oil-film clearances in replacement eccentrics.

When an eccentric suffers from microscopic runout or thermal deformation under heavy crushing loads, uneven stress distribution quickly destroys mating bronze bushings, scorches countershaft bearings, and forces sudden production halts. For large-scale quarry operators processing thousands of tons daily, a single unexpected eccentric breakdown can cost tens of thousands of dollars per hour in lost throughput and emergency repairs.

Solution: Full-Forging Integrity with High-Precision CNC Machining (IT6–IT7 Class)

ZHUOYUE eliminates this root failure mechanism by manufacturing heavy-duty cone crusher eccentrics engineered specifically for dimensional stability under extreme stress:

Forged Structural Density: Utilizing heavy hydraulic forging processes on high-grade alloy steel, our forged blanks eliminate internal porosity, micro-cracks, and casting defects that cause premature structural fatigue.

Controlled Concentricity & Runout: Machined on heavy-duty vertical CNC centers, our eccentrics maintain precise geometric alignment between inner and outer diameters ($\le$0.02 mm), eliminating localized friction hotspots on mating bushings.

Precision Oil-Clearance Calibration: Critical bore tapers, oil channels, and journal tolerances are precision-calibrated to preserve dynamic oil-film lubrication, drastically reducing operating temperatures under maximum crushing pressure.

OEM vs. ZHUO YUE value comparison

Technical Parameter Table (Verified Specifications)

Every eccentric component is manufactured strictly in accordance with international metallurgical and mechanical engineering standards:

Disclaimer: ZHUOYUE is an independent manufacturer of heavy replacement parts. OEM brand names, model designations, and part numbers are used strictly for identification and cross-reference purposes.

Key Product Advantages

Heavy-Duty Wear Resistance: Forged alloy structures offer superior impact strength, preventing wall collapse or structural cracking during uncrushable tramp iron events.

Optimized Dynamic Balance: High-precision machining eliminates rotational vibration at high RPMs, protecting the main drive assembly and extending countershaft bearing lifespan.

Versatile Technical Compatibility: Direct fitment confirmed against OEM part numbers, technical drawings, physical samples, or site measurement data.

Extended Service Life: Smooth surface finishes and calibrated oil-film passages cut repair frequency and total cost of ownership (TCO) over multi-year crushing operations.

Industry Applications

ZHUOYUE replacement eccentrics are built for heavy-duty crushing operations across harsh industrial environments:

Metallic Mining Operations: Iron ore, copper, gold, and nickel mines running continuously under high crushing forces.

Aggregate & Quarrying Plants: Granite, basalt, limestone, and river pebble processing lines requiring consistent material gradation.

Infrastructure & Construction Engineering: Large-scale highway, high-speed rail ballast, and hydroelectric dam aggregate production facilities.

Equipment Refurbishment & Repair: Replacement of worn or unavailable original parts in legacy crushing equipment.

Company Advantages & R&D Strength

Core Team with 10+ Years Industry Experience: Our core engineering team brings over 10 years of experience in mining machinery and crusher replacement parts, covering process confirmation, manufacturing, and quality inspection for structural components, wear parts, and custom machined parts.

Dedicated Technical R&D Strength: Backed by 24 technical and R&D engineers who perform rigorous CAD/CAM modeling, tolerance verification, and structural analysis before casting and machining begin.

Heavy CNC Machining Capabilities: Equipped with heavy-duty CNC vertical lathes, horizontal boring centers, and specialized grinding machinery, supported by full-process dimensional inspection and trial assembly workshops.

Global Export Reach: Our products are widely exported to major mining and construction sites across Europe, the Americas, Central Asia, and the Middle East, earning long-term trust from international contractors and mine operators.

Buyer Assurance & Quality Guarantee (For New Partners)

To eliminate procurement risk and ensure 100% fitment on site, ZHUOYUE offers comprehensive quality verification procedures:

Third-Party Inspection Welcomed: We fully support independent factory audits and pre-shipment inspections by SGS, Bureau Veritas (BV), TÜV, or customer-designated inspection teams.

100% Dimensional & Material Traceability: Every eccentric assembly is shipped with a complete quality archive:

Material Test Report (MTR to EN 10204 3.1)

Dimensional Inspection & CMM Tolerance Sheet (Bore, Taper, Concentricity & Runout)

Ultrasonic Flaw Detection (UT) & Magnetic Particle Testing (MT) Certificate

Heat Treatment & Hardness Certification

Zero-Binding Fitment Guarantee: Guaranteed zero-interference installation. If any dimensional mismatch occurs during site assembly under standard procedures, ZHUOYUE provides immediate replacement parts or full technical support.

 Export-Grade Packaging & Logistics Protection

Heavy alloy forged components require robust rust-prevention and impact-proof protection during ocean or multimodal land freight:

Multi-Layer Rust Prevention: Heavy-duty VCI (Vapor Corrosion Inhibitor) anti-rust oil coating applied to all machined precision surfaces, wrapped in vacuum moisture-proof film.

Impact-Resistant Packaging: Encased in steel-reinforced, heavy-duty fumigation-free wooden cases designed for forklift handling and container loading.

Journal & Flange Protection: Critical bearing surfaces, internal bore tapers, and oil channels are fitted with custom protective covers to eliminate transit scratches or impact damage.

Flexible Shipping Options: Full support for FOB, CIF, CFR, DAP, and DDP shipments to simplify customs clearance for international mining clients.

Strict Quality Inspection Standards

To ensure every eccentric component meets international industry standards before leaving the factory, ZHUOYUE enforces a standardized multi-stage quality control process:

Raw Material Metallurgical Analysis: Spectral analysis and material grade verification for every forged billet before machining.

Ultrasonic & Non-Destructive Flaw Detection (UT/MT): 100% internal defect checks to guarantee zero air holes, cracks, or slag inclusions inside forged blanks.

CMM Dimensional Tolerance Calibration: Precision CMM checks verifying bore sizes, tapers, keyways, oil channels, and journal tolerances.

Surface Hardness & Metallurgical Inspection: Verified hardness depth and value checks (HB/HRC) post-heat treatment.

High-Load Dynamic Balance & Trial Assembly: Rotational balance simulations to guarantee smooth dynamic clearance and zero runout upon installation.

 Frequently Asked Questions (FAQ)

Q1: What is the minimum order quantity (MOQ) and sample policy?

Our MOQ is 1 piece. We welcome trial/sample orders from mine operators and equipment maintenance facilities to verify our dimensional precision and metallurgical quality before placing bulk orders.

Q2: What is the warranty policy for replacement cone crusher eccentrics?

All eccentric assemblies manufactured by ZHUOYUE come with a 12-month quality warranty covering manufacturing defects, material integrity, and dimensional accuracy under standard operating conditions.

Q3: What is your standard delivery lead time?

Standard custom manufacturing takes 30 days. For long-term framework partners with rolling inventory supply agreements, delivery lead times are reduced to 7–10 business days utilizing pre-machined forged blanks.

Q4: Can you manufacture an eccentric without original OEM drawings?

Yes. If original technical drawings are unavailable, our engineering team provides standardized 3D scanning measurement templates and step-by-step site measurement guides. We generate precise 3D CAD models based on your site measurements, 3D laser scans, or physical samples.

Q5: How do you guarantee the replacement eccentric fits my crusher perfectly?

Fitment is verified against crusher model specifications, OEM part numbers, technical drawings, or physical sample measurements prior to production. Mating bushing tapers and oil-clearance tolerances are double-checked to eliminate site binding risks under our Zero-Binding Guarantee.

Q6: What quality inspection certificates are delivered with the shipment?

Each shipment includes a complete Quality Documentation Package: Material Test Report (MTR EN 10204 3.1), Dimensional CMM Inspection Sheet, Heat Treatment Certificate, and NDT/UT Flaw Detection Certificate. Third-party inspection reports (SGS/BV) are provided upon request.

Q7: What trade and payment terms do you support?

We support flexible Incoterms including EXW, FOB, CFR, CIF, DAP, and DDP. Payment terms can be discussed based on order volume and long-term partnership agreements.
